HXY MOSFETDatasheet (PDF)

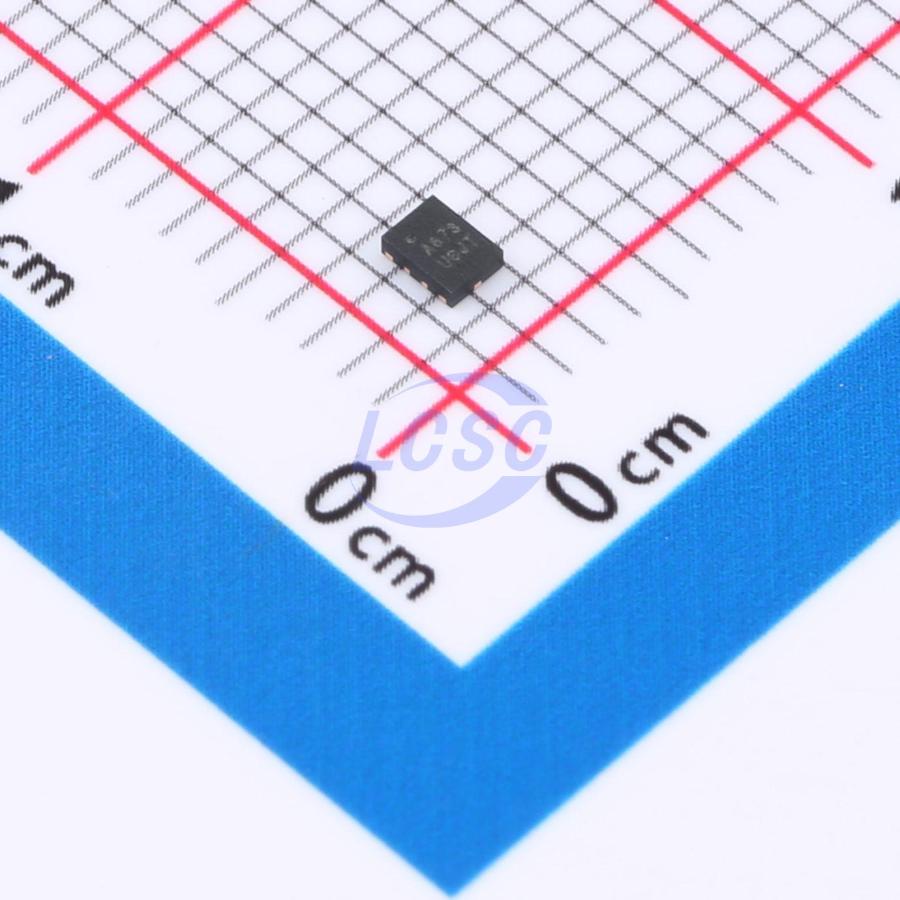

TS3USB221ARSER-HXY
2.5V~5.5V 10Ω 1.1GHz 2 2:1 UQFN-10(1.5x2) Analog Switches - Special Purpose RoHS
UQFN-10(1.5x2)ROHS CompliantActive
Dual 2:1 USB2.0 Mux/De-Mux
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- TS3USB221ARSER-HXY
- Store part #
- C49108275
- Package / case
- UQFN-10(1.5x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C49108275
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.40 | ₹162.00 |
| 50+ | ₹25.51 | ₹1,275.50 |
| 150+ | ₹22.56 | ₹3,384.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 3,000+ | ₹17.23 | ₹51,690.00 |
| 6,000+ | ₹16.25 | ₹97,500.00 |
5 × ₹32.40
₹162.00
excl. GST
₹191.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS3USB221ARSER-HXY
₹162.00 for 5 + GST
Specifications
- Turn-on time
- 20us
- Turn-off time
- 1.2us
- Voltage - Supply
- 2.5V~5.5V
- Ron
- 10Ω
- -3dB Bandwidth
- 1.1GHz
- Number of Channels
- 2
- Switch Circuit
- 2:1
- Propagation Delay (tpd)
- 200ps
- Operating Temperature
- 0℃~+85℃
- Features
- Fault protection;Bidirectional analog channel;Power-off isolation
- Applications
- USB;Cellular;Computer
- Con
- 4pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The TS3USB221ARSER is a bidirectional, low-power, dual-port high-speed USB 2.0 analog switch with integrated protection, designed for USB Type-C systems. The device is configured as a dual 2:1 or 1:2 switch, optimized for USB 2.0 DP/DM line use in USB Type-C systems. Its integrated C0+/- pin overvoltage protection can withstand voltages up to DC 30V, and features an auto-shutdown circuit to protect system components downstream of the switch. The GPIO control logic for SEL and _EN is 1.8V compatible. Housed in a lead-free, halogen-free QFN1520 package, the device is ideal for mobile and space-constrained applications.
Applications
- Any application using USB Type-C or Micro-B connectors
- Mobile phones, tablets, and laptops
Key features
- Pin-compatible with FSUSB42UMX, NX3DV42GU, DIO5000, PI3USB4000, SGM7227YU
- Supply voltage range: 2.5 V to 5.5 V
- Differential 2:1 or 1:2 switch/multiplexer
- C0+/- ports with overvoltage protection up to DC 30V
- C0+/- ports with IEC 64000-4-5 surge protection, no external TVS required: ±30V
- System-side clamp voltage pulse below 9V, duration less than 200nS
- Power-off protection when VDD = 0 V
- Typical low on-resistance: 10Ω
- Insertion loss: -1dB@200MHz, -2dB@650MHz, -3dB@1GHz
- Typical on-capacitance: 4.8pF
- 1.8V-compatible logic input
- Standard operating temperature range: 0°C to 85°C
