TECH PUBLIC

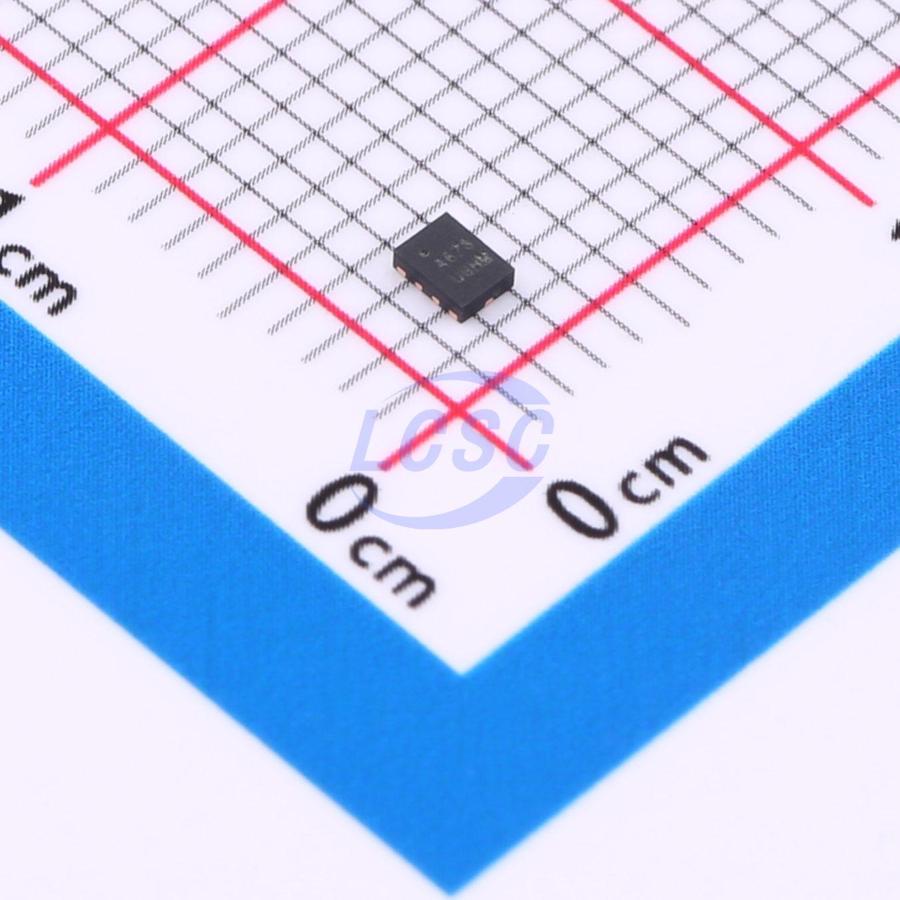

TS3USB221RSER-TP

2/4 2.5V~5.5V 13uA 200ps@3.3V,0pF QFN-10L(1.5x2) Signal Switches, Multiplexers, Decoders

QFN-10L(1.5x2)RoHSActive

High-Speed USB 2.0 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable

Manufacturer: TECH PUBLIC
Manufacturer part #: TS3USB221RSER-TP
Store part #: C48543272
Package / case: QFN-10L(1.5x2)
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,550 in stock

#C48543272

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹32.65	₹163.25
50+	₹25.44	₹1,272.00
150+	₹22.35	₹3,352.50
500+	₹18.50	₹9,250.00
3,000+	₹16.78	₹50,340.00
6,000+	₹15.74	₹94,440.00

Quantity (min 5, multiples of 5)

5 × ₹32.65

₹163.25

excl. GST

₹192.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS3USB221RSER-TP

₹163.25 for 5 + GST

Specifications

Number of Channels: 2/4
Voltage - Supply: 2.5V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 13uA
Propagation Delay: 200ps@3.3V,0pF
Function: Overcurrent Protection;Power-off protection;Break-before-make function

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

A high-bandwidth switch designed for high-speed USB 2.0 signal switching in mobile phones and consumer applications, such as mobile phones, digital cameras, and laptops with hubs or controllers featuring limited USB I/O. The wide bandwidth (1.1 GHz) of this switch allows signals to pass through with minimal edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional with minimal or no attenuation of high-speed signals at the outputs. It is designed for low inter-bit skew and high inter-channel noise isolation, and is compatible with various standards such as high-speed USB 2.0 (480 Mbps).
