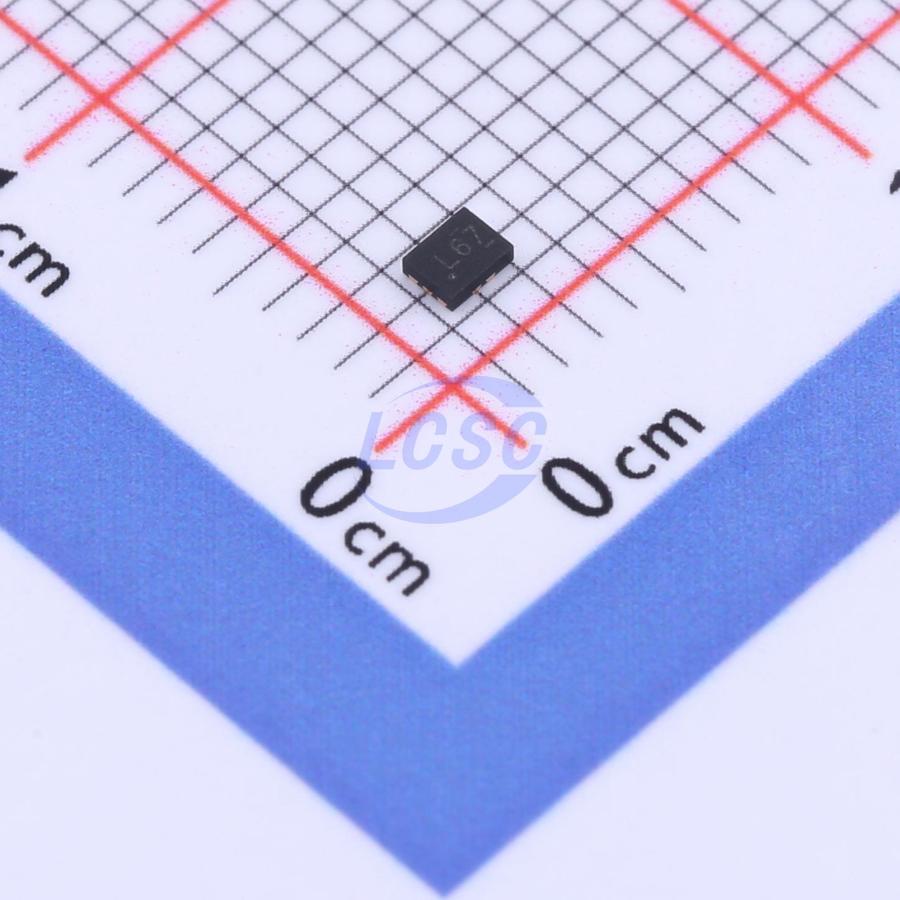

TS3USB30RSWR

The TS3USB30 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (955 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).

Applications

• Routes Signals for USB 1.0, 1.1, and 2.0
• Mobile Industry Processor Interface (MIPI) Signal Routing

Key features

• VCC Operation at 3 V and 4.3 V
• 1.8-V Compatible Control-Pin Inputs
• IOFF Supports Partial Power-Down-Mode Operation
• Ron = 10 Ω Maximum
• ΔRon < 0.35 Ω Typical
• Cio(ON) = 7 pF Typical
• Low Power Consumption (1 μA Maximum)
• ESD Performance Tested Per JESD 22: 6000-V Human Body Model (HBM) (A114-B, Class II), 1000-V Charged-Device Model (C101), 250-V Machine Model (A115-A)
• –3-dB Bandwidth = 955 MHz Typical
• Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)
