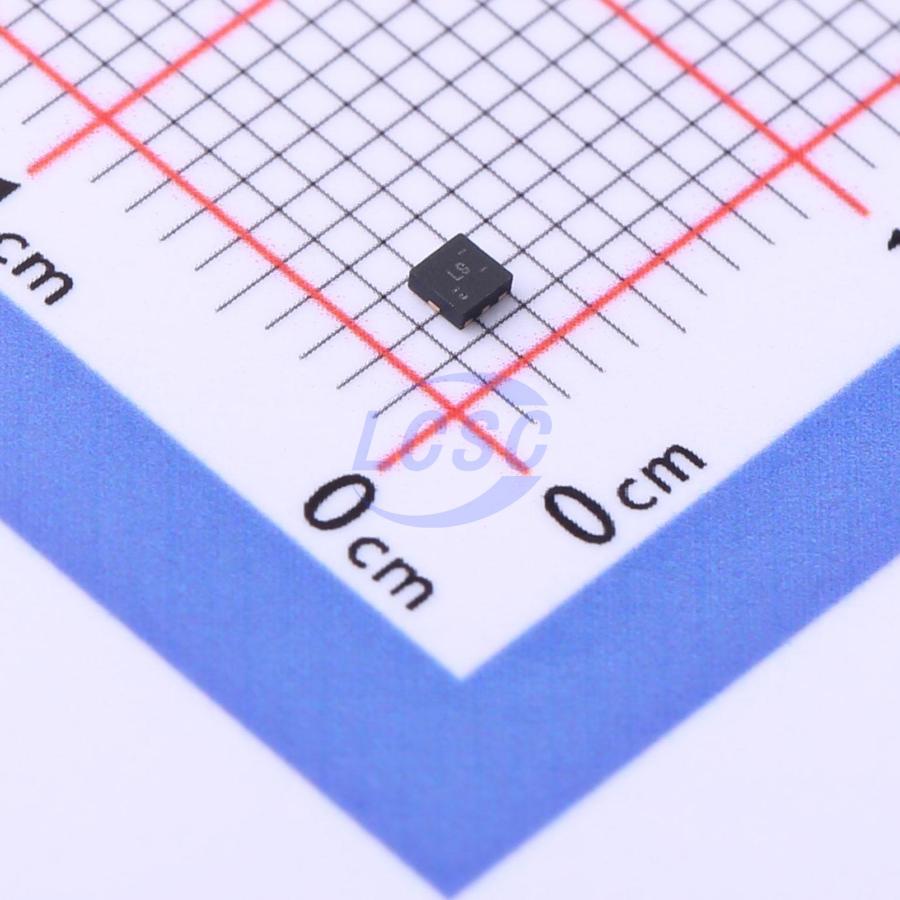

TS3USB31RSER
3V~4.3V 1.22GHz 6Ω 1 1:1 UQFN-8(1.5x1.5) Analog Switches - Special Purpose RoHS
UQFN-8(1.5x1.5)ROHS3 CompliantActive
TS3USB31 1:1 SPST High-Speed USB 2.0 (480-Mbps) Bus Isolation Switch With Single Enable
- Manufacturer
- TI
- Manufacturer part #
- TS3USB31RSER
- Store part #
- C2649441
- Package / case
- UQFN-8(1.5x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,041 in stock
#C2649441
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.32 | ₹66.32 |
| 10+ | ₹58.93 | ₹589.30 |
| 30+ | ₹55.24 | ₹1,657.20 |
| 100+ | ₹51.53 | ₹5,153.00 |
| 500+ | ₹44.57 | ₹22,285.00 |
| 1,000+ | ₹43.49 | ₹43,490.00 |
1 × ₹66.32
₹66.32
excl. GST
₹78.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS3USB31RSER
₹66.32 for 1 + GST
Specifications
- Turn-on time
- 30ns
- Turn-off time
- 25ns
- Voltage - Supply
- 3V~4.3V
- -3dB Bandwidth
- 1.22GHz
- Ron
- 6Ω
- Number of Channels
- 1
- Propagation Delay (tpd)
- 250ps
- Switch Circuit
- 1:1
- Operating Temperature
- -40℃~+85℃
- Features
- Bidirectional analog channel;Power-off isolation
- Con
- 6pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The TS3USB31 is a 1:1 SPST high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals. This device comes in a small UQFN package for use in a handset or consumer applications, such as cell phones, digital cameras, and notebooks with hubs. The wide bandwidth (750 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
Applications
- Bus Isolation for USB 1.0, 1.1, and 2.0
Key features
- VCC Operation at 3 V and 4.3 V
- 1.8-V Compatible Control-Pin Inputs
- IOFF Supports Partial Power-Down Mode Operation
- ron = 10 Ω Maximum
- Δron < 0.35 Ω Typical
- Cio(ON) = 6 pF Typical
- Low Power Consumption (1 μA Maximum)
- ESD Performance Tested Per JESD 22: 6000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101), 250-V Machine Model (A115-A)
- Wide –3-dB Bandwidth = 1220 MHz Typical
- Packaged in 8-Pin TQFN (1.5 mm × 1.5 mm)
