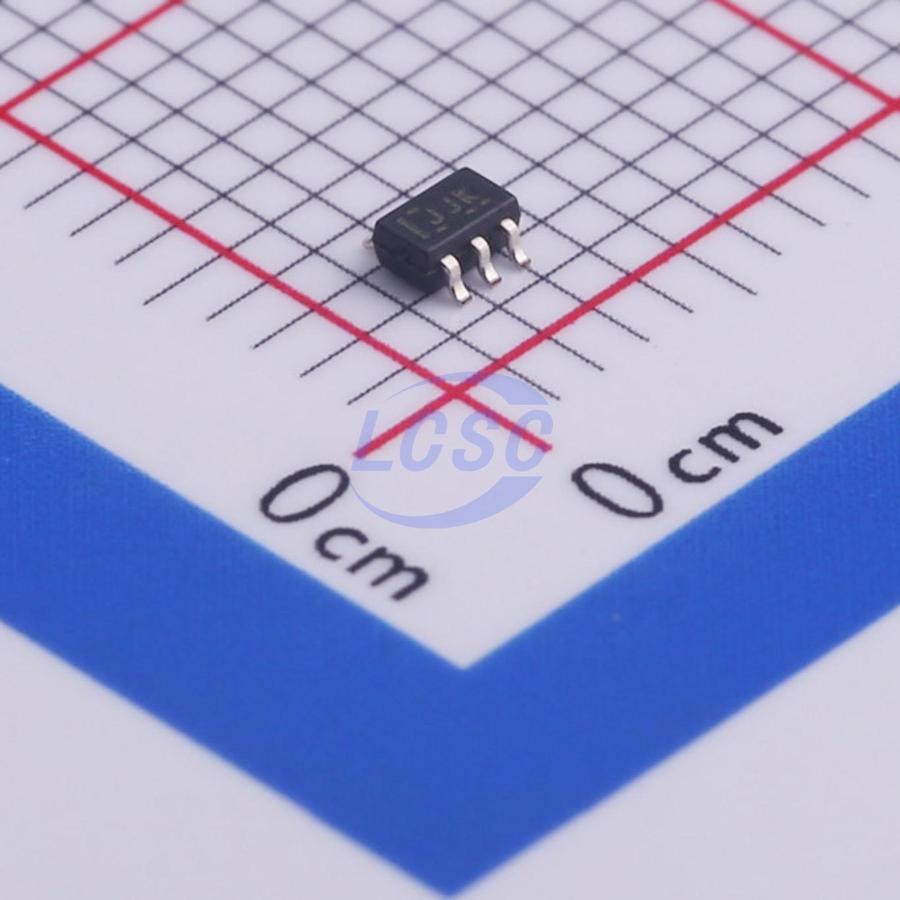

TS5A3159ADCKR

The TS5A3159A device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers low on-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.

Applications

• Cell Phones
• PDAs
• Portable Instrumentation Audio and Video Signal Routing
• Low-Voltage Data Acquisition Systems
• Communication Circuits
• Modems
• Hard Drives
• Computer Peripherals Wireless Terminals and Peripherals

Key features

• Specified Break-Before-Make Switching
• Isolation in Power-Down Mode, V₊ = 0
• Terminal Compatible With TS5A3159 Device
• Low ON-State Resistance (1 Ω)
• Control Inputs are 5.5-V Tolerant
• Low Charge Injection
• Excellent On-State Resistance Matching
• Low Total Harmonic Distortion (THD)
• 1.65-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA
• Per JESD 78, Class II
• ESD Performance Tested Per JESD 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
