RUNICDatasheet (PDF)

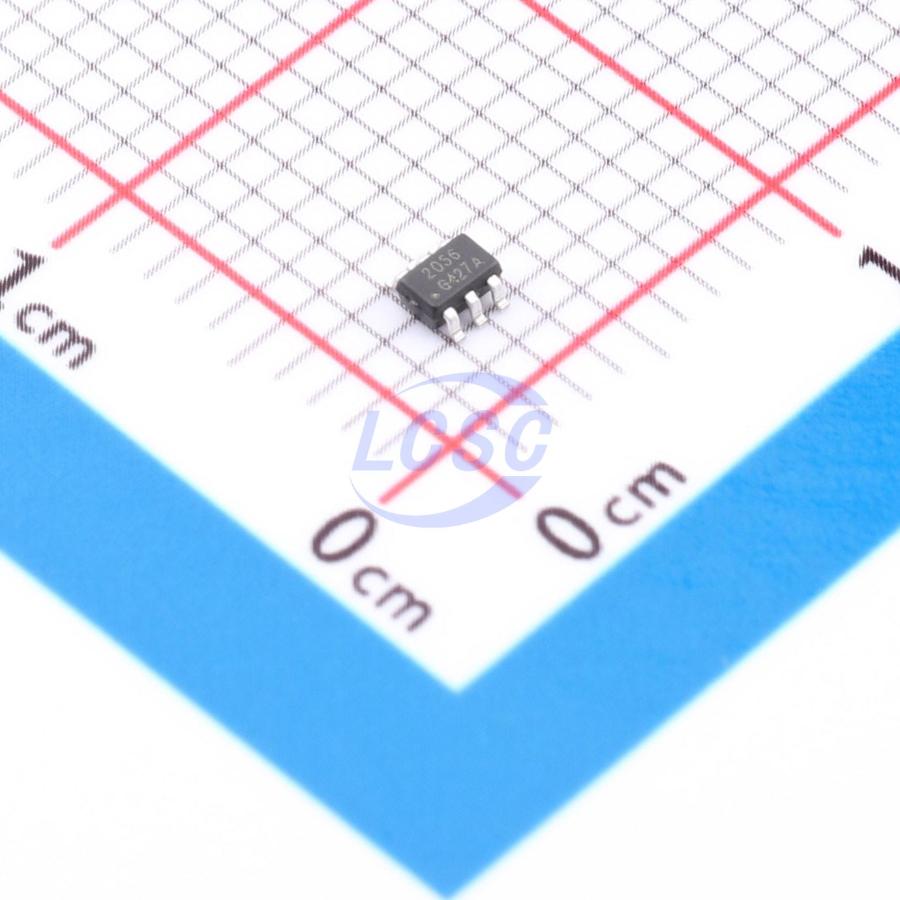

RS2056XC6
30Ω@1.8V 1 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers
SC-70-6RoHSActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2056XC6
- Store part #
- C42459531
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,700 in stock
#C42459531
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.95 | ₹114.75 |
| 50+ | ₹18.02 | ₹901.00 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹13.28 | ₹6,640.00 |
| 3,000+ | ₹12.11 | ₹36,330.00 |
| 6,000+ | ₹11.40 | ₹68,400.00 |
5 × ₹22.95
₹114.75
excl. GST
₹135.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2056XC6
₹114.75 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Power-off isolation;Glitch-free switching
- Operating Temperature
- -40℃~+125℃
- Ron
- 30Ω@1.8V
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Con
- 46pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The RS2056 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. RS2056 can handle both analog and digital signals and offers low-ON resistance (0.9Ω TYP) and features 100MHz bandwidth. The device also has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make RS2056 suitable for a wide variety of portable applications.
Applications
- Wearable Devices
- Low-Voltage Data Acquisition Systems
- Communication Circuits
- Portable Instrumentation
- Computer Peripherals
- Audio and Video Signal Routing
Key features
- Isolation in Power-Down Mode, Vcc = 0
- High Speed: Typically 11ns
- Supply Range: +1.65V to +5.5V
- Low ON-State Resistance: 0.9Ω (TYP)
- Break-Before-Make Switching
- Control Inputs Are 5.5V Tolerant
- 1.8V Control Logic Compatible
- Extended Industrial Temperature Range: -40°C to 125°C
- Micro Size Packages: SC70-6, SOT23-6
Alternatives
Similar parts — check the datasheet before substituting.
