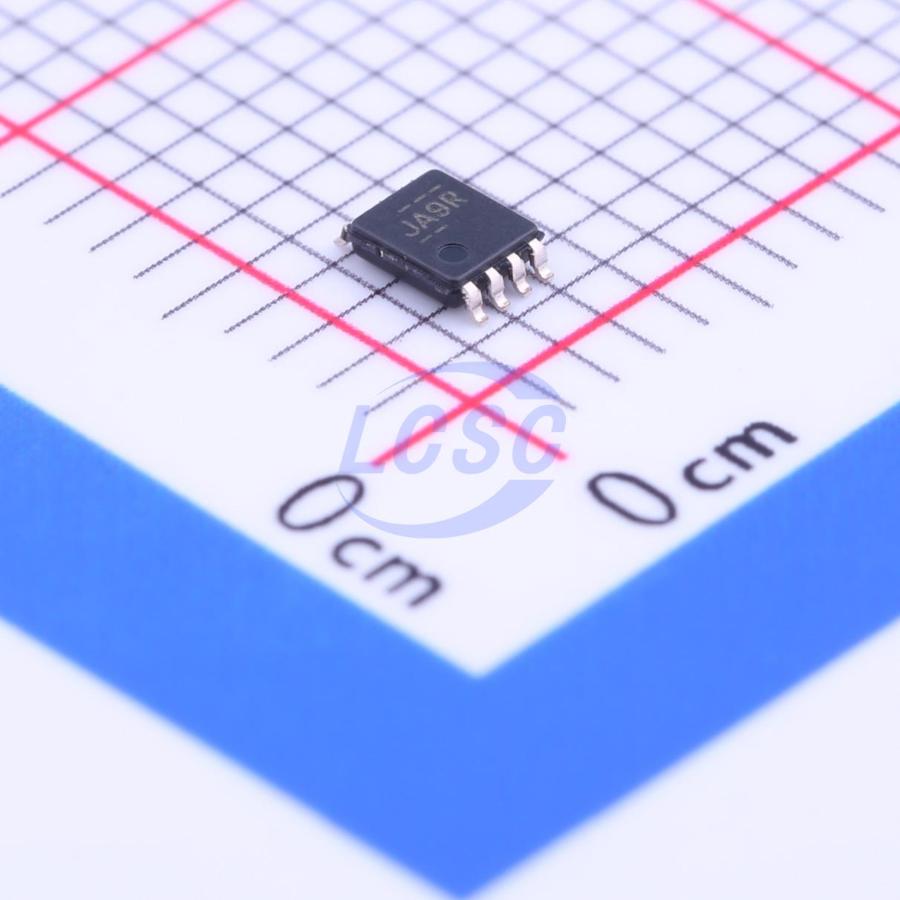

TS5A3357DCUR

5Ω 1 1.65V~5.5V VSSOP-8-0.5mm Analog Switches, Multiplexers, Demultiplexers RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

Single 5-Q SP3T Analog Switch, 3:1 Multiplexer/Demultiplexer

Manufacturer: TI
Manufacturer part #: TS5A3357DCUR
Store part #: C78720
Package / case: VSSOP-8-0.5mm
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,606 in stock

#C78720

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹134.21	₹134.21
10+	₹107.89	₹1,078.90
30+	₹94.62	₹2,838.60
100+	₹81.56	₹8,156.00
500+	₹71.12	₹35,560.00
1,000+	₹67.21	₹67,210.00

Quantity (min 1)

1 × ₹134.21

₹134.21

excl. GST

₹158.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3357DCUR

₹134.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+85℃
Ron: 5Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Con: 17pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

The TS5A3357 is a high-performance, single-pole triple throw (SP3T) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and low input/output capacitance and, thus, causes a very low signal distortion. The break-before-make feature allows transferring of a signal from one port to another, with a minimal signal distortion. This device also offers a low charge injection which makes this device suitable for high-performance audio and data acquisition systems.

Applications

Cell Phones
PDAs
Portable Instrumentation

Key features

Specified Break-Before-Make Switching
Low ON-State Resistance
High Bandwidth
Control Inputs Are 5.5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)
