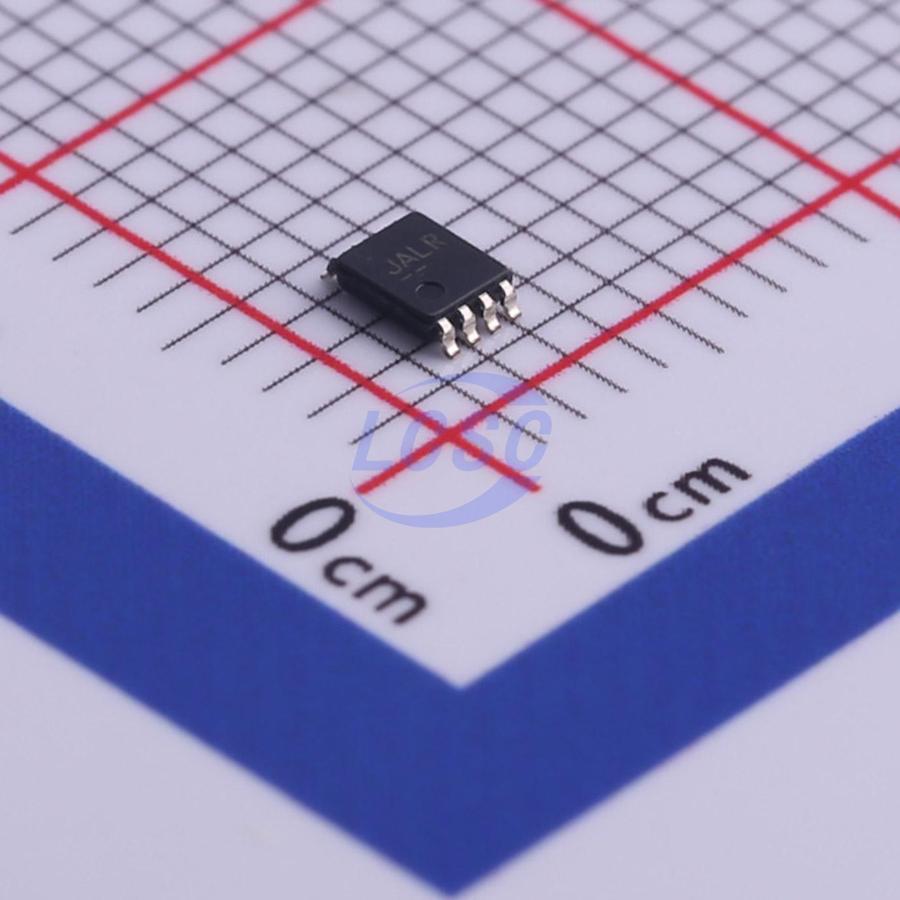

TS5A3359DCUR

The TS5A3359 device is a bidirectional, single channel, single-pole triple-throw (SP3T) analog switch that is designed to operate from 1.65 V to 5.5 V. This device provides a signal switching solution while maintaining excellent signal integrity, which makes the TS5A3359 suitable for a wide range of applications in various markets including personal electronics, test and measurement equipment, and portable instrumentation. The device maintains the signal integrity by its low ON-state resistance, excellent ON-state resistance matching, and total harmonic distortion (THD) performance. To prevent signal distortion during the transferring of a signal from one channel to another, the TS5A3359 device also has a specified break-before-make feature. The device consumes very low power and provides isolation when VCC = 0.

Applications

• Cell Phones
• PDAs
• Portable Instrumentation
• Audio and Video Signal Routing
• Low-Voltage Data Acquisition Systems
• Communication Circuits
• Modems
• Hard Drives
• Computer Peripherals
• Wireless Terminals and Peripherals

Key features

• Isolation in Power-Down Mode, VCC = 0
• Specified Break-Before-Make Switching
• Low ON-State Resistance (1Ω)
• Control Inputs Are 5.5-V Tolerant
• Low Charge Injection (5 pC, VCC = 1.8 V)
• Excellent ON-State Resistance Matching
• Low Total Harmonic Distortion (THD)
• 1.65-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
