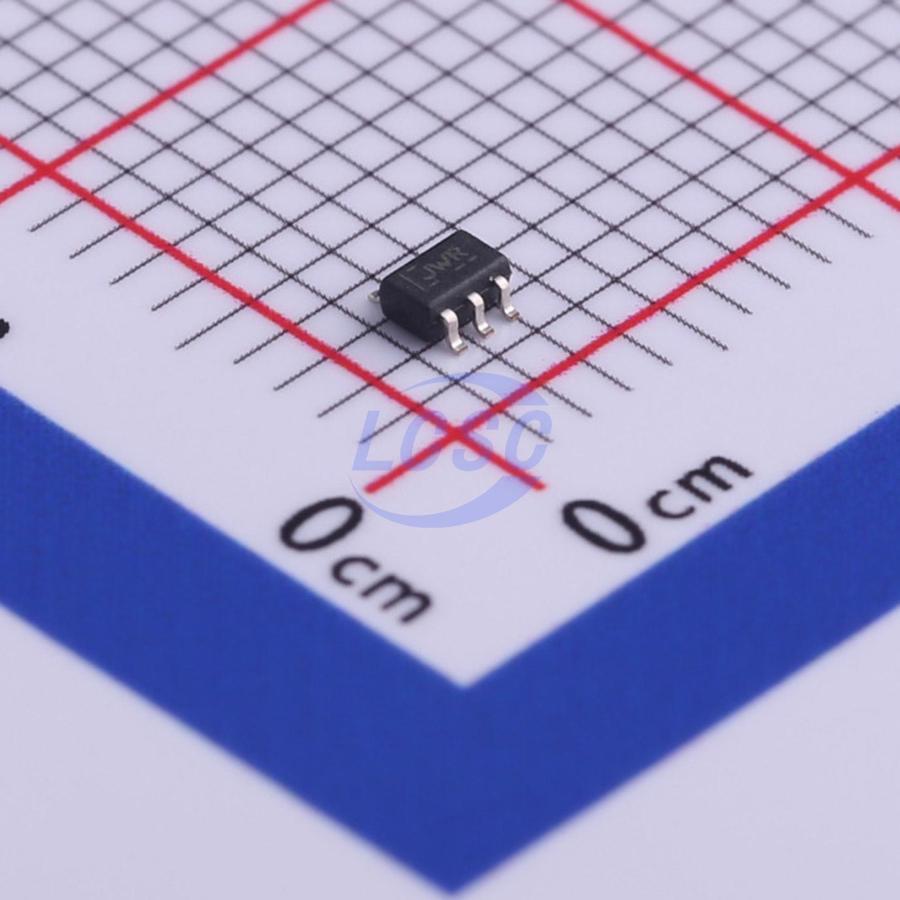

TS5A4624DCKR

1.1Ω 1 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS

SC-70-6ROHS3 CompliantActive

TS5A4624 1-Q SPDT ANALOG SWITCH 5-V/3.3-V SINGLE-CHANNEL 2:1 MULTIPLEXER/DEMULTIPLEXER

Manufacturer: TI
Manufacturer part #: TS5A4624DCKR
Store part #: C485533
Package / case: SC-70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,102 in stock

#C485533

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹89.01	₹89.01
10+	₹73.39	₹733.90
30+	₹66.65	₹1,999.50
100+	₹58.40	₹5,840.00
500+	₹54.72	₹27,360.00
1,000+	₹52.32	₹52,320.00

Quantity (min 1)

1 × ₹89.01

₹89.01

excl. GST

₹105.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A4624DCKR

₹89.01 for 1 + GST

Specifications

Features: Power-off isolation;Glitch-free switching
Operating Temperature: -40℃~+85℃
Ron: 1.1Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Con: 55pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.016 g

Overview

A single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.

Applications

Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communication Circuits
Modems
Hard Drives
Computer Peripherals
Wireless Terminals and Peripherals

Key features

Isolation in Power-Down Mode, V+ = 0
Specified Break-Before-Make Switching
Low ON-State Resistance (1 Ω)
Control Inputs Are 5.5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD – 2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TS5A4624DCKT#C118867TI · SOT-363-6	TI	SOT-363-6	2	₹98.23 · 2 in stock	View
TS5A3160DCKR#C2651901TI · SC-70-6	TI	SC-70-6	1,272	₹71.27 · 1,272 in stock	View
SGM4157YC6/TR#C124895SGMICRO · SC-70-6	SGMICRO	SC-70-6	2,980	₹51.82 · 2,980 in stock	View
TS5A3159ADCKR#C475493TI · SC-70-6	TI	SC-70-6	6,372	₹77.63 · 6,372 in stock	View
TPTS5A4624DCKR#C42449042TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	3,470	₹25.94 · 3,470 in stock	View
