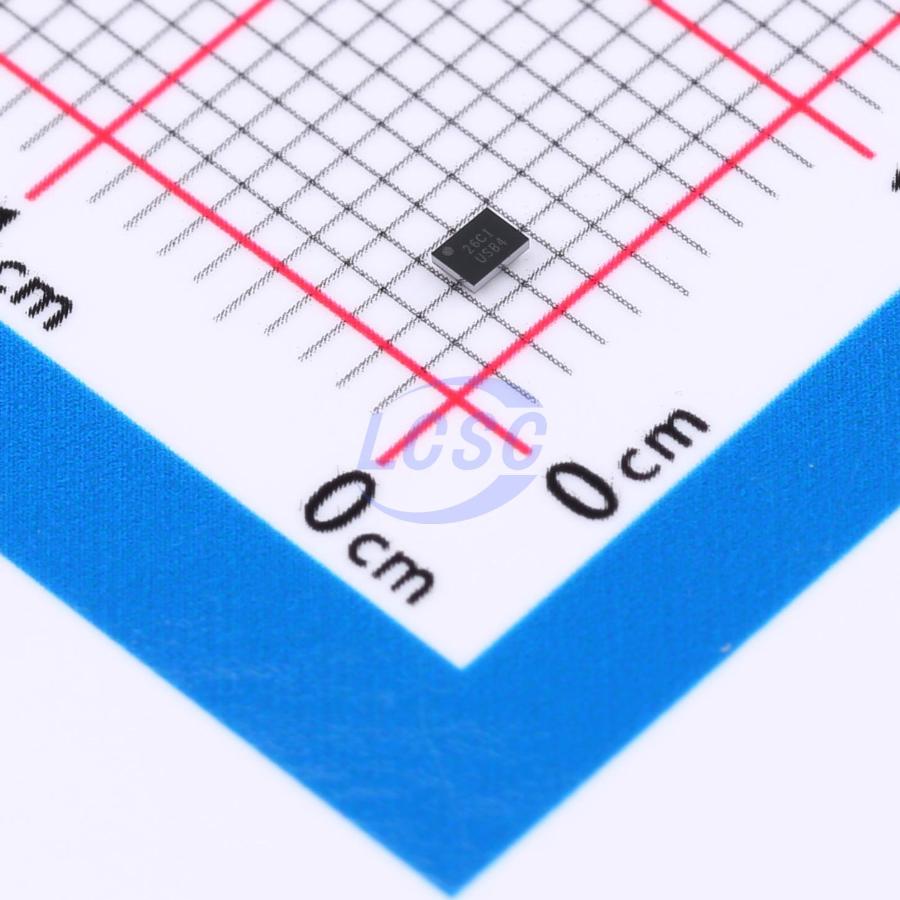

TS5USBC400IYFPR
2.3V~5.5V DSBGA-12 Analog Switches - Special Purpose RoHS
DSBGA-12ROHS3 CompliantActive
Dual 2:1 USB2.0 multiplexer/demultiplexer with overvoltage protection function
- Manufacturer
- TI
- Manufacturer part #
- TS5USBC400IYFPR
- Store part #
- C2879627
- Package / case
- DSBGA-12
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2879627
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.61 | ₹97.61 |
| 10+ | ₹83.80 | ₹838.00 |
| 30+ | ₹74.07 | ₹2,222.10 |
| 100+ | ₹66.08 | ₹6,608.00 |
| 500+ | ₹63.49 | ₹31,745.00 |
| 1,000+ | ₹61.98 | ₹61,980.00 |
1 × ₹97.61
₹97.61
excl. GST
₹115.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5USBC400IYFPR
₹97.61 for 1 + GST
Specifications
- Voltage - Supply
- 2.3V~5.5V
- Quiescent Supply Current
- 10uA
- Propagation Delay (tpd)
- 180ps@3.3V,5pF
- Operating Temperature
- -40℃~+85℃
- Features
- Power-off protection;Overcurrent Protection;Output enable high-impedance
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Overview
The TS5USBC400 is a bidirectional, low-power, dual-port high-speed USB 2.0 analog switch with integrated protection features for USB Type-C systems. This device is configured as a dual 2:1 or 1:2 switch and is optimized for the USB 2.0 D+/- lines in USB Type-C systems. The protection features on the I/O pins of the TS5USBC400 can withstand voltages up to 16V and are equipped with an automatic shutdown circuit to protect system components behind the switch. The TS5USBC400 comes in a small 12-pin DSBGA package, meeting the requirements for high efficiency, high power density, and robustness in mobile and space-constrained applications.
Applications
- Mobile devices
- Desktop/laptop computers
- Tablets
- Any application using USB Type-C or Micro-B connectors
Key features
- Supply range: 2.3V to 5.5V differential 2:1 or 1:2 switch/multiplexer
- 0V to 16V OVP on common pin, power-off protection when VCC = 0V
- Low RON (9Ω max), typical bandwidth 1.1GHz
- Typical CON of 4.5pF, low-power disable mode
- 1.8V-compatible logic input
- ESD protection exceeding JESD 22 standard – 2000V HBM
- TS5USBC400: standard temperature range 0°C to 70°C
- TS5USBC400I: industrial temperature range -40°C to 85°C
- Small DSBGA package
