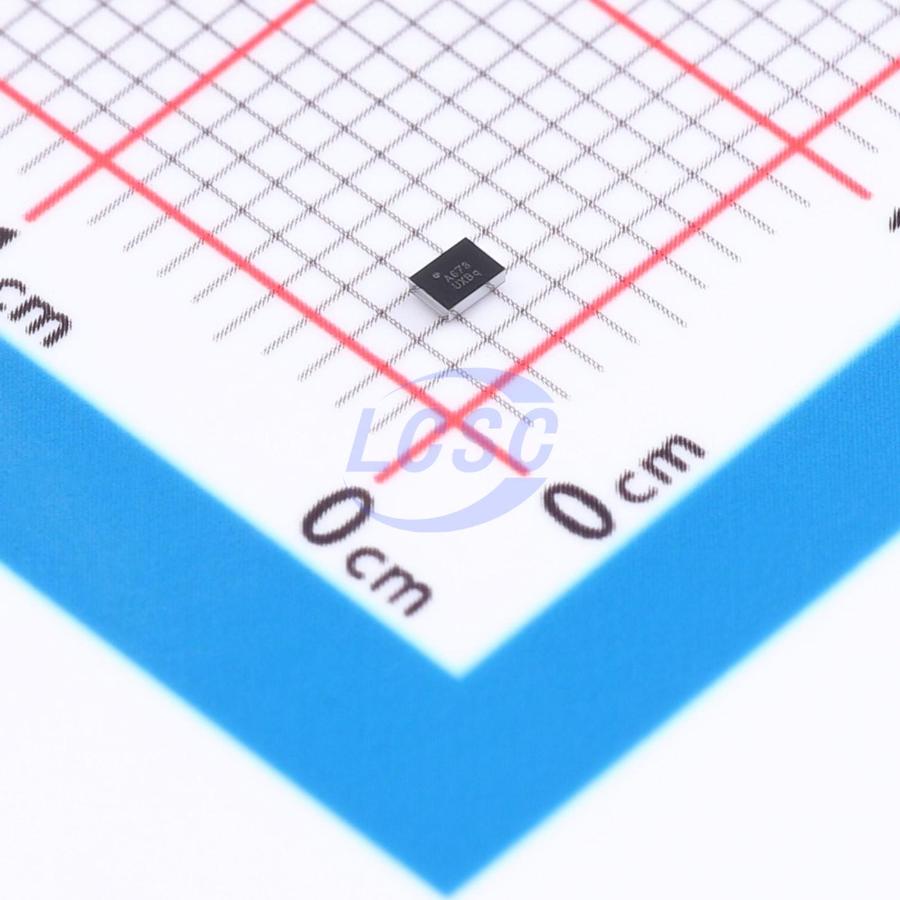

TS5USBC412YFFR-TP

TS5USBC412YFFR-TP is a bidirectional, low-power, dual-port high-speed USB 2.0 analog switch with integrated protection designed for USB Type-C systems. The device is configured as a dual 2:1 or 1:2 switch, optimized for USB 2.0 DP/DM lines in USB Type-C systems. The TS5USBC412YFFR-TP integrates overvoltage protection on the D+/- pins, capable of withstanding up to 30V DC, and features an auto-shutdown circuit to protect system components downstream of the switch. GPIO control via S1, S2, and _OE is compatible with 1.8V logic. The TS5USBC412YFFR-TP is housed in a 12-ball WLCSP measuring 1.2×1.6×0.6mm, is lead-free and halogen-free, making it ideal for mobile and space-constrained applications.

Applications

• Any application using USB Type-C or Micro-B connectors
• Mobile phones, tablets, and laptops

Key features

• Supply range: 2.5V to 5.5V
• Differential 2:1 or 1:2 switch/multiplexer
• D+/- port OVP up to 30V DC
• D+/- port IEC 64000-4-5 surge protection without external TVS: ±30V
• System-side clamp voltage pulse less than 9V, duration less than 200ns
• Power-off protection when VCC = 0V
• Typical RON: 10Ω
• Insertion loss: -1dB at 200MHz, -2dB at 650MHz, -3dB at 1GHz
• CON: 4.8pF
• 1.8V compatible logic input
• Standard temperature range: 0°C to 85°C
