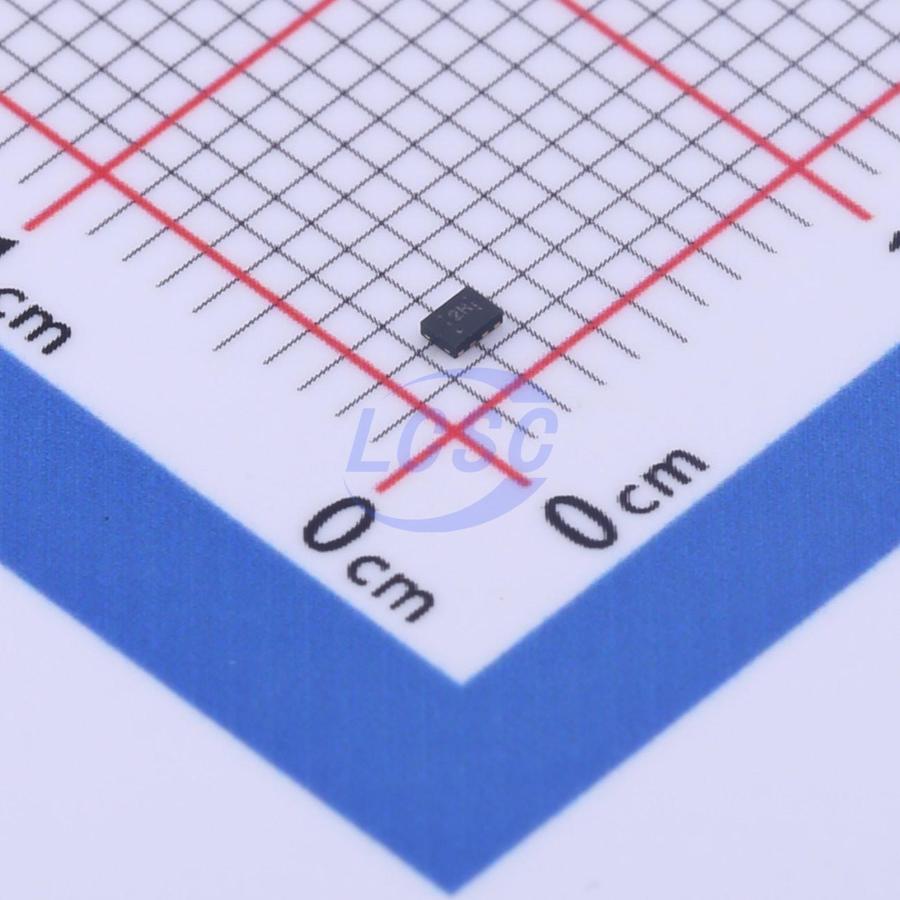

TXS0102DQER

24Mbps 1 2 X2-SON-8(1x1.4) Translators, Level Shifters RoHS

X2-SON-8(1x1.4)ROHS3 CompliantActive

2-bit bidirectional voltage level shifter suitable for open-drain and push-pull applications

Manufacturer: TI
Manufacturer part #: TXS0102DQER
Store part #: C2652935
Package / case: X2-SON-8(1x1.4)
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,21,055 in stock

#C2652935

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.53	₹117.65
50+	₹18.26	₹913.00
150+	₹16.01	₹2,401.50
500+	₹13.18	₹6,590.00
2,500+	₹11.92	₹29,800.00
5,000+	₹11.18	₹55,900.00

Quantity (min 5, multiples of 5)

5 × ₹23.53

₹117.65

excl. GST

₹138.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

TXS0102DQER

₹117.65 for 5 + GST

Specifications

output type: Open-drain;Push-Pull
Interface: I2C;SMBus;UART
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.3V~5.5V;1.65V~3.6V
Data Rate: 24Mbps
Number of Elements: 1
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance;Integrated pull-up resistor
Number of Circuits: 2

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.012 g

Overview

This 2-bit non-inverting translator is a bidirectional voltage-level translator designed to establish digital switching compatibility between mixed-voltage systems. It features two independent configurable supply rails: Port A supports an operating voltage range of 1.65V to 3.6V and tracks the VCCA supply, while Port B supports an operating voltage range of 2.3V to 5.5V and tracks the VCCB supply. As a result, the device accommodates both lower and higher logic signal levels, enabling bidirectional translation between any combination of 1.8V, 2.5V, 3.3V, and 5V voltage nodes.

Applications

I²C/SMBus
UART
General-Purpose Input/Output (GPIO)

Key features

No direction control signal required
Maximum data rate: 24Mbps (push-pull); 2Mbps (open-drain)
NanoStar package
Port A supports 1.65V to 3.6V; Port B supports 2.3V to 5.5V (VCCA ≤ VCCB)
VCC isolation: if either VCC input is tied to GND, both ports enter high-impedance state
No power sequencing required: VCCA or VCCB may ramp up in any order
|_off supports partial power-down mode operation
Latch-up performance exceeds 100mA per JESD 78 Class II
ESD protection exceeds JESD 22 requirements
Port A: 2500V HBM (A114-B); 250V MM (A115-A); 1500V CDM (C101)
Port B: 8kV HBM (A114-B); 250V MM (A115-A); 1500V CDM (C101)
