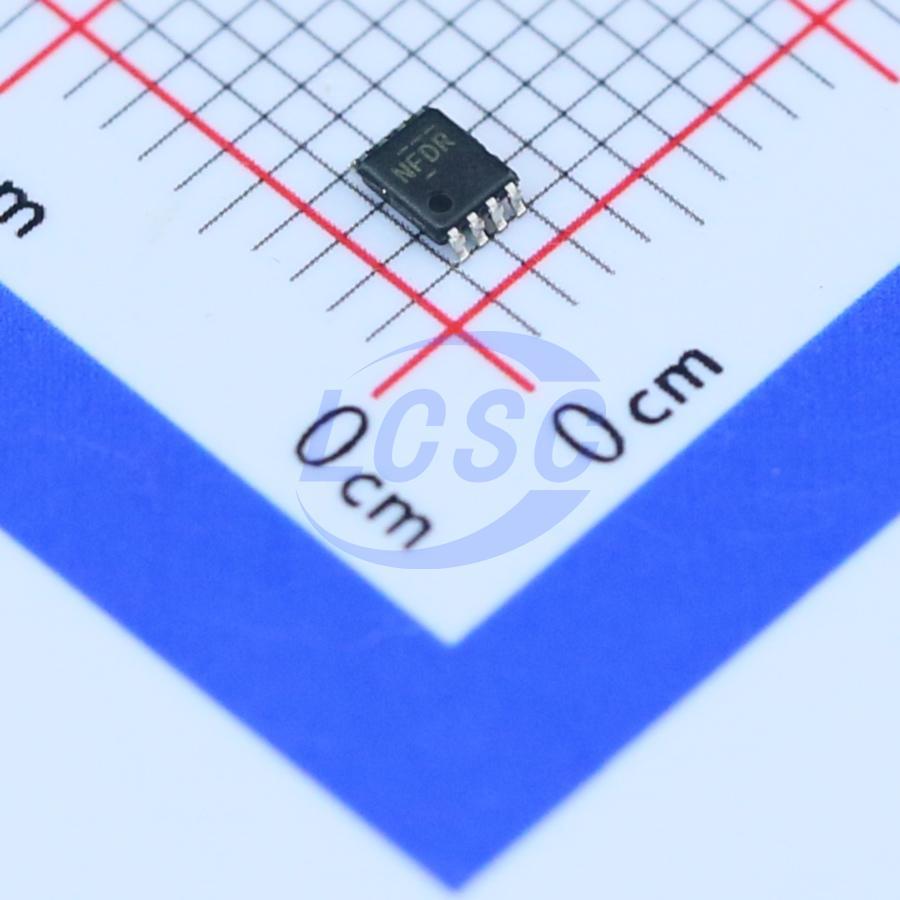

TXB0102DCUR

This 2-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track V_CCA. V_CCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track V_CCB. V_CCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. V_CCA should not exceed V_CCB. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. This device is fully specified for partial-power-down applications using I_0ff. The I_0ff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. NanoFree™ technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

• Handsets
• Smartphones
• Tablets
• Desktop PCs

Key features

• Available in the Texas Instruments NanoFree™ Packages
• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V On B Port (V_CCA ≤ V_CCB)
• V_CC Isolation Feature – If Either V_CC Input Is at GND, All Outputs Are in the High-Impedance State
• OE Input Circuit Referenced to V_CCA
• Low Power Consumption, 4 μA Max ICC
• Ioff Supports Partial-Power-Down Mode Operation
• ESD Protection Exceeds JESD 22
• A Port
• 2500-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1500-V Charged-Device Model (C101)
• B Port
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1500-V Charged-Device Model (C101)
