TIDatasheet (PDF)

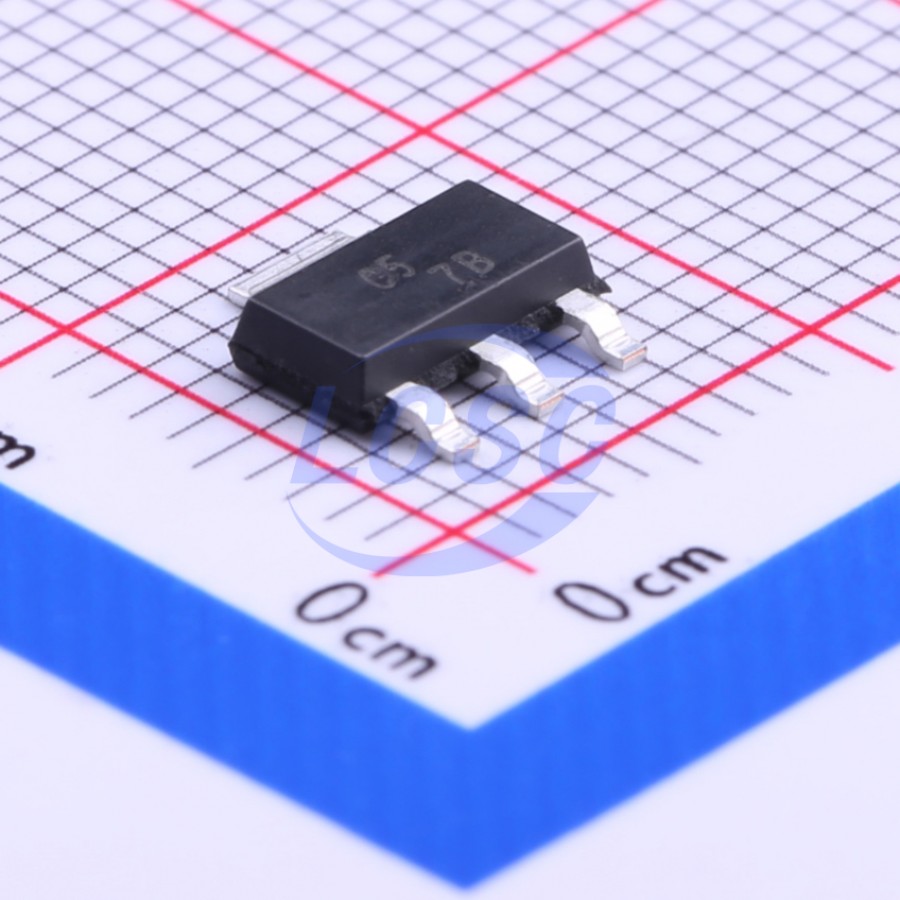

UA78M05CDCYR
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
500mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA78M05CDCYR
- Store part #
- C201654
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,290 in stock
#C201654
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.11 | ₹220.55 |
| 50+ | ₹34.93 | ₹1,746.50 |
| 150+ | ₹31.00 | ₹4,650.00 |
| 500+ | ₹26.08 | ₹13,040.00 |
| 2,500+ | ₹23.89 | ₹59,725.00 |
| 5,000+ | ₹22.58 | ₹1,12,900.00 |
5 × ₹44.11
₹220.55
excl. GST
₹260.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA78M05CDCYR
₹220.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 4.5mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.288 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA78M05CDCY#C2865782TI · SOT-223-4 | TI | SOT-223-4 | 60 | ₹64.09 · 60 in stock | View |
 | LM78M05DCYRG#C22468100HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 200 | ₹16.83 · 200 in stock | View |
 | LM7805MPX/NOPB#C2848241TI · SOT-223-4 | TI | SOT-223-4 | 3,288 | ₹150.90 · 3,288 in stock | View |
 | LM7805MP/NOPB#C2872300TI · SOT-223-4 | TI | SOT-223-4 | 197 | ₹221.76 · 197 in stock | View |
 | LM7805MPX-TP#C41348209TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,184 | ₹78.14 · 2,184 in stock | View |
