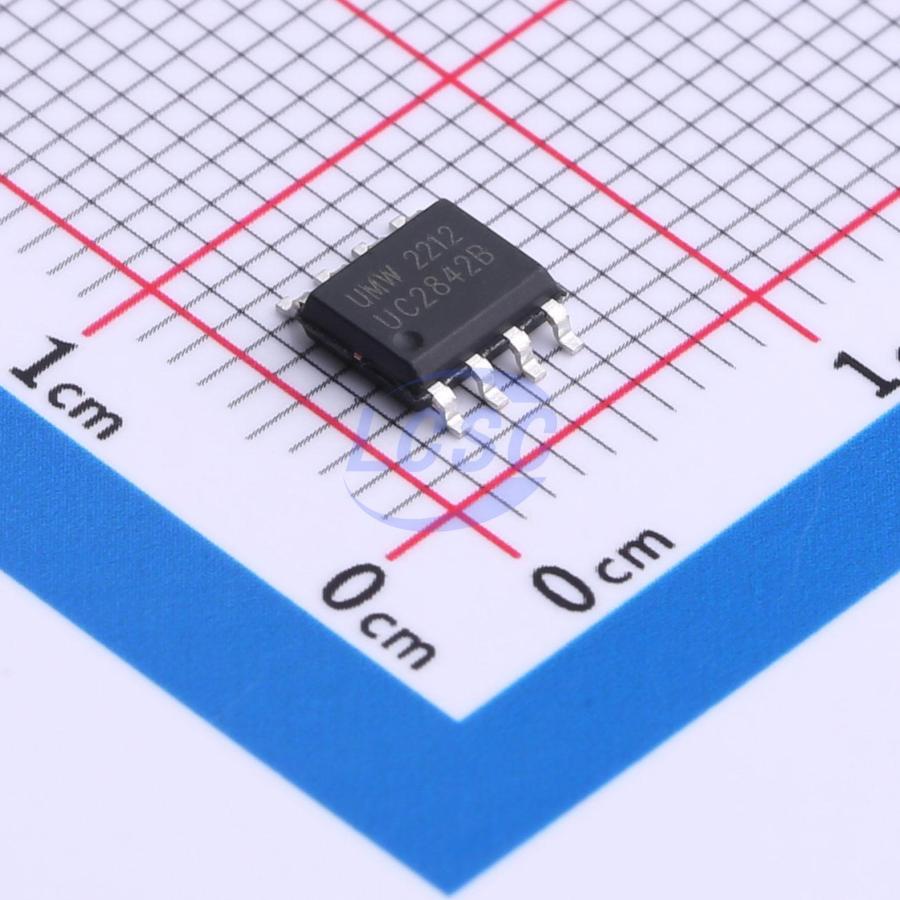

UMW

UC2842B

500uA 47kHz~52kHz 1A 12V~25V Fixed 1 SOP-8 AC DC Converters, Offline Switchers RoHS

SOP-8ROHS3 CompliantActive

Fixed Frequency Current Mode PWM Controller

Manufacturer: UMW
Manufacturer part #: UC2842B
Store part #: C2995534
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,244 in stock

#C2995534

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
2+	₹24.33	₹48.66
20+	₹19.14	₹382.80
60+	₹16.92	₹1,015.20
200+	₹14.14	₹2,828.00
1,000+	₹12.03	₹12,030.00
2,500+	₹11.29	₹28,225.00

Quantity (min 2, multiples of 2)

2 × ₹24.33

₹48.66

excl. GST

₹57.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

UC2842B

₹48.66 for 2 + GST

Specifications

Quiescent Current: 500uA
Synchronous Rectifier: No
Operating Temperature: -25℃~+85℃
Frequency - Switching: 47kHz~52kHz
Output Current: 1A
Voltage - Supply: 12V~25V
Features: Cycle-by-cycle current limiting;Frequency synchronization
Output Type: Fixed
Switch tube (built-in/external): External
Number of Channels: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 2 (multiples of 2)
Unit weight: 0.18 g

Overview

2842, 2843, 2844, and 2845 are fixed-frequency current-mode PWM controllers designed for off-line and DC-DC converter applications with minimal external components. Internally implemented circuitry includes a trimmed oscillator for precise duty cycle control, a temperature-compensated reference, a high-gain error amplifier, a current-sensing comparator, and a high-current totem-pole output ideally suited for driving power MOSFETs. Protection features include built-in undervoltage lockout and current limiting. The 2842 and 2844 have UVLO thresholds of 16V (on) and 10V (off). The 2843 and 2845 have corresponding thresholds of 8.4V (on) and 7.6V (off). The 2842 and 2843 operate at up to 100% duty cycle. The 2844 and 2845 operate at up to 50% duty cycle. Startup current for this device family is typically 0.5mA.
