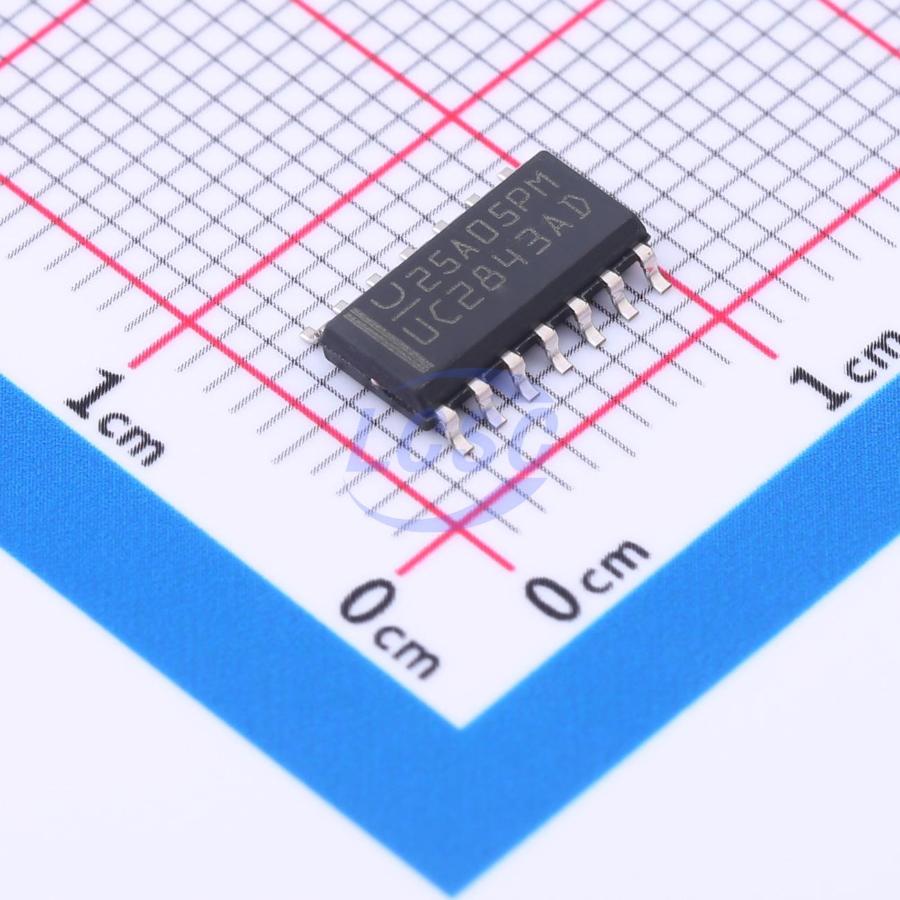

UC2843ADTR
1A 500kHz 11V SOIC-14 Power Supply Controllers, Monitors RoHS
UCx84xA Current-Mode PWM Controllers
- Manufacturer
- TI
- Manufacturer part #
- UC2843ADTR
- Store part #
- C702400
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,615 in stock
#C702400
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.86 | ₹119.86 |
| 10+ | ₹103.88 | ₹1,038.80 |
| 30+ | ₹92.65 | ₹2,779.50 |
| 100+ | ₹83.36 | ₹8,336.00 |
| 500+ | ₹80.35 | ₹40,175.00 |
| 1,000+ | ₹78.61 | ₹78,610.00 |
1 × ₹119.86
₹119.86
excl. GST
₹141.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC2843ADTR
₹119.86 for 1 + GST
Specifications
- Output Current
- 1A
- Pd - Power Dissipation
- 1W
- Function
- Under-voltage lockout;Slope compensation;Over Current Protection;Under Voltage Protection
- Frequency - Switching
- 500kHz
- Output Voltage
- 11V
- Duty Cycle(Max)
- 96%
- Operating Temperature
- -40℃~+85℃
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
- Operating Voltage
- 11V
- Topology
- Flyback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The UCx84xA series of fixed-frequency pulse-width modulation (PWM) controllers are designed to operate at a switching frequency of 500kHz. These controllers are designed for peak current mode (PCM) and can be used in both isolated and non-isolated power supply designs. These controllers can drive FETs directly from the output, capable of sourcing and sinking up to 1A of gate drive current. These devices also feature a built-in low-impedance amplifier, which can be used in non-isolated designs to control the power supply output voltage and feedback loop.
Applications
- Switched-Mode Power Supplies (SMPS)
- DC/DC Converters
- Power Modules
- Industrial PSUs
- Battery-Powered PSUs
Key features
- Optimized for off-line and DC/DC converters
- Low startup current (< 0.5mA)
- Trimmed oscillator discharge current
- Automatic feedforward compensation
- Pulse-by-pulse current limiting
- Enhanced load response characteristics
- Undervoltage lockout with hysteresis
- Double pulse suppression
- High-current totem-pole output
- Internally trimmed bandgap reference
- Operating frequency up to 500kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UC2844ADTR#C2657897TI · SOIC-14 | TI | SOIC-14 | 2 | ₹149.12 · 2 in stock | View |
 | UC2842ADTR#C2658356TI · SOIC-14 | TI | SOIC-14 | 68 | ₹118.86 · 68 in stock | View |
 | UC3844ADTR#C1880378TI · SOIC-14 | TI | SOIC-14 | 214 | ₹126.77 · 214 in stock | View |
