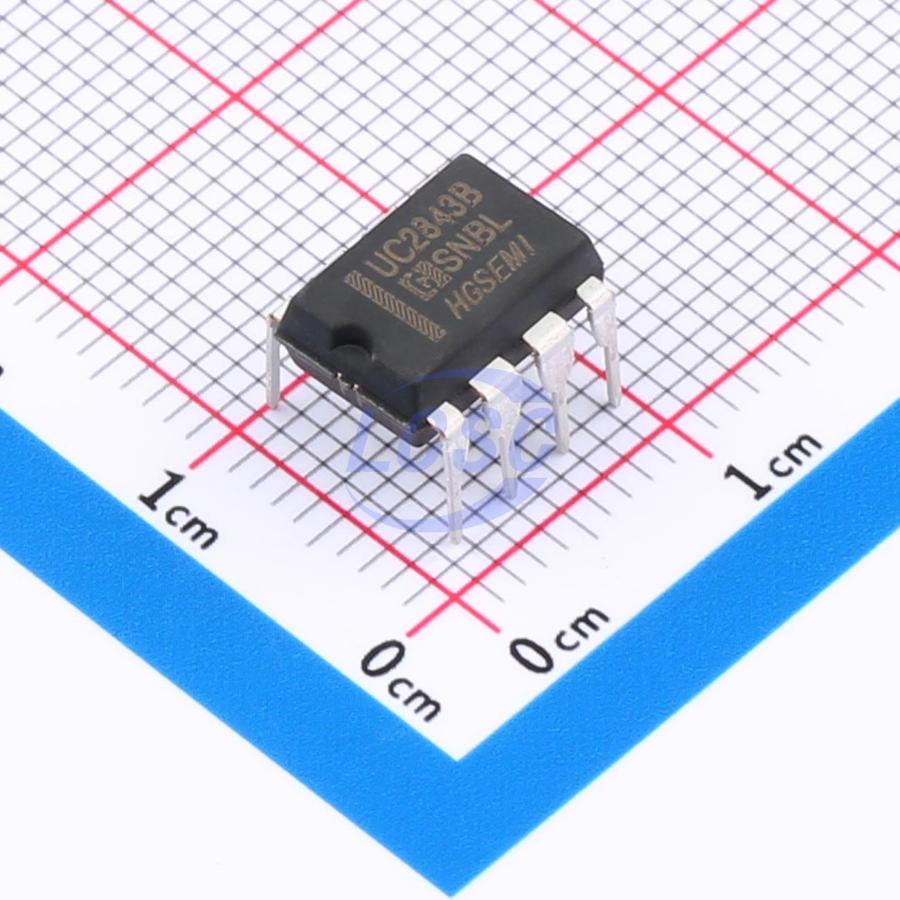

UC2843BN
100kHz~500kHz 1A 1W 10V~30V 0V~28V DIP-8 AC DC Converters, Offline Switchers
DIP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- UC2843BN
- Store part #
- C19193447
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C19193447
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.14 | ₹190.70 |
| 50+ | ₹29.95 | ₹1,497.50 |
| 150+ | ₹26.43 | ₹3,964.50 |
| 500+ | ₹22.05 | ₹11,025.00 |
| 2,000+ | ₹20.11 | ₹40,220.00 |
| 4,000+ | ₹18.95 | ₹75,800.00 |
5 × ₹38.14
₹190.70
excl. GST
₹225.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
UC2843BN
₹190.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 100kHz~500kHz
- Output Current
- 1A
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 10V~30V
- Features
- Under-voltage lockout;Slope compensation;Over Current Protection;Under Voltage Protection
- Output Voltage
- 0V~28V
- Duty Cycle(Max)
- 96%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.794 g
Overview
UC2843B is a high-performance fixed-frequency current-mode controller designed for isolated or DC-DC converter applications, offering designers a cost-effective solution requiring minimal external components. The circuit incorporates an undervoltage lockout module with a startup current of less than 0.5mA. A trimmed precision reference voltage providing high accuracy is connected to the error amplifier input. Additional internal modules include logic circuitry for latched operation, current limiting, and a PWM comparator designed to drive a high-current totem-pole output. The output architecture is suitable for driving N-channel MOSFETs, with the output held low during shutdown.
Applications
- Power converters
Key features
- Optimized for isolated or DC/DC converters
- Low startup current (less than 0.5mA)
- Automatic feed-forward compensation
- Cycle-by-cycle current limiting
- Enhanced load transient response
- UVLO with hysteresis
- Double-pulse suppression
- High-current totem-pole output
- Internal trimmed bandgap reference
- Operating frequency up to 500kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UC2843N#C2987345HGSEMI · DIP-8 | HGSEMI | DIP-8 | On request | Price on request | Quote |
