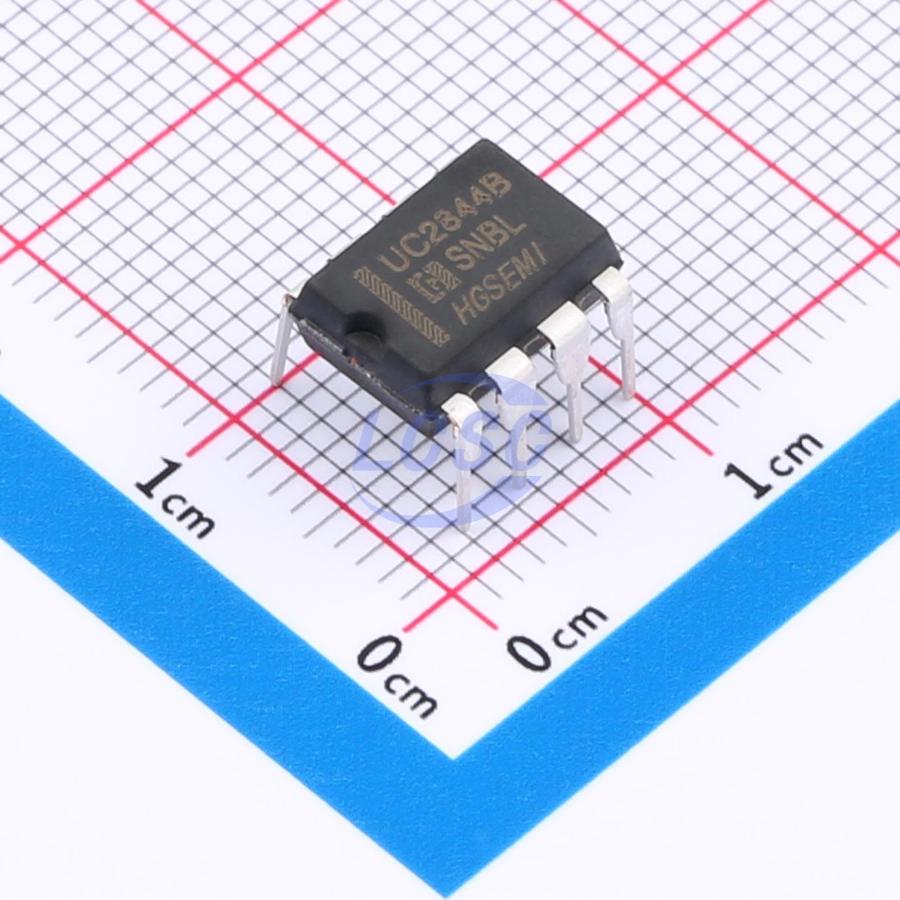

HGSEMI

UC2844BN

Converter Offline 100kHz~500kHz DIP-8

DIP-8RoHSActive

Current-mode PWM controller

Manufacturer: HGSEMI
Manufacturer part #: UC2844BN
Store part #: C19193449
Package / case: DIP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,790 in stock

#C19193449

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.61	₹133.05
50+	₹23.23	₹1,161.50
150+	₹21.79	₹3,268.50
500+	₹19.99	₹9,995.00
2,000+	₹19.18	₹38,360.00
4,000+	₹18.71	₹74,840.00

Quantity (min 5, multiples of 5)

5 × ₹26.61

₹133.05

excl. GST

₹157.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

UC2844BN

₹133.05 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 100kHz~500kHz
Output Current: 1A
Pd - Power Dissipation: 850mW
Voltage - Supply: 10V~28V
Features: Slope compensation;Under-voltage lockout;Over Current Protection;Under Voltage Protection
Output Voltage: 0V~28V
Duty Cycle(Max): 50%
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.791 g

Overview

UC2844B is a high-performance fixed-frequency current-mode controller designed for isolated or DC-DC converter applications, offering designers a cost-effective solution with minimal external components. The circuit features an undervoltage lockout module with startup current less than 0.5mA, a precision reference voltage connected to the error amplifier input that is trimmed for high accuracy. Additional internal modules include logic circuitry for latched operation, current limiting, and a PWM comparator designed for high-current totem-pole output. This output stage is suitable for driving N-channel MOSFETs, with the output held low during shutdown.
