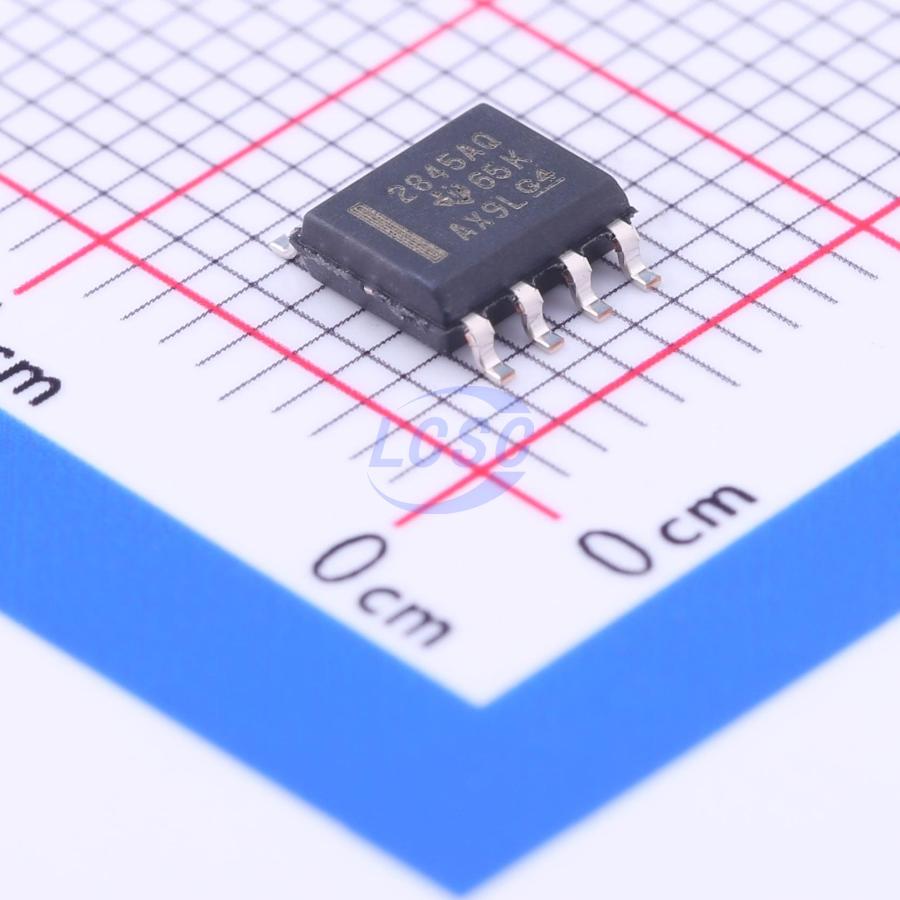

UC2845AQD8R

1A SOIC-8 Power Supply Controllers, Monitors RoHS

SOIC-8ROHS3 CompliantActive

UC2842A/3A/4A/5A series control ICs: High-efficiency solutions for offline and DC-DC converters

Manufacturer: TI
Manufacturer part #: UC2845AQD8R
Store part #: C91739
Package / case: SOIC-8
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,128 in stock

#C91739

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹169.09	₹169.09
10+	₹144.48	₹1,444.80
30+	₹130.87	₹3,926.10
100+	₹115.76	₹11,576.00
500+	₹108.84	₹54,420.00
1,000+	₹105.83	₹1,05,830.00

Quantity (min 1)

1 × ₹169.09

₹169.09

excl. GST

₹199.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

UC2845AQD8R

₹169.09 for 1 + GST

Specifications

Output Current: 1A
Output Type: Adjustable
Function: Cycle-by-cycle current limiting;-;Overcurrent Protection
Number of Outputs: 1
Switch Tube (Built-In/External): External
Quiescent Current: 11mA
Operating Temperature: -40℃~+125℃
Operating Voltage: 7V~30V
Topology: Flyback

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The UC2842A/3A/4A/5A family of control ICs is a pin for pin compatible improved version of the UC2842/3/4/5 family. Providing the necessary features to control current mode switched mode power supplies, this family has the following improved features. Start up current is guaranteed to be less than 0.5 mA. Oscillator discharge is trimmed to 8.3 mA. During under voltage lockout, the output stage can sink at least 10 mA at less than 1.2 V for VCC over 5 V.
