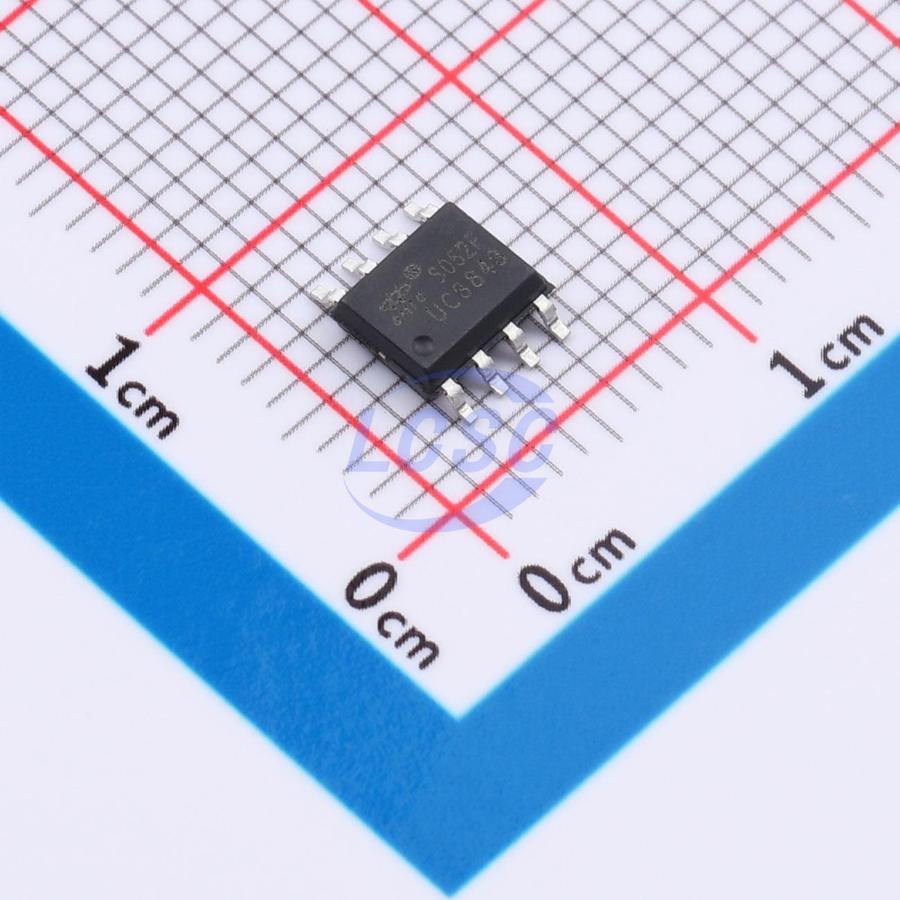

UC3843BS
500kHz 1A 1W 7.6V~30V Boost SOP-8 AC DC Converters, Offline Switchers
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- UC3843BS
- Store part #
- C53055882
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,690 in stock
#C53055882
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.99 | ₹54.95 |
| 50+ | ₹8.75 | ₹437.50 |
| 150+ | ₹7.61 | ₹1,141.50 |
| 500+ | ₹6.76 | ₹3,380.00 |
| 2,500+ | ₹6.09 | ₹15,225.00 |
| 5,000+ | ₹5.74 | ₹28,700.00 |
5 × ₹10.99
₹54.95
excl. GST
₹64.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC3843BS
₹54.95 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Frequency - Switching
- 500kHz
- Output Current
- 1A
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 7.6V~30V
- Topology
- Boost
- Features
- Under Voltage Protection
- Duty Cycle(Max)
- 96%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.294 g
Overview
3843 is a current-mode PWM IC designed for switching power supplies. Compared to voltage-mode control, it offers significant advantages in load transient response and line regulation. The device is available in SOP8 and DIP8 packages.
Key features
- Built-in undervoltage lockout circuit
- Low startup current (typical 70uA)
- Stable internal reference voltage source
- High-current push-pull output (drive current up to 1A)
- Operating frequency up to 500kHz
- Automatic negative feedback compensation circuit
- Double pulse suppression
- Strong load transient response characteristics
