JSMSEMIDatasheet (PDF)

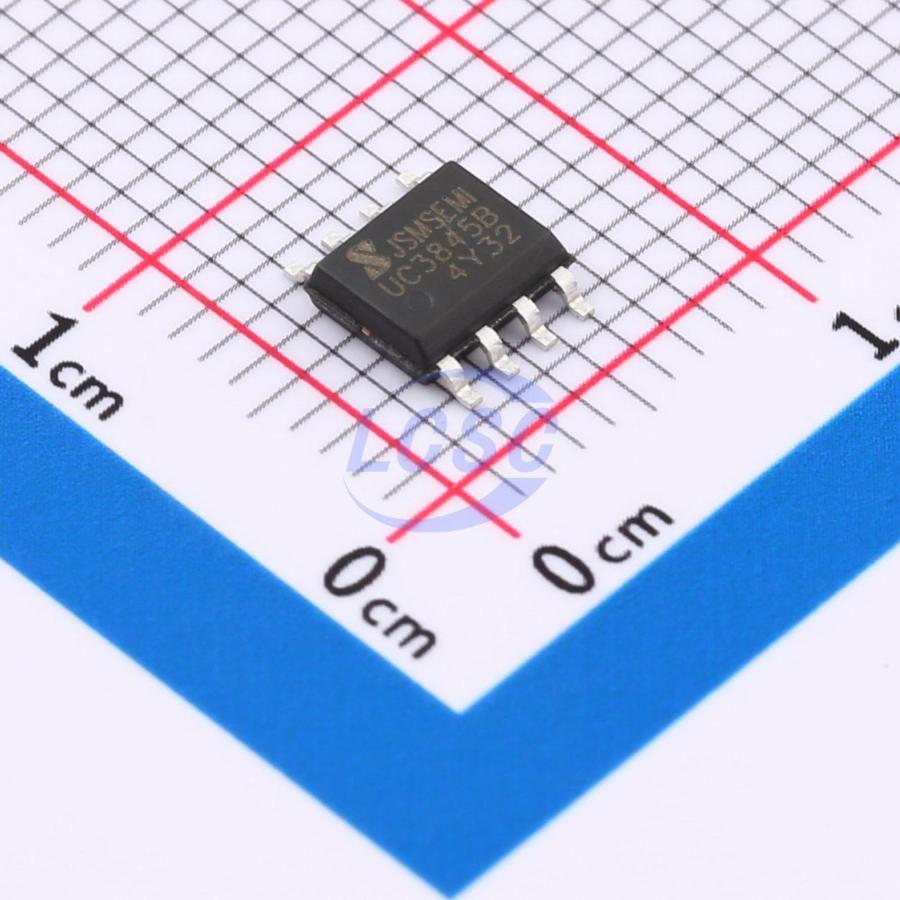

UC3845B-JSM
Converter Offline 500kHz SOP-8
SOP-8ROHS CompliantActive
Pulse Width Modulation (PWM) circuit
- Manufacturer
- JSMSEMI
- Manufacturer part #
- UC3845B-JSM
- Store part #
- C41421787
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C41421787
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.36 | ₹151.80 |
| 50+ | ₹26.51 | ₹1,325.50 |
| 150+ | ₹24.86 | ₹3,729.00 |
| 500+ | ₹22.81 | ₹11,405.00 |
| 2,500+ | ₹21.90 | ₹54,750.00 |
| 5,000+ | ₹21.34 | ₹1,06,700.00 |
5 × ₹30.36
₹151.80
excl. GST
₹179.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC3845B-JSM
₹151.80 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Output Current
- 1A
- Frequency - Switching
- 500kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 30V
- Features
- Under-voltage lockout;Under Voltage Protection
- Duty Cycle(Max)
- 50%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.519 g
Overview
UC3845 is a current-mode PWM IC designed for switching power supplies. Compared to voltage-mode control, it offers significant advantages in load transient response and line regulation. Available in SOP8 and DIP8 packages.
Key features
- Built-in undervoltage lockout circuit
- Low startup current (typical 60uA)
- Stable internal voltage reference
- High-current push-pull output (drive current up to 1A)
- Operating frequency up to 500kHz
- Automatic negative feedback compensation circuit
- Double pulse suppression
- Superior load transient response
