GREENMICRODatasheet (PDF)

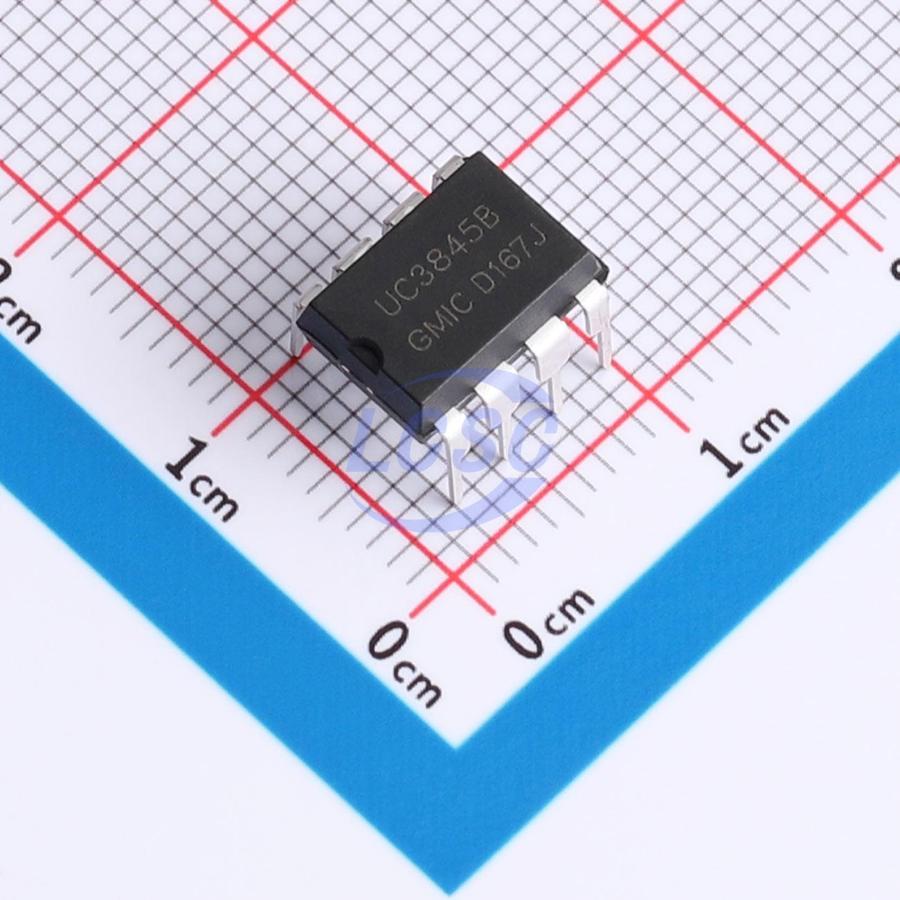

UC3845BD
49kHz~55kHz 1A 1W 7.6V~30V Boost DIP-8 AC DC Converters, Offline Switchers
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- UC3845BD
- Store part #
- C53055873
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,300 in stock
#C53055873
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.58 | ₹72.90 |
| 50+ | ₹11.62 | ₹581.00 |
| 150+ | ₹10.13 | ₹1,519.50 |
| 500+ | ₹9.02 | ₹4,510.00 |
| 2,000+ | ₹8.14 | ₹16,280.00 |
| 4,000+ | ₹7.69 | ₹30,760.00 |
5 × ₹14.58
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
UC3845BD
₹72.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 49kHz~55kHz
- Output Current
- 1A
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 7.6V~30V
- Features
- Under Voltage Protection
- Topology
- Boost
- Duty Cycle(Max)
- 48%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.903 g
Overview
3845 is a current-mode PWM IC designed for switching power supplies. Compared to voltage-mode control, it offers significant advantages in load transient response and line regulation. The device is available in SOP8 and DIP8 packages.
Key features
- Built-in undervoltage lockout circuit
- Low startup current (typical 60μA)
- Stable internal reference voltage source
- High-current push-pull output (drive current up to 1A)
- Operating frequency up to 500kHz
- Automatic negative feedback compensation circuit
- Double pulse suppression function
- Excellent load transient response
