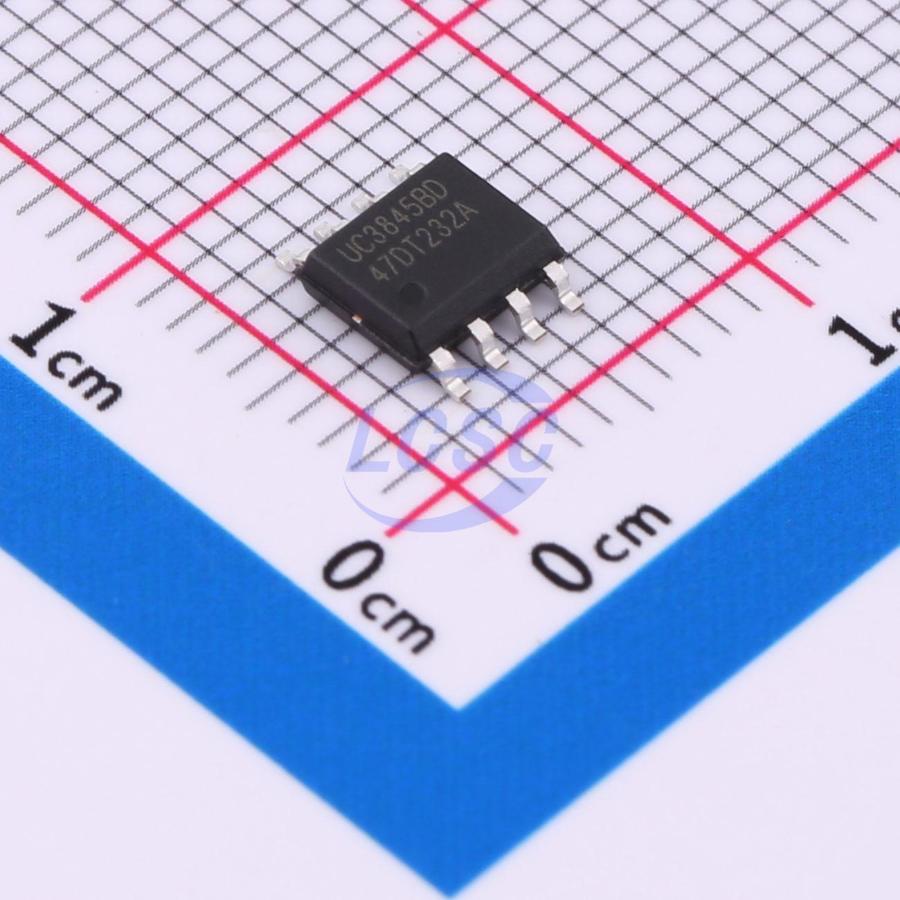

UC3845BD(LX)
1A 49kHz~55kHz 1W 7.6V~30V Boost 4.9V~5.1V SOP-8 AC DC Converters, Offline Switchers
SOP-8RoHSActive
High Performance Current Mode PWM Controller
- Manufacturer
- lingxingic
- Manufacturer part #
- UC3845BD(LX)
- Store part #
- C22397225
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C22397225
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.21 | ₹111.05 |
| 50+ | ₹17.24 | ₹862.00 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹12.45 | ₹6,225.00 |
| 2,500+ | ₹11.26 | ₹28,150.00 |
| 4,000+ | ₹10.54 | ₹42,160.00 |
5 × ₹22.21
₹111.05
excl. GST
₹131.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UC3845BD(LX)
₹111.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1A
- Frequency - Switching
- 49kHz~55kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 7.6V~30V
- Features
- Under-voltage lockout;Under Voltage Protection;Over Current Protection
- Topology
- Boost
- Output Voltage
- 4.9V~5.1V
- Duty Cycle(Max)
- 48%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The UC3842/UC3843/UC3844/UC3845 are fixed frequency current-mode PWM controller. They are specially designed for Off-Line and DC-to-DC converter applications with minimum external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier. Current sensing comparator, and a high current totempole output Ideally suited for driving a power MOSFET. Protection circuit Includes built in undervoltage lockout and current limiting. The UC3842 and UC3844 have UVLO thresholds of 16V (on) and 10V (off). The UC3843 and UC3845 are 8.8V (on) and 7.6V (off) .The UC3842 and UC3843 can operate within 100% duty cycle. The UC3844 and UC3845 can operate with 50% duty cycle.
Key features
- Low Start Up Current
- Maximum Duty Clamp
- UVLO With Hysteresis
- Operating Frequency Up To 500KHz
- Packaging form: DIP8/SOP8
- Wide range of operating temperatures: -40 °C to +85 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UC3843BD(LX)#C22397221lingxingic · SOP-8 | lingxingic | SOP-8 | 3,100 | ₹14.55 · 3,100 in stock | View |
 | UC2845BD(LX)#C22390258lingxingic · SOP-8 | lingxingic | SOP-8 | 345 | ₹25.94 · 345 in stock | View |
 | UC2843BD(LX)#C22390254lingxingic · SOP-8 | lingxingic | SOP-8 | 4,415 | ₹29.26 · 4,415 in stock | View |
