UTC

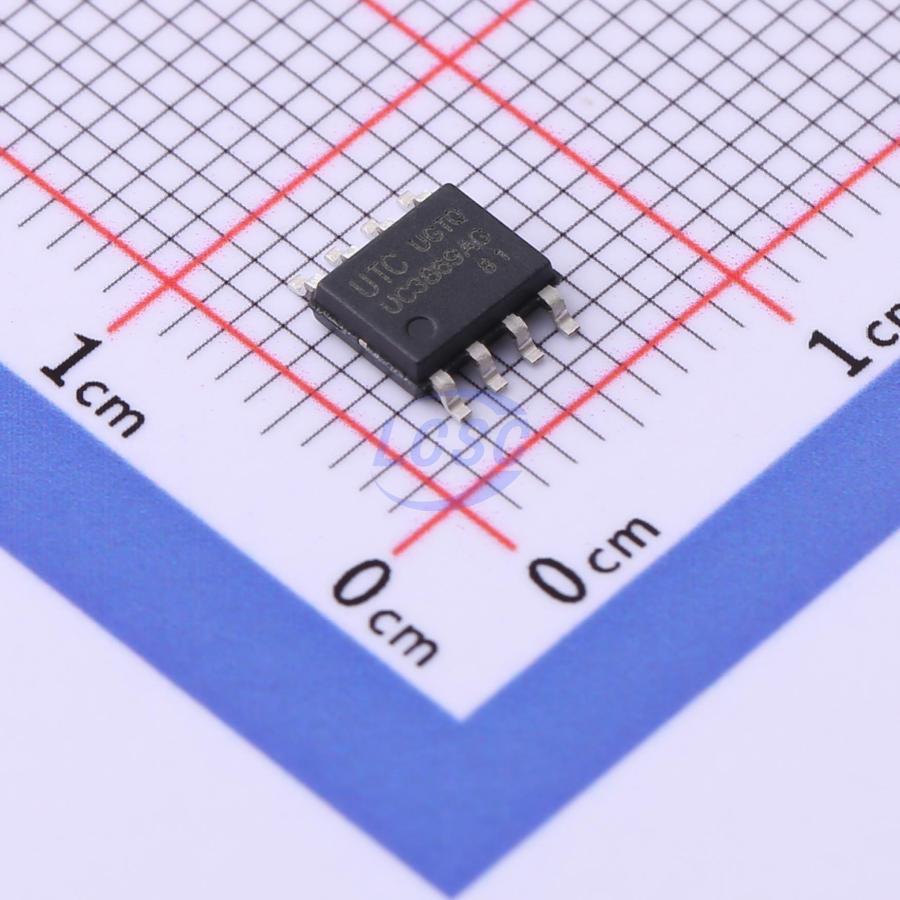

UC3869AG-S08-R

60kHz~70kHz 10V~24V Flyback 9V SOP-8 AC DC Converters, Offline Switchers

SOP-8RoHSActive

High Voltage Green Mode PWM Controller

Manufacturer: UTC
Manufacturer part #: UC3869AG-S08-R
Store part #: C2848648
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,874 in stock

#C2848648

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹22.27	₹22.27
10+	₹19.63	₹196.30
30+	₹18.51	₹555.30
100+	₹17.11	₹1,711.00
500+	₹16.47	₹8,235.00
1,000+	₹15.35	₹15,350.00

Quantity (min 1)

1 × ₹22.27

₹22.27

excl. GST

₹26.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

UC3869AG-S08-R

₹22.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 60kHz~70kHz
Voltage - Supply: 10V~24V
Topology: Flyback
Features: Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Output Voltage: 9V
Duty Cycle(Max): 90%
Working Mode: PWM Modulation
Feedback System: Secondary-Side Feedback

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.201 g

Overview

The UTC UC3869A is a highly integrated current mode PWM control IC with high voltage start up, optimized for high performance, low standby power consumption and cost effective offline flyback converter applications. PWM switching frequency at normal operation is internally fixed and is trimmed to a tight range. At no load condition, the IC operates in power-saving mode for lower standby power, decreasing frequency for Higher conversion efficiency at light load condition. The internal slope compensation improves system stability at high PWM duty cycle output. Leading-edge blanking on current sense input removes the signal glitch, which offering minimal external component count in the design. The UTC UC3869A offers complete protection coverage including Cycle-by-Cycle current limiting (OCP), VDD under voltage lockout (UVLO), over load protection (OLP), over temperature protection (OTP), and over voltage protection (OVP). Excellent EMI performance is achieved with UTC proprietary frequency hopping technique (ZL201020615247.1) together with soft driver control. Audio noise is eliminated due to switch frequency more than 20kHz during operation. The tone energy at below 22 kHz is minimized to avoid audio noise during operation.
