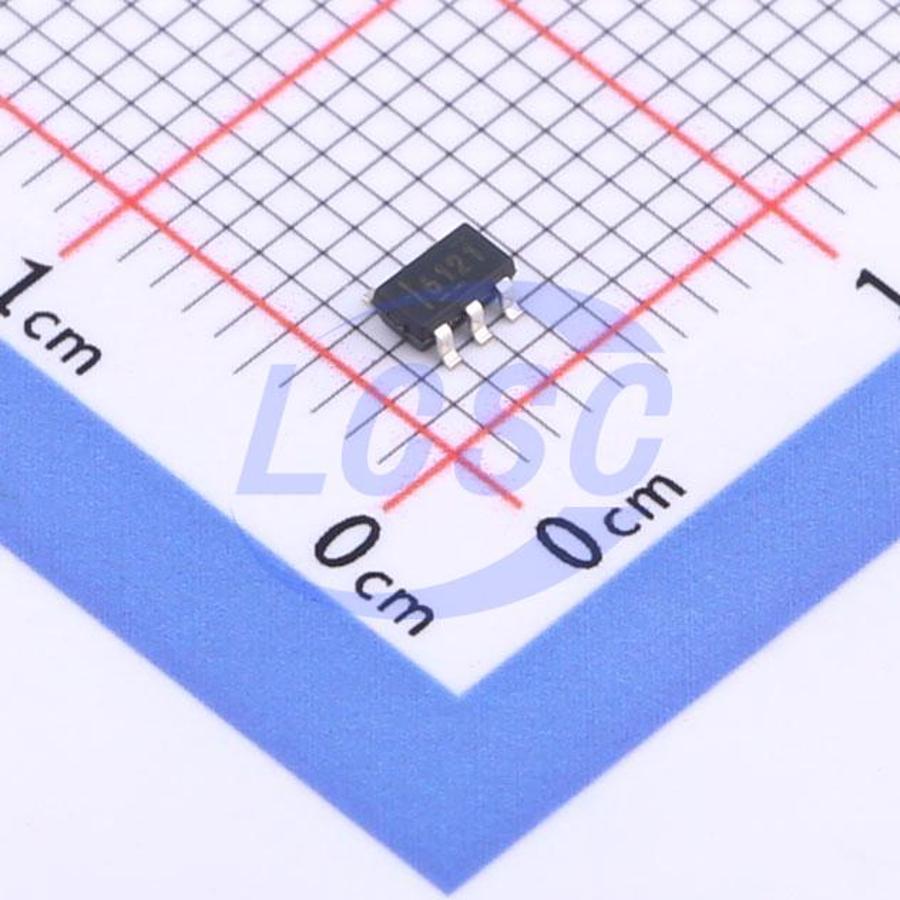

UCC24612-1DBVR

Converter Offline Flyback Topology 1MHz SOT-23-5

SOT-23-5ROHS3 CompliantActive

High-frequency synchronous rectifier controller

Manufacturer: TI
Manufacturer part #: UCC24612-1DBVR
Store part #: C2657796
Package / case: SOT-23-5
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,451 in stock

#C2657796

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹63.32	₹63.32
10+	₹50.31	₹503.10
30+	₹44.89	₹1,346.70
100+	₹37.94	₹3,794.00
500+	₹34.70	₹17,350.00
1,000+	₹32.96	₹32,960.00

Quantity (min 1)

1 × ₹63.32

₹63.32

excl. GST

₹74.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

UCC24612-1DBVR

₹63.32 for 1 + GST

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The UCC24612 is a high-performance synchronous rectifier controller and driver for standard and logic-level N-channel MOSFET power devices. By implementing near-ideal diode emulation, the UCC24612 reduces losses in the output rectifier and indirectly reduces primary-side losses. The drain-to-source (VDS) sensing control scheme allows the UCC24612 to be used with multiple topologies, such as active clamp flyback, QR/DCM/CCM flyback, and LLC. The integrated features simplify the design process, enabling the UCC24612 to perform excellently in applications at various frequencies. The wide VDD and VD operating voltage ranges facilitate easy implementation in systems with output voltages up to 28V. Efficiency and noise immunity are improved through an adaptive minimum off-time. The variant devices UCC24612-1 and UCC24612-2 have different minimum on-times to enhance noise immunity. Robust operation in CCM mode is further enhanced by a proportional gate driver and a continuous conduction mode (CCM) cycle limit pre-shutdown. The UCC24612 has multiple features that improve efficiency. A fast comparator with short propagation delay reduces switching losses. A 9.5V gate driver clamp reduces MOSFET drive losses. A frequency-dependent standby mode further reduces standby power consumption. These features help the UCC24612 become part of larger systems that meet strict efficiency standards such as the US Department of Energy (DoE) Level VI and the Code of Conduct (CoC) Tier 2. The UCC24612 comes in an SOT23-5 package.

Applications

AC/DC adapters
USB Type-C and Power Delivery AC adapters
Server and telecom power supplies
AC/DC auxiliary power supplies
Flyback with high-side SR
Flyback with low-side SR

Key features

Supports various topologies including active clamp flyback, QR, DCM, CCM flyback, and LLC
Operating frequency up to 1MHz (1MHz for UCC24612-1, 800kHz for UCC24612-2)
Wide VDD range enables direct bias from 5V to 28V output systems
4A sink, 1A source gate driver with proportional gate driver
Adaptive minimum off-time for improved noise immunity
Cycle-by-cycle pre-turnoff for improved CCM efficiency
High-side or low-side configurable
Automatic light-load and sleep mode management with 320μA standby current
16ns typical turn-off propagation delay
9.5V gate driver clamp to reduce drive losses
