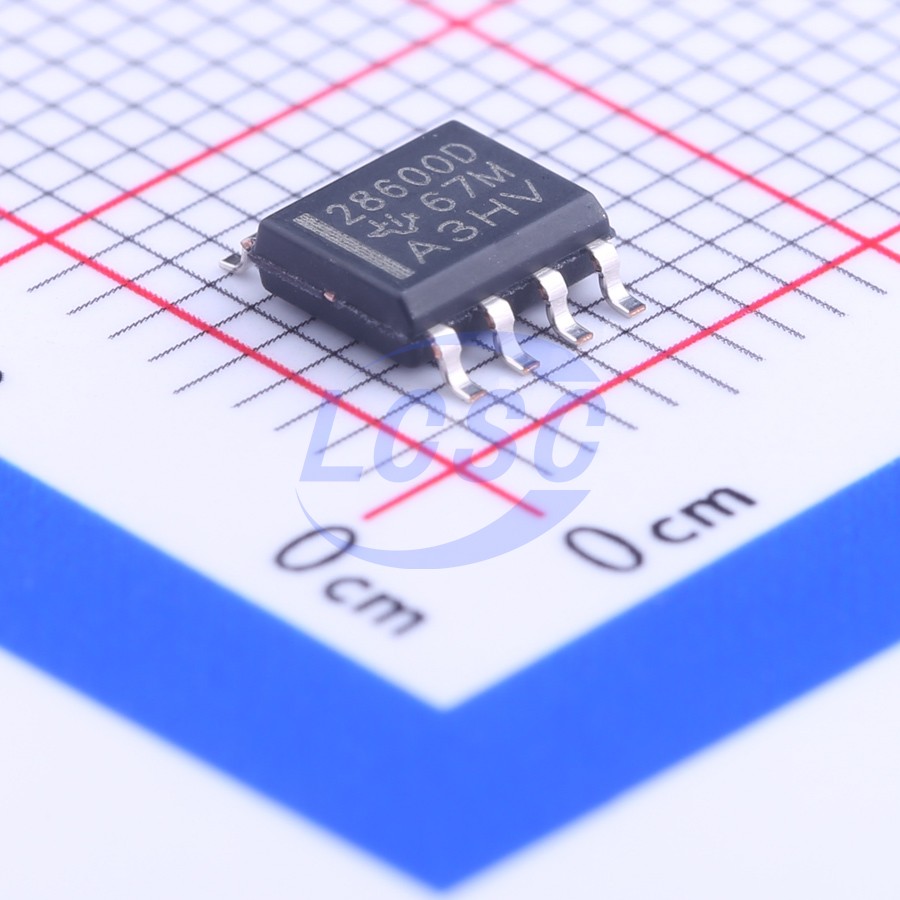

UCC28600DR
1.2A 40kHz~130kHz 650mW 8V~21V Flyback SOIC-8 AC DC Converters, Offline Switchers RoHS
SOIC-8ROHS3 CompliantActive
8-Pin Quasi-Resonant Flyback Green-Mode Controller
- Manufacturer
- TI
- Manufacturer part #
- UCC28600DR
- Store part #
- C28585
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
538 in stock
#C28585
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.07 | ₹119.07 |
| 10+ | ₹94.73 | ₹947.30 |
| 30+ | ₹82.57 | ₹2,477.10 |
| 100+ | ₹70.40 | ₹7,040.00 |
| 500+ | ₹63.01 | ₹31,505.00 |
| 1,000+ | ₹59.32 | ₹59,320.00 |
1 × ₹119.07
₹119.07
excl. GST
₹140.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC28600DR
₹119.07 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Output Current
- 1.2A
- Frequency - Switching
- 40kHz~130kHz
- Pd - Power Dissipation
- 650mW
- Voltage - Supply
- 8V~21V
- Features
- Adjustable soft-start;Light load efficient mode;Quasi-resonant/valley switching;Under-voltage lockout;Constant Voltage (CV);Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Topology
- Flyback
- Duty Cycle(Max)
- 99%
- Working Mode
- QR
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The UCC28600 is a PWM controller with advanced energy features to meet stringent world-wide energy efficiency requirements. UCC28600 integrates built-in advanced energy saving features with high-level protection features to provide cost-effective solutions for energy-efficient power supplies. UCC28600 incorporates frequency fold-back and green-mode operation to reduce the switching losses at light-load and no-load conditions. UCC28600 is available in the 8-pin SOIC package. Operating junction temperature range is -40°C to +105°C
Applications
- Bias Supplies for LCD-Monitors, LCD-TV, PDPTV, and Set Top Boxes
- AC-to-DC Adapters and Off-Line Battery Chargers
- Energy Efficient Power Supplies up to 200 W
Key features
- Green-Mode Controller With Advanced Energy Saving Features
- Quasi-Resonant Mode Operation for Reduced EMI and Low Switching Losses (Low-Voltage Valley Switching)
- Low Standby Current for Minimum System No Load Power Consumption
- Low Start-up Current: 25 μA Maximum
- Programmable Line and Load Over-Voltage Protection
- Internal Over-Temperature Protection
- Current Limit Protection Cycle-by-Cycle Power Limit Primary-Side Over-Current Hiccup Restart Mode
- 1-A Sink, -0.75-A Source TrueDriveTM Gate Drive Output
- Programmable Soft-Start
- Green-Mode Status Pin (PFC Disable Function)
