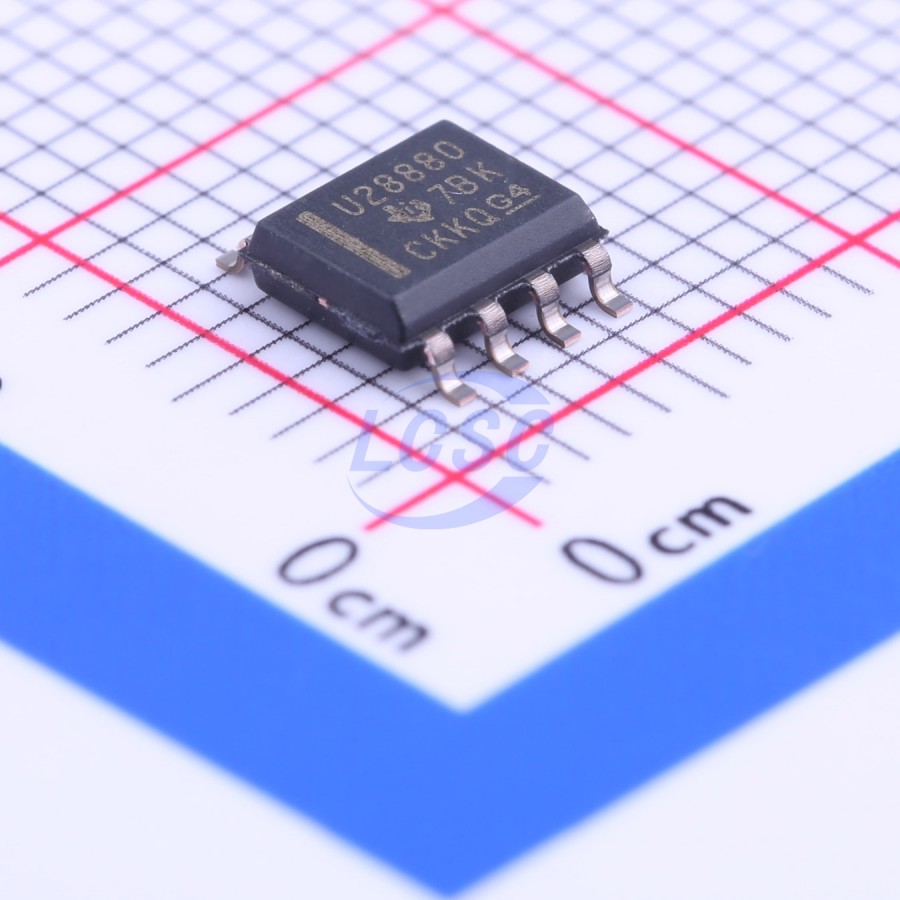

UCC28880DR
100mA 62kHz 700V 3.6V~5V SOIC-7 AC DC Converters, Offline Switchers RoHS
SOIC-7ROHS3 CompliantActive
Low quiescent current offline converter
- Manufacturer
- TI
- Manufacturer part #
- UCC28880DR
- Store part #
- C181486
- Package / case
- SOIC-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,394 in stock
#C181486
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹238.93 | ₹238.93 |
| 10+ | ₹206.20 | ₹2,062.00 |
| 30+ | ₹185.82 | ₹5,574.60 |
| 100+ | ₹164.78 | ₹16,478.00 |
| 500+ | ₹155.47 | ₹77,735.00 |
| 1,000+ | ₹151.34 | ₹1,51,340.00 |
1 × ₹238.93
₹238.93
excl. GST
₹281.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC28880DR
₹238.93 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Output Current
- 100mA
- Frequency - Switching
- 62kHz
- Voltage - Breakdown
- 700V
- Voltage - Supply
- 3.6V~5V
- Features
- High voltage direct start;Under-voltage lockout;Soft-start;Overtemperature protection (OTP);Over Current Protection;Short Circuit Protection;Under Voltage Protection
- Topology
- Buck;Buck-Boost;Flyback
- Duty Cycle(Max)
- 55%
- Feedback System
- Secondary-Side Feedback
- Working Mode
- CCM;DCM
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
The UCC28880 integrates the controller and a 700-V power MOSFET into one monolithic device. The device also integrates a high-voltage current source, enabling start up and operation directly from the rectified mains voltage. The low quiescent current of the device enables excellent efficiency. With the UCC28880 the most common converter topologies, such as buck, buckboost and flyback can be built using a minimum number of external components. The UCC28880 incorporates a soft-start feature for controlled start up of the power stage which minimizes the stress on the power-stage components.
Applications
- AC-to-DC Power Supplies (Output Current Up to 100 mA for CCM; 70 mA for DCM)
- Metering, Home Automation, Infrastructure SMPS Low-Side Buck Topology for TRIAC Driver
- Appliances, White Goods and LED Drivers
Key features
- Integrated Power MOSFET (Switch) Rated to 700-V Drain-to-Source Voltage
- Integrated High-Voltage Current Source for Internal Low-Voltage Supply Generation
- Soft Start
- Self-Biased Switcher (Start Up and Operation Directly from Rectified Mains Voltage)
- Supports Buck, Buck-Boost and Flyback Topologies
- <100 μA Device Quiescent Current
- Robust Performance with Inductor Current Runaway Prevention
- Thermal Shutdown
- Protection
- Current Limit
- Overload and Output Short Circuit
- Create a Custom Design Using the UCC28880 with the WEBENCH Power Designer
