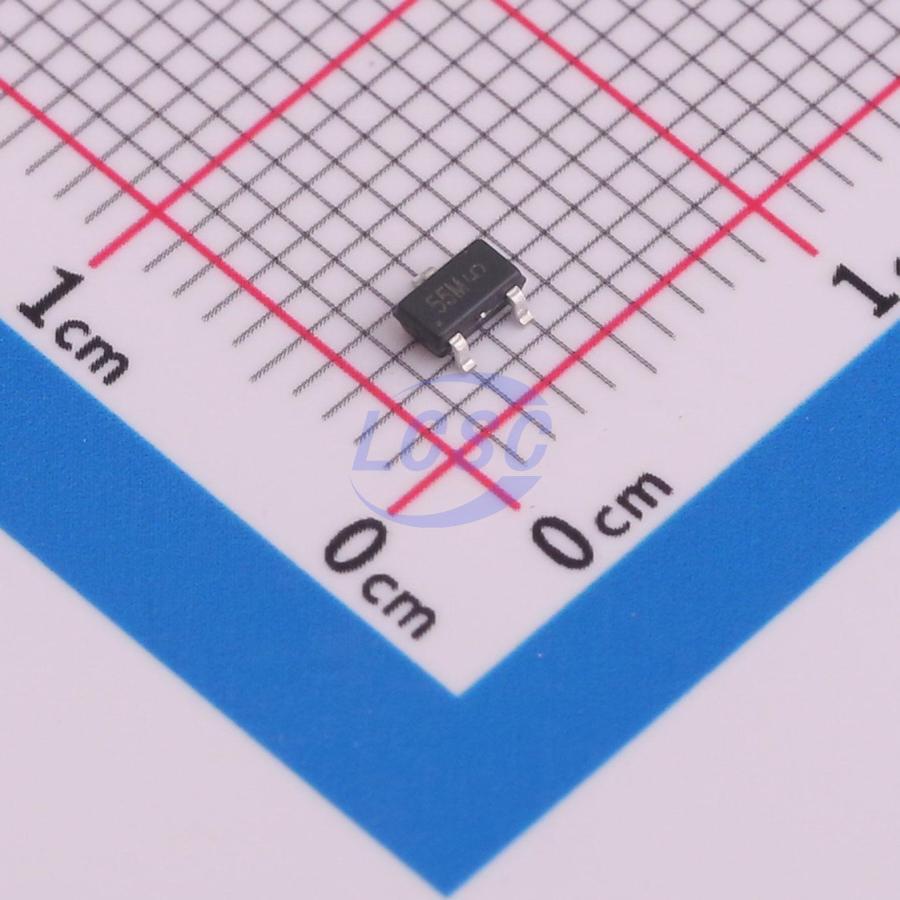

UM14233S
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS CompliantActive
300mA, Low Consumption, Wide Input Voltage Linear Regulator
- Manufacturer
- Union Semiconductor
- Manufacturer part #
- UM14233S
- Store part #
- C7528665
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C7528665
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.44 | ₹162.20 |
| 50+ | ₹25.47 | ₹1,273.50 |
| 150+ | ₹22.48 | ₹3,372.00 |
| 500+ | ₹18.76 | ₹9,380.00 |
| 3,000+ | ₹17.11 | ₹51,330.00 |
| 6,000+ | ₹16.10 | ₹96,600.00 |
5 × ₹32.44
₹162.20
excl. GST
₹191.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UM14233S
₹162.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 12V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The UM142xx series are a group of positive voltage output, high precise, high PSRR and low power consumption voltage regulator. The output voltages are selectable in 100mV steps within a range of 2.5V to 5V. It also can be customized on command. The UM142xx series have excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. The UM142xx series are available in a low profile SOT23-3& SOT89-3 package, which are lead(Pb)-free.
Applications
- Reference Voltage Source
- Battery Powered Equipment
- Hand-Hold Equipment
- Wireless LAN
- GPS Receivers
Key features
- Low Quiescent Current: 8μA at 5V
- High PSRR: 60dB Range to 10kHz
- Low Output Noise: 44μV RMS
- Low Dropout: 270mV at 150mA Load
- Low Temperature Coefficient: ±100ppm/°C
- Excellent Line Regulation: 0.05%/V
