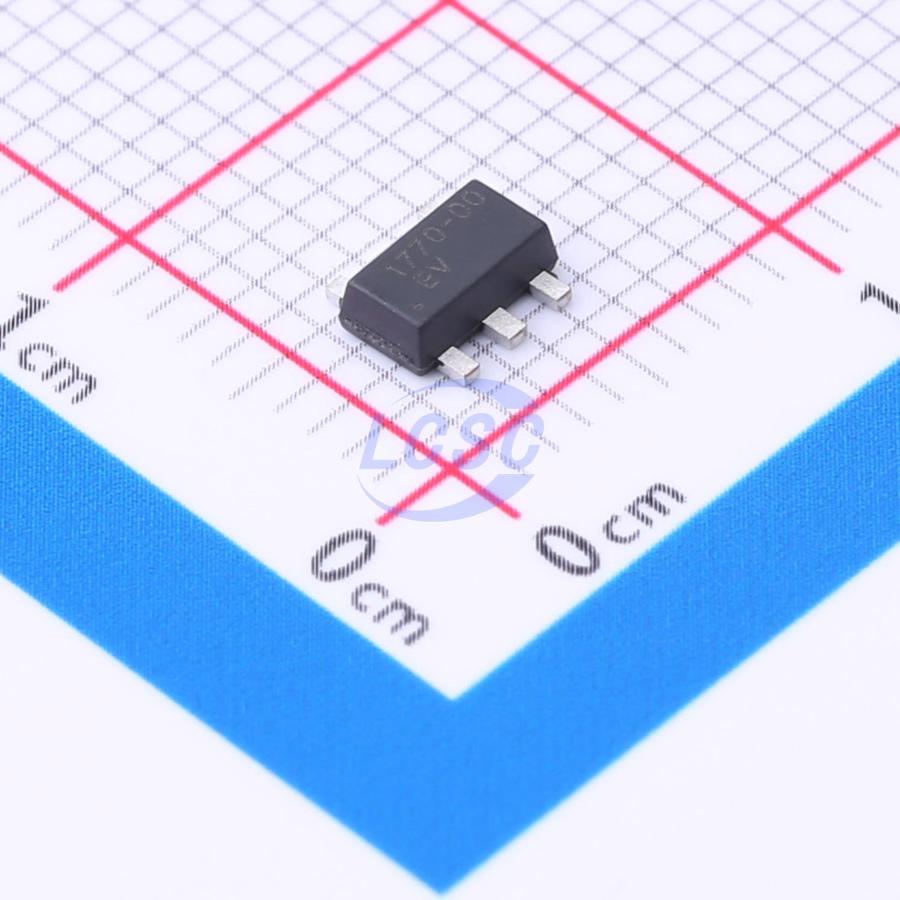

UM1770Y-00

1V~5V Positive Adjustable SOT-89-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-89-5ROHS CompliantActive

500mA, Micropower, VLDO Linear Regulator

Manufacturer: Union Semiconductor
Manufacturer part #: UM1770Y-00
Store part #: C3010789
Package / case: SOT-89-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C3010789

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
5+	₹30.50	₹152.50
50+	₹24.48	₹1,224.00
150+	₹21.91	₹3,286.50
1,000+	₹18.16	₹18,160.00
2,000+	₹16.72	₹33,440.00
5,000+	₹15.86	₹79,300.00

Quantity (min 5, multiples of 5)

5 × ₹30.50

₹152.50

excl. GST

₹179.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

UM1770Y-00

₹152.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1V~5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 140uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 6V
Output Type: Adjustable
Features: Enable control;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.19 g

Overview

The UM1770 series are VLDO (very low dropout) linear regulators designed for low power portable applications. Typical output noise is only 90μV_RMS (Fixed Output, V_OUT = 1.0V) and maximum dropout is just 320mV at the load current of 500mA. The internal P-channel MOSFET pass transistor requires no base current, allowing the device to draw only 250μA during normal operation at the maximum load current of 500mA. Other features include high output voltage accuracy, excellent transient response, under voltage lockout, stability with ultra low ESR ceramic capacitors as small as 1μF, short-circuit and thermal overload protection and output current limiting. The UM1770Y-xx series are available in SOT89-5 package and the UM1770DA-xx series are available in a low profile DFN6 2.0×2.0 package.

Applications

Bluetooth/802.11 Cards
PDAs and Notebook Computers
Portable Instruments and Battery-Powered Systems
Cellular Phones

Key features

Very Low Dropout: 320mV (Max) at 500mA
Maximum Input Voltage: 6.0V
Low Noise (10Hz to 100kHz): 90μV_RMS (Fixed Output, V_OUT = 1.0V); 60μV_RMS (Adjustable Output, V_OUT = 1.0V); 194μV_RMS (Adjustable Output, V_OUT = 3.3V); 305μV_RMS (Adjustable Output, V_OUT = 5.0V)
±2% Voltage Accuracy at 500mA
Fast Transient Response
Under Voltage Lockout
Fixed Output Voltage of UM1770Y/DA-xx: 1.0V to 4.0V with 0.1V Interval
Adjustable Output Voltage of UM1770Y/DA-00: 1.0V to 5.0V
Output Current Limit
Stable with 1μF Output Capacitor
Short-Circuit and Thermal Overload Protection
Low Profile SOT89-5 and DFN6 2.0×2.0 Packages
