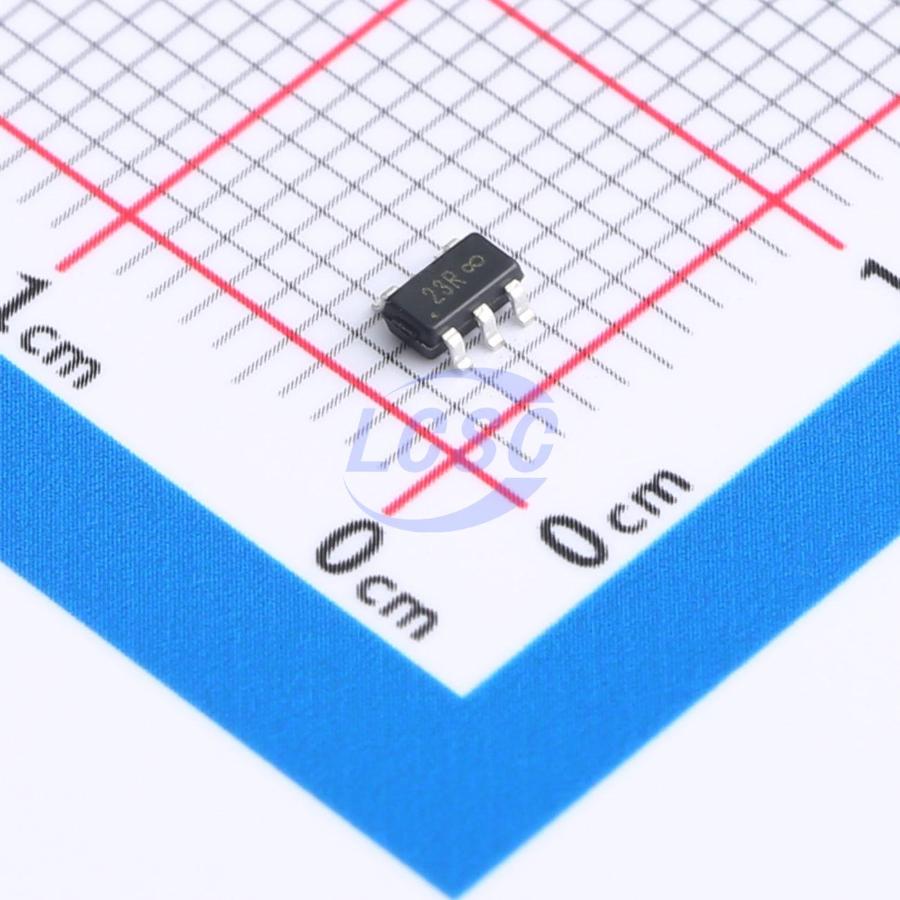

UM823RS
200ms Active Low 1V~7V 1 SOT-23-5 Supervisors RoHS
Voltage Supervisory Circuits with Watchdog Timer and Manual Reset Input
- Manufacturer
- Union Semiconductor
- Manufacturer part #
- UM823RS
- Store part #
- C7542918
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,452 in stock
#C7542918
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.94 | ₹51.94 |
| 10+ | ₹40.21 | ₹402.10 |
| 30+ | ₹35.21 | ₹1,056.30 |
| 100+ | ₹29.12 | ₹2,912.00 |
| 500+ | ₹26.30 | ₹13,150.00 |
| 1,000+ | ₹24.55 | ₹24,550.00 |
1 × ₹51.94
₹51.94
excl. GST
₹61.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UM823RS
₹51.94 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~7V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
The UM823/824/825 series are cost effective system power supply supervisory circuits designed to monitor the power supplies in digital systems. This family provides circuit initialization and timing supervision. Independent watchdog monitoring circuitry and manual reset input are included. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. The UM823/824/825 are specifically designed to ignore fast transients on VCC. Seven preprogrammed reset threshold voltages are available. All three devices have an active-low reset output, which is guaranteed to be in the correct state for VCC down to 1V. The UM823 also offers a watchdog input and manual reset input. The UM824 offers a watchdog input and a complementary active-high reset. The UM825 offers a manual reset input and a complementary active-high reset.
Applications
- Applications Using DSPs, Microcontrollers or Microprocessors
- Programmable Controls
- Computers
- Embedded Systems
- Industrial Equipments
- Intelligent Instruments
- Wireless Communications Systems
Key features
- Wide Operation Voltage Range of 1V to 7V
- Correct Logic Output Guaranteed to VCC = 1.0V
- Precision Supply-Voltage Monitor: 2.19V, 2.63V, 2.93V, 3.08V, 4.38V, 4.63V
- 200ms Reset Pulse Width
- Independent Watchdog Timer - 1.6s Timeout
- Operating Current: 4μA for L/M, 3μA for T/S/R/Z/Y
- Temperature Range: -40°C to +85°C
- Power-Supply Transient Immunity SOT23-5 and SOT353 packages
