Upsemi

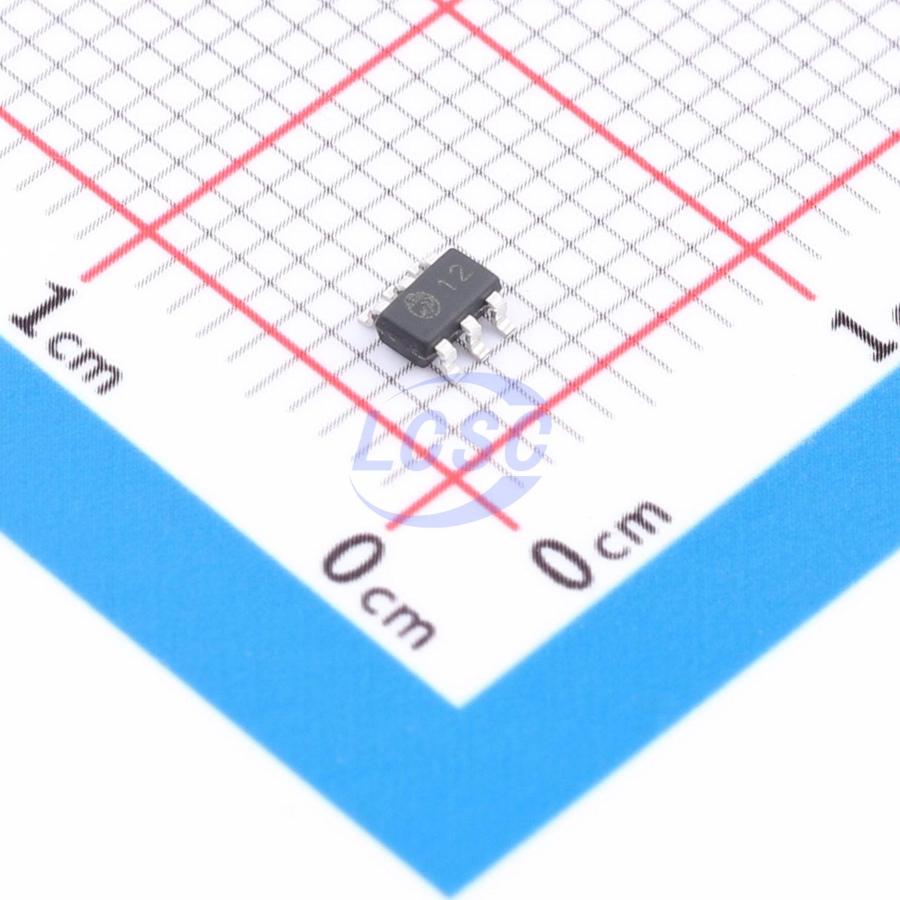

UP7312K

1.7V~40V Buck SOT-26 AC DC Converters, Offline Switchers

SOT-26RoHSActive

Manufacturer: Upsemi
Manufacturer part #: UP7312K
Store part #: C49891140
Package / case: SOT-26
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,975 in stock

#C49891140

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹9.99	₹49.95
50+	₹8.77	₹438.50
150+	₹8.16	₹1,224.00
500+	₹7.70	₹3,850.00
3,000+	₹7.34	₹22,020.00
6,000+	₹7.16	₹42,960.00

Quantity (min 5, multiples of 5)

5 × ₹9.99

₹49.95

excl. GST

₹58.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

UP7312K

₹49.95 for 5 + GST

Specifications

Operating Temperature: -40℃~+105℃
Voltage - Supply: 1.7V~40V
Topology: Buck
Features: Constant Current Mode (CC);Constant Voltage (CV)
Feedback System: Secondary-Side Feedback

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The uP7312K is a highly integrated solution for CV/CC mode switching power supply applications. The device incorporates a 1.21V voltage reference, a low voltage reference for current sensing circuitry, and two operational amplifiers. The 1.21V voltage reference combined with one op-amp forms an ideal voltage controller for adapters and battery chargers. The low voltage reference combined with the other op-amp forms an ideal current limiter for output low-side current sensing. The uP7312K provides a lower reference voltage for the current control loop, enabling higher power efficiency in switching power supply applications such as low-power chargers. The uP7312K is available in a SOT26 package.
