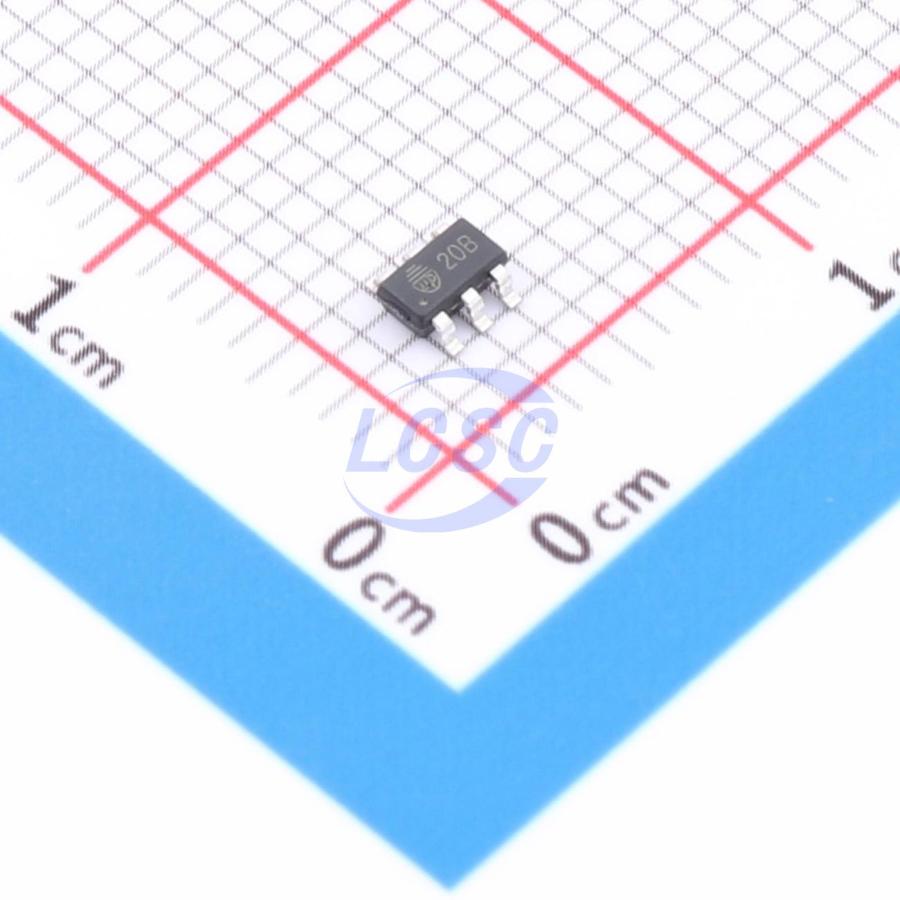

Upsemi

UP7320BK

30mA 3.5V~36V Buck SOT-23-6L AC DC Converters, Offline Switchers

SOT-23-6LRoHSActive

Manufacturer: Upsemi
Manufacturer part #: UP7320BK
Store part #: C49891139
Package / case: SOT-23-6L
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,950 in stock

#C49891139

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹9.63	₹48.15
50+	₹8.45	₹422.50
150+	₹7.87	₹1,180.50
500+	₹7.44	₹3,720.00
3,000+	₹7.08	₹21,240.00
6,000+	₹6.91	₹41,460.00

Quantity (min 5, multiples of 5)

5 × ₹9.63

₹48.15

excl. GST

₹56.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

UP7320BK

₹48.15 for 5 + GST

Specifications

Operating Temperature: -25℃~+125℃
Output Current: 30mA
Voltage - Supply: 3.5V~36V
Topology: Buck
Features: Constant Current Mode (CC);Constant Voltage (CV)

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

uP7320BK is a highly integrated solution for switching power supply applications in constant voltage/constant current mode. The device incorporates a 2.5V voltage reference and two operational amplifiers. The 2.5V reference combined with one op-amp forms an ideal voltage controller for adapters and battery chargers. A low-voltage reference combined with the other op-amp forms an ideal current limiter for output low-side current sensing. The uP7320BK is available in a SOT23-6L package.
