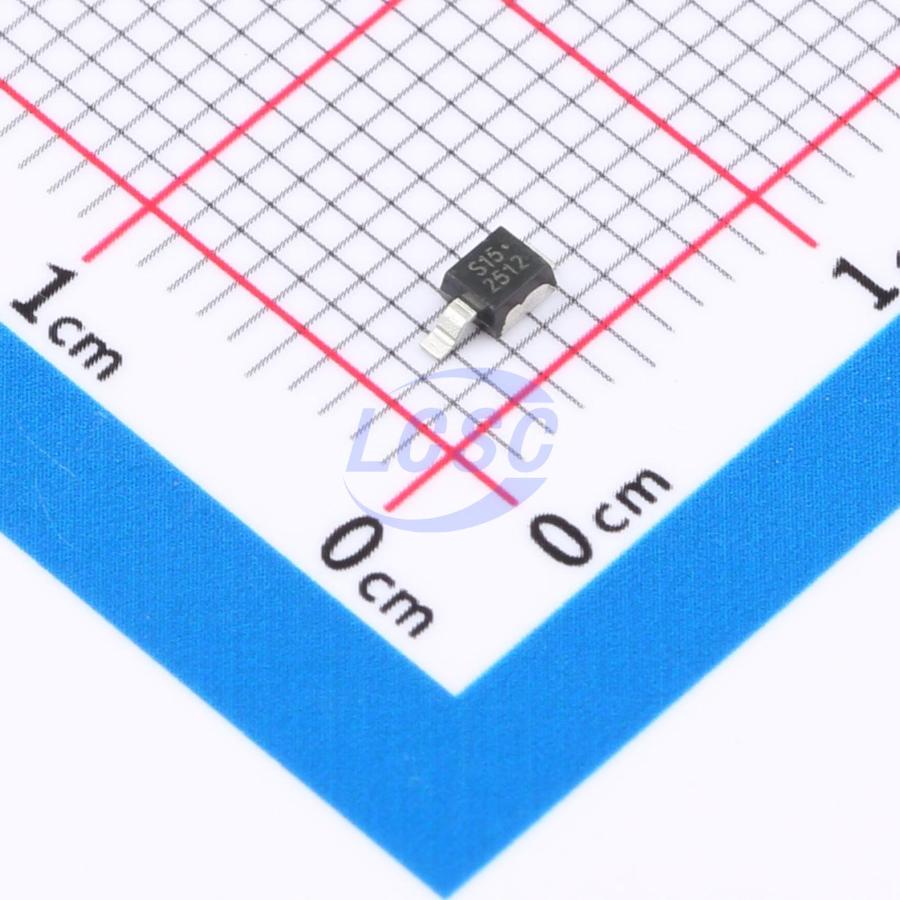

UPS115UE3/TR7
Diode 15V 1A Surface Mount DO-216AA
DIODE SCHOTTKY 15V DO-216AA
- Manufacturer
- MICROCHIP
- Manufacturer part #
- UPS115UE3/TR7
- Store part #
- C3758660
- Package / case
- DO-216AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C3758660
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.69 | ₹204.69 |
| 10+ | ₹167.76 | ₹1,677.60 |
| 30+ | ₹147.55 | ₹4,426.50 |
| 100+ | ₹124.52 | ₹12,452.00 |
| 500+ | ₹114.31 | ₹57,155.00 |
| 1,000+ | ₹109.74 | ₹1,09,740.00 |
1 × ₹204.69
₹204.69
excl. GST
₹241.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UPS115UE3/TR7
₹204.69 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+100℃
- Voltage - DC Reverse (Vr) (Max)
- 15V
- Voltage - Forward(Vf@If)
- 310mV@1A
- Reverse Leakage Current (Ir)
- 10mA@15V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
These high-efficiency Schottky rectifiers are housed in Microsemi's Powermite 1 SMT package, delivering power handling capability previously available only in larger packages. They are ideal for SMD applications operating at high frequencies. Beyond their compact footprint, the Powermite package features an all-metal base that eliminates the possibility of flux entrapment during assembly, along with a unique locking tab that serves as an integrated heatsink. The innovative design makes these devices highly compatible with automated insertion equipment.
Applications
- High-power SMT package
- Guard ring structure for transient protection
- Integrated heatsink/locking tab
- Compatible with automatic insertion equipment
- All-metal base eliminates flux entrapment
- High surge capability
- Ideal for OR-ing diode applications
Key features
- Low-profile package (< 1.1mm)
- Small footprint: 10mm²
- Ultra-low forward voltage for higher efficiency
- Low thermal resistance with direct heat dissipation via integrated heat spreader and metal base
- 8mm tape and reel packaging
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRM130LT1G#C154834onsemi · DO-216AA | onsemi | DO-216AA | 3,745 | ₹29.97 · 3,745 in stock | View |
 | STPS1L20M#C5268318ST · DO-216AA | ST | DO-216AA | 11,995 | ₹12.22 · 11,995 in stock | View |
 | MBRM120LT3G#C236085onsemi · DO-216AA | onsemi | DO-216AA | 9,195 | ₹30.24 · 9,195 in stock | View |
 | MBRM120LT1G#C32150onsemi · DO-216AA | onsemi | DO-216AA | 16,025 | ₹37.63 · 16,025 in stock | View |
 | UPS120E3/TR7#C3757164MICROCHIP · DO-216AA | MICROCHIP | DO-216AA | 18 | ₹222.57 · 18 in stock | View |
