UPS120EE3/TR7

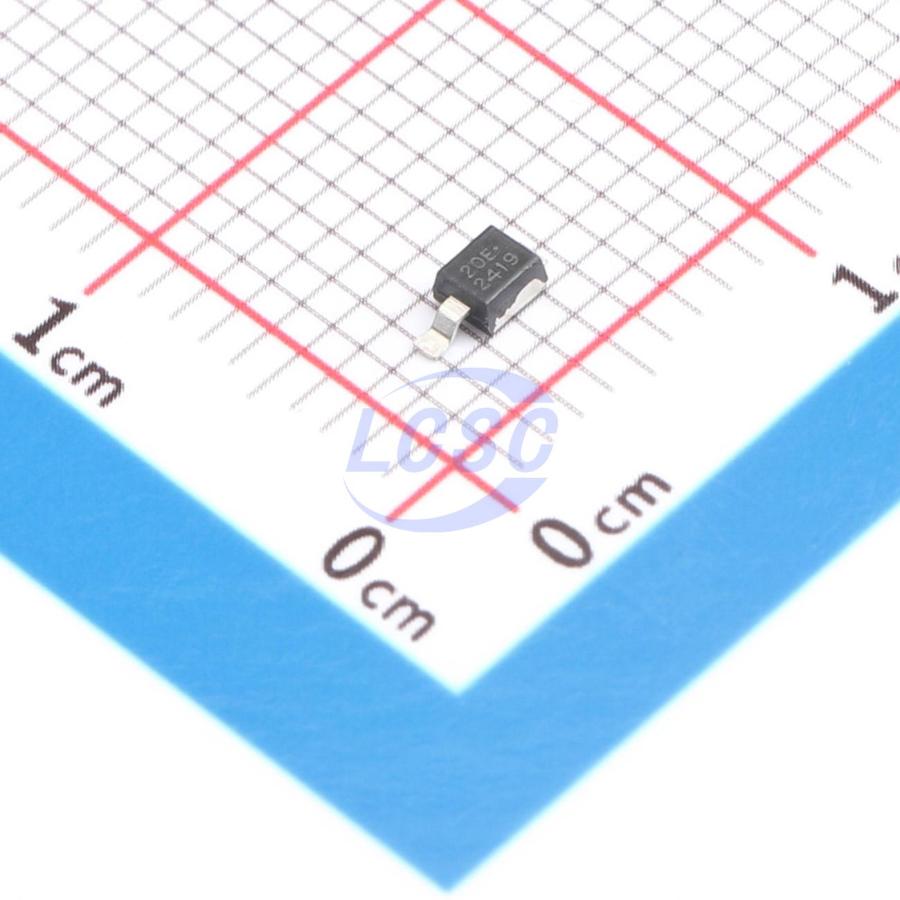

Diode 1 Independent 20V 1A Surface Mount DO-216AA
DO-216AAROHS3 CompliantActive
DIODE SCHOTTKY 20V DO-216AA
- Manufacturer
- MICROCHIP
- Manufacturer part #
- UPS120EE3/TR7
- Store part #
- C3757821
- Package / case
- DO-216AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C3757821
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.13 | ₹232.13 |
| 10+ | ₹201.84 | ₹2,018.40 |
| 30+ | ₹185.29 | ₹5,558.70 |
| 100+ | ₹166.37 | ₹16,637.00 |
| 500+ | ₹157.98 | ₹78,990.00 |
| 1,000+ | ₹154.33 | ₹1,54,330.00 |
1 × ₹232.13
₹232.13
excl. GST
₹273.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UPS120EE3/TR7
₹232.13 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 530mV@1A
- Reverse Leakage Current (Ir)
- 10uA@20V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
Single schottky rectifier assembled in Powermite 1 package which features a full metallic bottom that eliminates possibility of solder flux entrapment during assembly. The package also incorporates a unique locking tab which acts as an efficient heat path from die to mounting plane for external heat sinking with very low thermal resistance junction to case (bottom).
Applications
- switching and regulating power supplies
- charge pump circuits
Key features
- Low forward voltage drop
- Low profile package height
- Efficient heat path with integral locking bottom metal tab
- Low thermal resistance DO-216AA package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRM120ET1G#C152484onsemi · DO-216AA | onsemi | DO-216AA | 9,780 | ₹50.47 · 9,780 in stock | View |
 | NRVBM120ET1G#C893714onsemi · DO-216AA | onsemi | DO-216AA | 32 | ₹43.28 · 32 in stock | View |
 | MBRM130LT3G#C897014onsemi · DO-216AA | onsemi | DO-216AA | 655 | ₹28.48 · 655 in stock | View |
 | MBRM140T1G#C132634onsemi · DO-216AA | onsemi | DO-216AA | 25,625 | ₹25.12 · 25,625 in stock | View |
 | MBRM140T3G#C145540onsemi · DO-216AA | onsemi | DO-216AA | 13,720 | ₹26.31 · 13,720 in stock | View |
