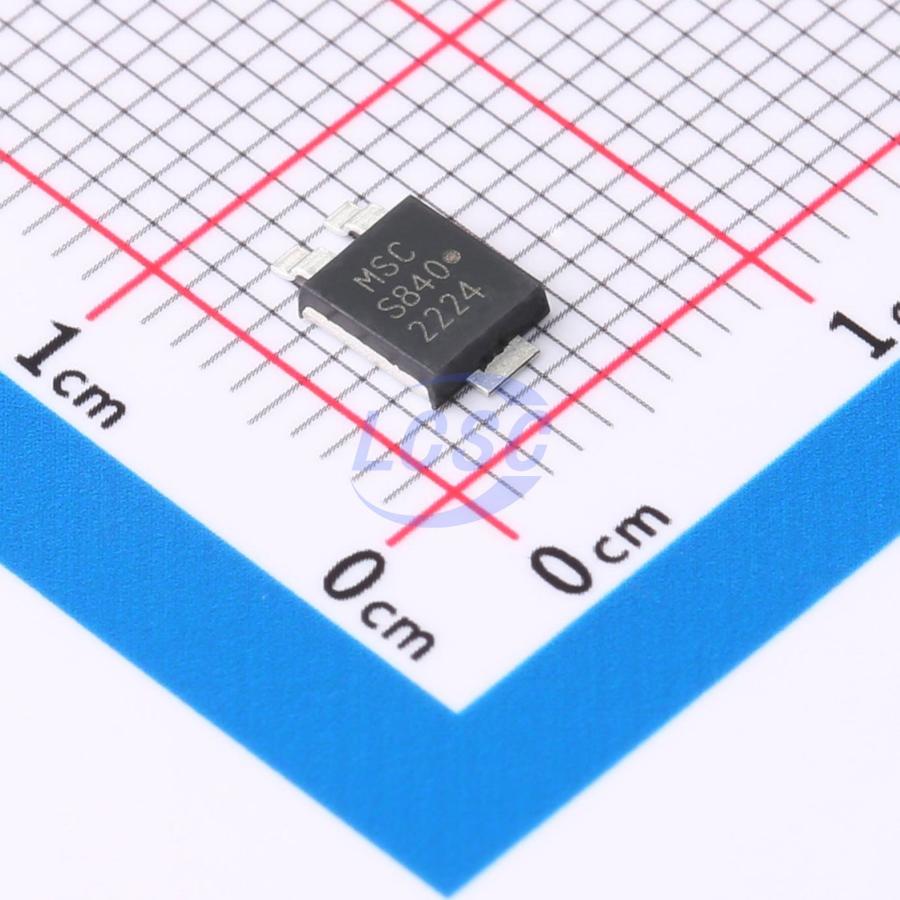

UPS840E3/TR13
Diode 40V 8A
DIODE SCHOTTKY 40V
- Manufacturer
- MICROCHIP
- Manufacturer part #
- UPS840E3/TR13
- Store part #
- C3758317
- Package / case
- SMD,6.6x4.3mm
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C3758317
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹334.40 | ₹334.40 |
| 10+ | ₹283.80 | ₹2,838.00 |
| 30+ | ₹252.15 | ₹7,564.50 |
| 100+ | ₹219.86 | ₹21,986.00 |
| 500+ | ₹205.21 | ₹1,02,605.00 |
| 1,000+ | ₹198.75 | ₹1,98,750.00 |
1 × ₹334.40
₹334.40
excl. GST
₹394.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
UPS840E3/TR13
₹334.40 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 450mV@8A
- Reverse Leakage Current (Ir)
- 5mA@40V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.284 g
Overview
The UPS840e3 offers an exceptionally small and powerful RoHS compliant package for a 40V, 8 Amp Schottky rectifier. Competing solutions typically come only in much larger packages. It is an ideal, small footprint, surface mount solution with a full metallic bottom side and is compatible with automatic insertion equipment. In combination with Microsemi's unique internal locking tab on the die, it provides a very low thermal resistance path to move heat out of the package. The resulting lowering of junction temperature in the die provides for lower leakage current and power loss.
Applications
- High-frequency switching power supplies
- Inverters
- Free-wheeling diode applications
- Charge pump circuits
- Polarity protection applications
Key features
- Low profile package (< 1.1mm)
- Small footprint: 32mm² (4.826×6.604mm) or 0.05in² (0.190 x 0.260 inches)
- Plastic package has Underwriters Laboratory Flammability classification 94V - 0
- RoHS compliant
