UTCDatasheet (PDF)

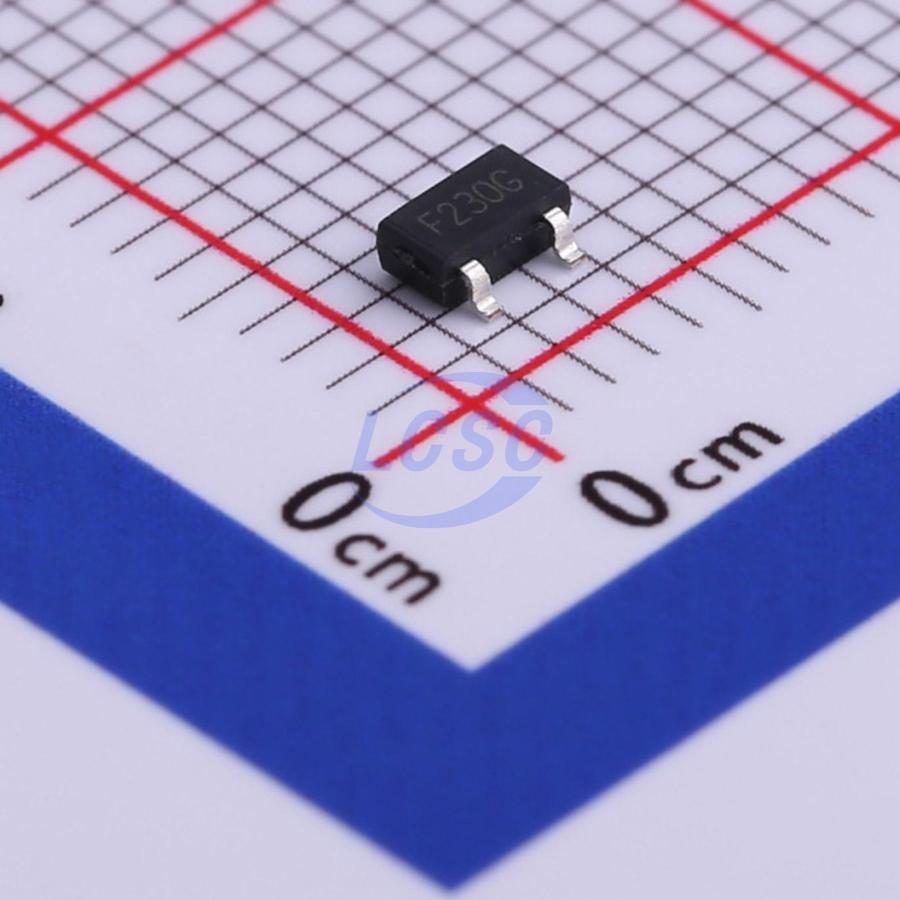

UR6225G-30-AE3-3-R
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
CMOS IC Positive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- UR6225G-30-AE3-3-R
- Store part #
- C484533
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,215 in stock
#C484533
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.81 | ₹54.05 |
| 50+ | ₹8.60 | ₹430.00 |
| 150+ | ₹7.50 | ₹1,125.00 |
| 500+ | ₹6.68 | ₹3,340.00 |
| 3,000+ | ₹6.02 | ₹18,060.00 |
| 6,000+ | ₹5.69 | ₹34,140.00 |
5 × ₹10.81
₹54.05
excl. GST
₹63.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UR6225G-30-AE3-3-R
₹54.05 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 150mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The UTC UR6225 is a positive voltage output, three-pin regulator that provides a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The UTC UR6225 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient responses to load variations have improved in comparison to the existing series.
Key features
- Maximum Output Current: 300mA (Within Max. Power Dissipation, VOUT = 5.0V)
- Output Voltage Range: 1.5V ~ 6.0V in 0.1V Increments (1.5V ~ 1.9V for Custom Products)
- Highly Accurate: Output Voltage ±2% (±1% for Semi-Custom Products)
- Low Power Consumption: Typ. 2.0μA @ VIN = 5.0V
- Output Voltage Temperature Characteristics: Typ. ±100ppm/°C
- Input Stability: Typ. 0.2%
- Small Input-Output Differential: IOUT = 100mA @ VOUT = 5.0V with a 0.12V Differential.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LK7530-S#C28314552LANKE · SOT-23-3L | LANKE | SOT-23-3L | 2,140 | ₹4.78 · 2,140 in stock | View |
 | AP2210N-3.0TRG1#C500771DIODES · SOT-23 | DIODES | SOT-23 | 10 | ₹21.75 · 10 in stock | View |
 | TPMCP1702T-3002E/CB#C41408085TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 460 | ₹32.31 · 460 in stock | View |
 | TPMCP1703T-3002E/CB#C41408086TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 485 | ₹32.44 · 485 in stock | View |
 | SSP6202P302MR#C330934Siproin · SOT-23 | Siproin | SOT-23 | 2,160 | ₹16.35 · 2,160 in stock | View |
