UTCDatasheet (PDF)

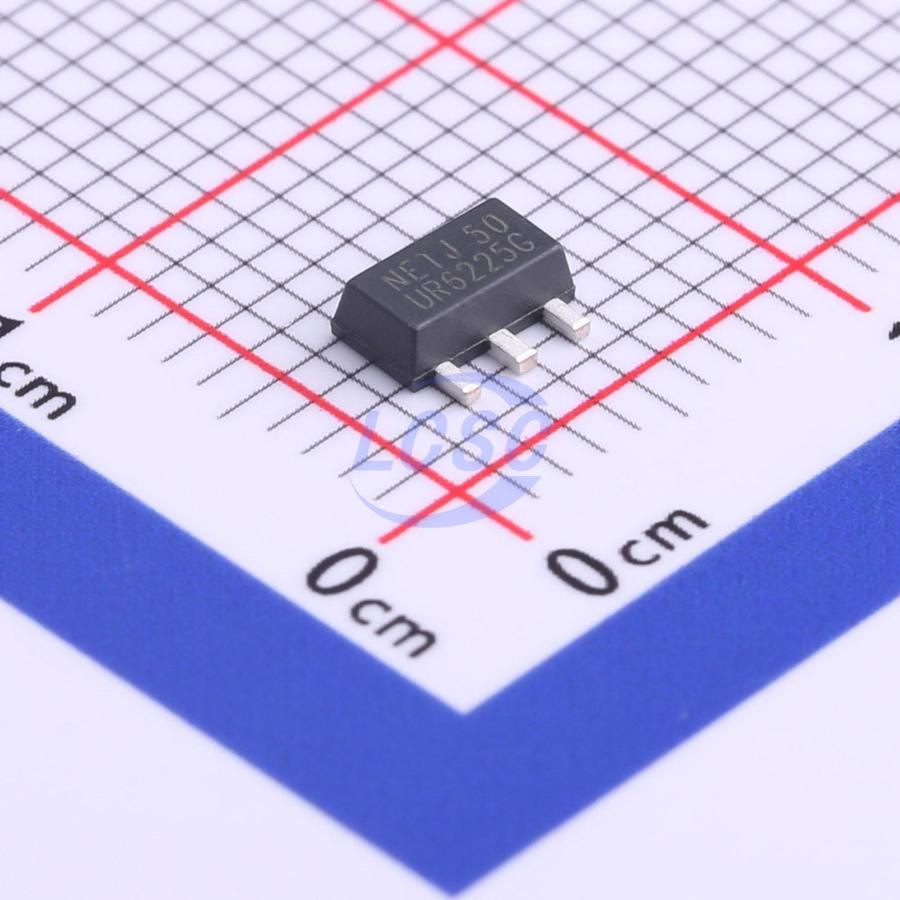

UR6225G-50-AB3-C-R
5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
CMOS IC Positive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- UR6225G-50-AB3-C-R
- Store part #
- C696250
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,745 in stock
#C696250
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹10.69 | ₹10.69 |
| 10+ | ₹9.42 | ₹94.20 |
| 30+ | ₹8.78 | ₹263.40 |
| 100+ | ₹8.31 | ₹831.00 |
| 500+ | ₹7.94 | ₹3,970.00 |
| 1,000+ | ₹7.74 | ₹7,740.00 |
1 × ₹10.69
₹10.69
excl. GST
₹12.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UR6225G-50-AB3-C-R
₹10.69 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 10V
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.155 g
Overview
The UTC UR6225 is a positive voltage output, three-pin regulator that provides a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The UTC UR6225 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient responses to load variations have improved in comparison to the existing series.
Key features
- Maximum Output Current: 300mA (Within Max. Power Dissipation, VOUT = 5.0V)
- Output Voltage Range: 1.5V ~ 6.0V in 0.1V Increments (1.5V ~ 1.9V for Custom Products)
- Highly Accurate: Output Voltage ±2% (±1% for Semi-Custom Products)
- Low Power Consumption: Typ. 2.0μA @ VIN = 5.0V
- Output Voltage Temperature Characteristics: Typ. ±100ppm/°C
- Input Stability: Typ. 0.2%
- Small Input-Output Differential: IOUT = 100mA @ VOUT = 5.0V with a 0.12V Differential.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC62FP5002PR#C216653TOREX · SOT-89 | TOREX | SOT-89 | 835 | ₹45.42 · 835 in stock | View |
 | HT7250-MS#C22462606MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 910 | ₹12.04 · 910 in stock | View |
 | XC6201P502PR-MS#C22462574MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 225 | ₹16.86 · 225 in stock | View |
 | XC6201P502PR-G-HXY#C42411834HXY MOSFET · SOT-89 | HXY MOSFET | SOT-89 | 965 | ₹18.52 · 965 in stock | View |
 | HT7350-1#C19627030HXY MOSFET · SOT-89 | HXY MOSFET | SOT-89 | 400 | ₹10.08 · 400 in stock | View |
