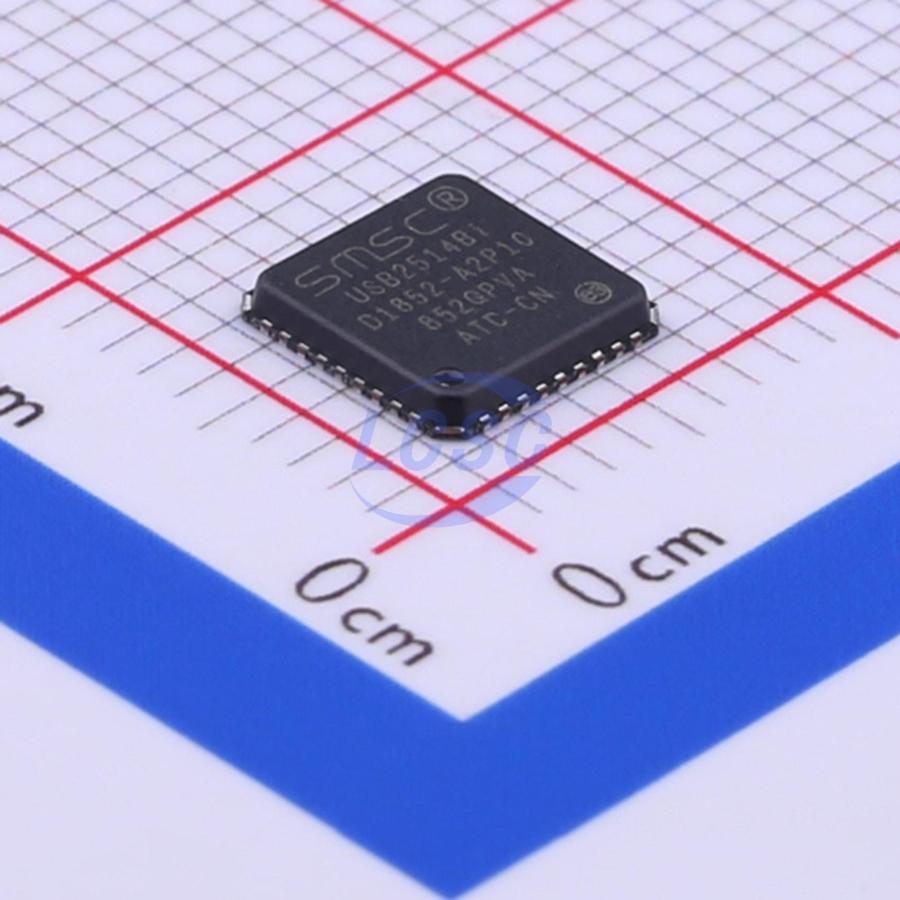

USB2514BI-AEZG-TR MICROCHIP
MICROCHIP

USB2514BI-AEZG-TR

4 480Mbps TQFN-36-EP(6x6) Controllers RoHS

PopularTQFN-36-EP(6x6)ROHS3 CompliantActive

USB 2.0 Hi-Speed Hub Controller

Manufacturer
MICROCHIP
Manufacturer part #
USB2514BI-AEZG-TR
Store part #
C58940
Package / case
TQFN-36-EP(6x6)
Category
Controllers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,385 in stock

#C58940

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹318.63₹318.63
10+₹270.42₹2,704.20
30+₹240.23₹7,206.90
100+₹209.17₹20,917.00
500+₹195.26₹97,630.00
1,000+₹189.19₹1,89,190.00

1 × ₹318.63

₹318.63

excl. GST

₹375.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

USB2514BI-AEZG-TR

₹318.63 for 1 + GST

Specifications

Features
BC1.1 protocol support;Port power switch control;Downstream port power switch;Port status monitoring;Programmable signal drive;Internal regulator;ESD protection;Overcurrent Protection
Voltage - Supply
3.3V
Operating Temperature
-40℃~+85℃
Type
Hub
Memory Interface
I2C;SMBus
USB Protocol
USB 2.0
Number of Channels
4
Data Rate
480Mbps

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.272 g

Overview

The Microchip USB251xB/xBi hub is a family of lowpower, configurable, MTT (multi transaction translator) hub controller IC products for embedded USB solutions. The x in the part number indicates the number of downstream ports available, while the B indicates battery charging support. The hub supports low-speed, full-speed, and hi-speed (if operating as a hispeed hub) downstream devices on all of the enabled downstream ports.

Applications

  • LCD monitors and TVs
  • Multi-function USB peripherals
  • PC motherboards
  • Set-top boxes, DVD players, DVR/PVR
  • Printers and scanners
  • PC media drive bay
  • Portable hub boxes
  • Mobile PC docking
  • Embedded systems

Key features

  • USB251xB/xBi products are fully footprint compatible with USB251x/xi/xA/xAi products as direct drop-in replacements. Cost savings include using the same PCB components and application of USB-IF Compliance by Similarity
  • Full power management with individual or ganged power control of each downstream port
  • Fully integrated USB termination and pull-up/pulldown resistors
  • Supports a single external 3.3V supply source; internal regulators provide 1.2V internal core voltage
  • Onboard 24 MHz crystal driver or external 24 MHz clock input
  • Customizable vendor ID, product ID, and device ID
  • 4 kilovolts of HBM JESD22-A114F ESD protection (powered and unpowered)
  • Supports self- or bus-powered operation
  • Supports the USB Battery Charging specification Rev. 1.1 for Charging Downstream Ports (CDP)
  • The USB251xB/xBi offers the following package: 36-pin QFN (6x6 mm) RoHS compliant package
  • USB251xBi products support the industrial temperature range of -40°C to +85°C
  • USB251xB products support the extended commercial temperature range of 0°C to +85°C

Alternatives

Similar parts — check the datasheet before substituting.
