VISHAYDatasheet (PDF)

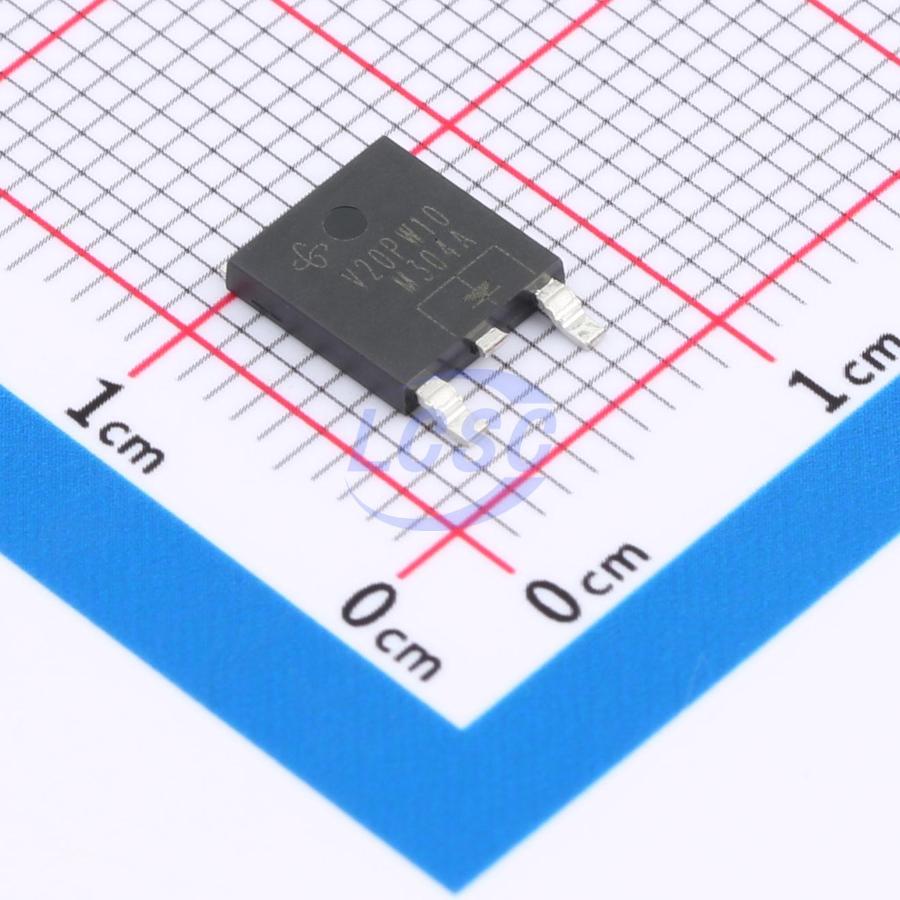

V20PW10HM3/I
Diode Independent 100V 20A Surface Mount TO-252-3
TO-252-3ROHS3 CompliantActive
DIODE SCHOTTKY 100V TO-252-3
- Manufacturer
- VISHAY
- Manufacturer part #
- V20PW10HM3/I
- Store part #
- C7095849
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C7095849
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹177.76 | ₹177.76 |
| 10+ | ₹147.77 | ₹1,477.70 |
| 30+ | ₹131.25 | ₹3,937.50 |
| 100+ | ₹112.56 | ₹11,256.00 |
| 500+ | ₹104.31 | ₹52,155.00 |
| 1,000+ | ₹100.40 | ₹1,00,400.00 |
1 × ₹177.76
₹177.76
excl. GST
₹209.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V20PW10HM3/I
₹177.76 for 1 + GST
Specifications
- Diode Configuration
- Standalone
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 860mV@20A
- Reverse Leakage Current (Ir)
- 500uA@100V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.393 g
Overview
Applications
- For low-voltage high-frequency DC/DC converters, freewheeling diodes, and polarity protection applications.
Key features
- Ultra-thin profile — typical height 1.3mm
- Trench MOS Schottky technology
- Suitable for automated assembly
- Low forward voltage drop, low power loss
- High-efficiency operation
- MSL Level 1 per J-STD-020, LF max peak 260°C
- AEC-Q101 qualified parts available
- Automotive order code: base P/N HM3
