VISHAYDatasheet (PDF)

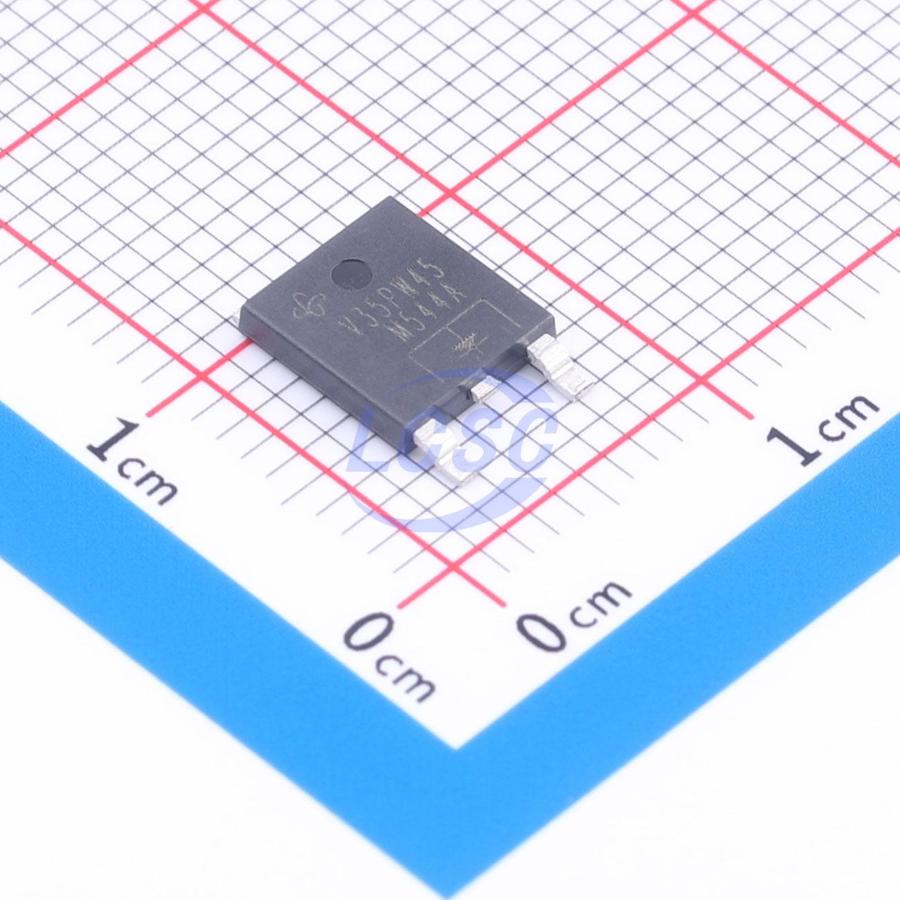

V35PW45HM3/I
1 Independent 45V 620mV@35A 35A TO-252-3 Single Diodes RoHS
TO-252-3ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V35PW45HM3/I
- Store part #
- C7140637
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C7140637
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹319.81 | ₹319.81 |
| 10+ | ₹268.42 | ₹2,684.20 |
| 30+ | ₹236.12 | ₹7,083.60 |
| 100+ | ₹202.95 | ₹20,295.00 |
| 500+ | ₹187.99 | ₹93,995.00 |
| 1,000+ | ₹181.70 | ₹1,81,700.00 |
1 × ₹319.81
₹319.81
excl. GST
₹377.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V35PW45HM3/I
₹319.81 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 620mV@35A
- Reverse Leakage Current (Ir)
- 2.5mA@45V
- Non-Repetitive Peak Forward Surge Current
- 260A
- Current - Rectified
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.425 g
Overview
High current density SMT TMBS (Trench MOS Barrier Schottky) rectifier. Ultra-low V<sub>F</sub> = 0.27 V at I<sub>F</sub> = 5 A. Part of the eSMP series in SlimDPAK (TO-252AE) package.
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-low profile, typical height 1.3 mm
- Trench MOS Schottky technology
- Ideal for automated placement
- Low forward voltage drop, low power dissipation, high operating efficiency
- MSL Level 1 per J-STD-020, LF maximum peak temperature 260°C
- AEC-Q101 qualified versions available
- Automotive ordering code: NHM3 for base part number
