VISHAYDatasheet (PDF)

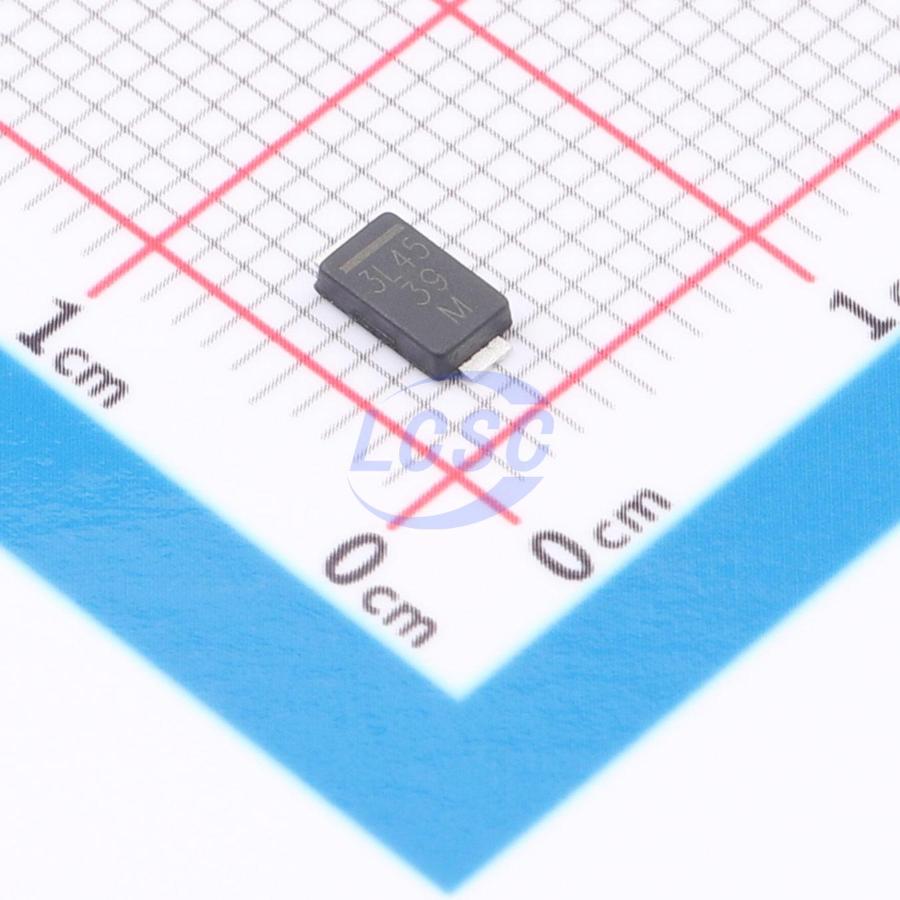

V3PAL45HM3_A/I
1 Independent 45V 540mV@3A 3A DO-221BC(SMPA) Single Diodes RoHS
DO-221BC(SMPA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V3PAL45HM3_A/I
- Store part #
- C6345700
- Package / case
- DO-221BC(SMPA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
319 in stock
#C6345700
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.37 | ₹94.37 |
| 10+ | ₹78.03 | ₹780.30 |
| 30+ | ₹69.87 | ₹2,096.10 |
| 100+ | ₹61.90 | ₹6,190.00 |
| 500+ | ₹56.97 | ₹28,485.00 |
| 1,000+ | ₹54.60 | ₹54,600.00 |
1 × ₹94.37
₹94.37
excl. GST
₹111.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
V3PAL45HM3_A/I
₹94.37 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 540mV@3A
- Reverse Leakage Current (Ir)
- 450uA@45V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.068 g
Overview
Applications
- For use in low-voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Ultra-thin design — typical height 0.95mm
- Compatible with automated pick-and-place assembly
- Trench MOS Schottky technology
- Low power consumption, high efficiency
- Low forward voltage drop
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Automotive-grade ordering code; base part number HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| V3PAL45-M3/I#C6908674VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | 882 | ₹83.04 · 882 in stock | View | |
 | V4PAL45-M3/I#C7141254VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | 360 | ₹102.35 · 360 in stock | View |
 | V4PAL45HM3_A/I#C6590362VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | 6 | ₹165.94 · 6 in stock | View |
 | V3PAN50-M3/I#C7140908VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | 8 | ₹69.54 · 8 in stock | View |
 | V8PAL45-M3/I#C3759194VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | 29 | ₹72.14 · 29 in stock | View |
