VBsemi ElecDatasheet (PDF)

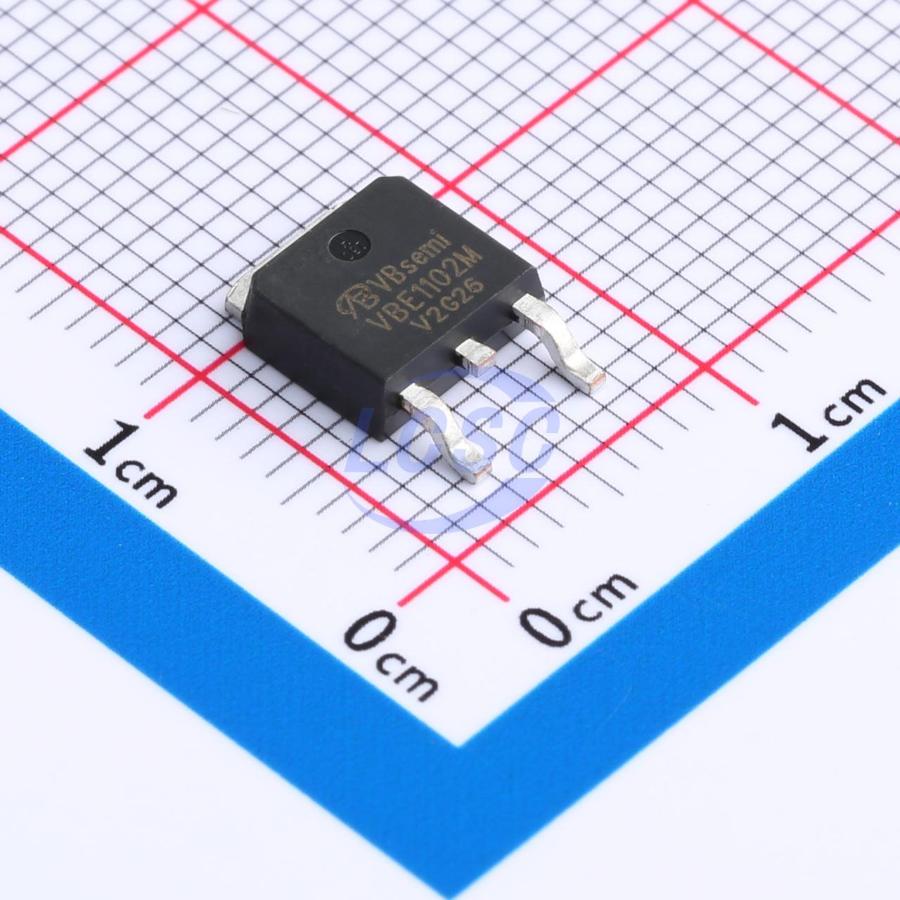

VBE1102M
N-Channel 100V 7.5A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 7.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE1102M
- Store part #
- C5179585
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5179585
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.30 | ₹77.30 |
| 10+ | ₹61.76 | ₹617.60 |
| 30+ | ₹55.04 | ₹1,651.20 |
| 100+ | ₹46.85 | ₹4,685.00 |
| 500+ | ₹41.17 | ₹20,585.00 |
| 1,000+ | ₹39.08 | ₹39,080.00 |
1 × ₹77.30
₹77.30
excl. GST
₹91.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE1102M
₹77.30 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 150pF
- Current - Continuous Drain(Id)
- 7.5A
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
Key features
- Halogen-free According to IEC 61249 Definition
- Available in Tape and Reel
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- 175 °C Operating Temperature
- Fast Switching
- Ease of Paralleling
