VBsemi ElecDatasheet (PDF)

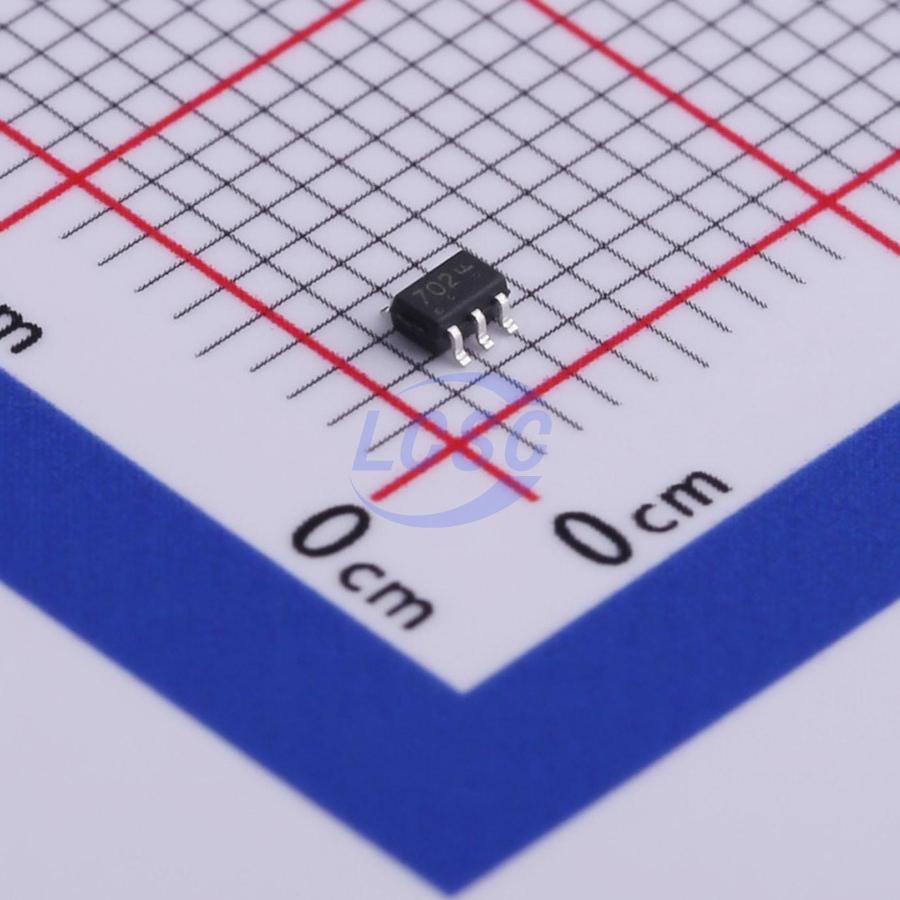

VBK362K
N-Channel Array 60V 300mA 350mW Surface Mount SC-70-6
SC-70-6RoHSActive
MOSFET N-CH ARR 60V 300mA SC-70-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBK362K
- Store part #
- C516948
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C516948
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.17 | ₹60.85 |
| 50+ | ₹9.79 | ₹489.50 |
| 150+ | ₹8.60 | ₹1,290.00 |
| 500+ | ₹7.70 | ₹3,850.00 |
| 3,000+ | ₹6.99 | ₹20,970.00 |
| 6,000+ | ₹6.63 | ₹39,780.00 |
5 × ₹12.17
₹60.85
excl. GST
₹71.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBK362K
₹60.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 6pF
- Current - Continuous Drain(Id)
- 300mA
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 2.5Ω@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 400pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Low on-resistance: 2.5 Ω
- Low threshold: 2 V (typical)
- Low input capacitance: 25 pF
- Fast switching speed: 25 ns
- Low input and output leakage current
- Trench power MOSFET
- Compliant with RoHS Directive 2002/95/EC
