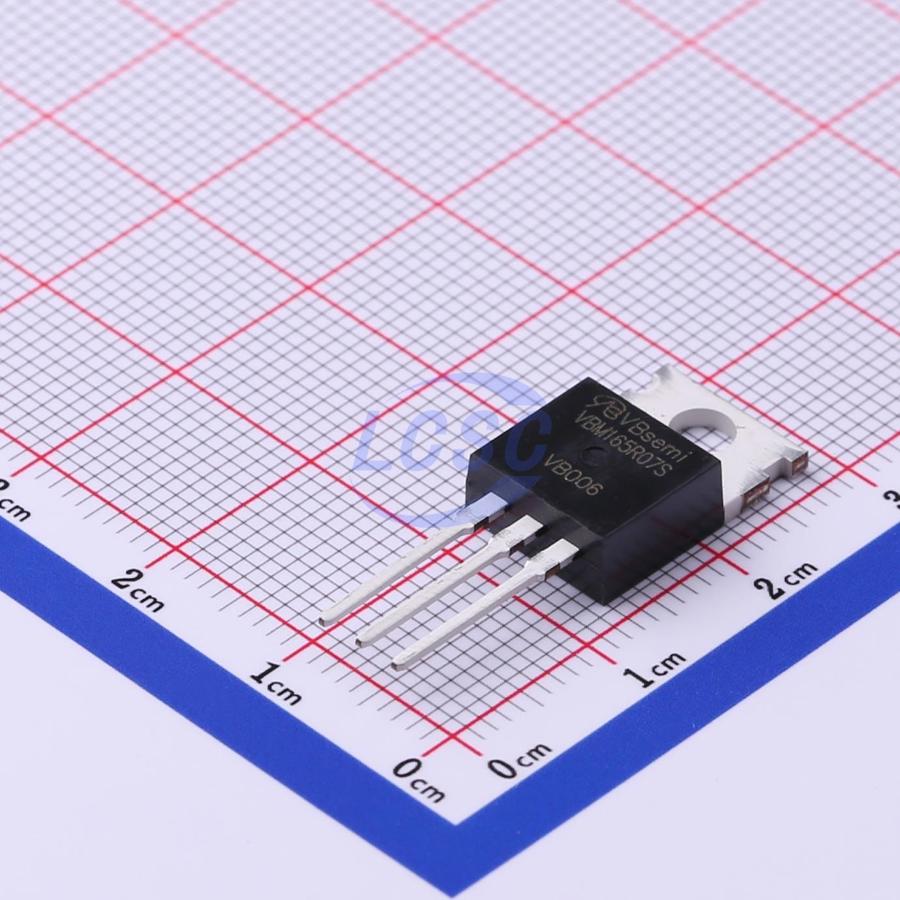

VBM165R07S
N-Channel 650V 6A 83W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 6A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM165R07S
- Store part #
- C516957
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C516957
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.36 | ₹121.36 |
| 10+ | ₹97.02 | ₹970.20 |
| 50+ | ₹84.43 | ₹4,221.50 |
| 100+ | ₹72.46 | ₹7,246.00 |
| 500+ | ₹65.08 | ₹32,540.00 |
| 1,000+ | ₹61.48 | ₹61,480.00 |
1 × ₹121.36
₹121.36
excl. GST
₹143.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM165R07S
₹121.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 610mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.7 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on × Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF740APBF-VB#C7524932VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 21 | ₹225.06 · 21 in stock | View |
 | FQPF16N60-VB#C19190272VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹228.46 · 18 in stock | View |
 | 12N60 TO220-VB#C20417635VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹225.81 · 8 in stock | View |
 | 6R600P TO220-VB#C20417646VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹225.81 · 10 in stock | View |
 | STP9NM50N-VB#C20626324VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹225.81 · 8 in stock | View |
