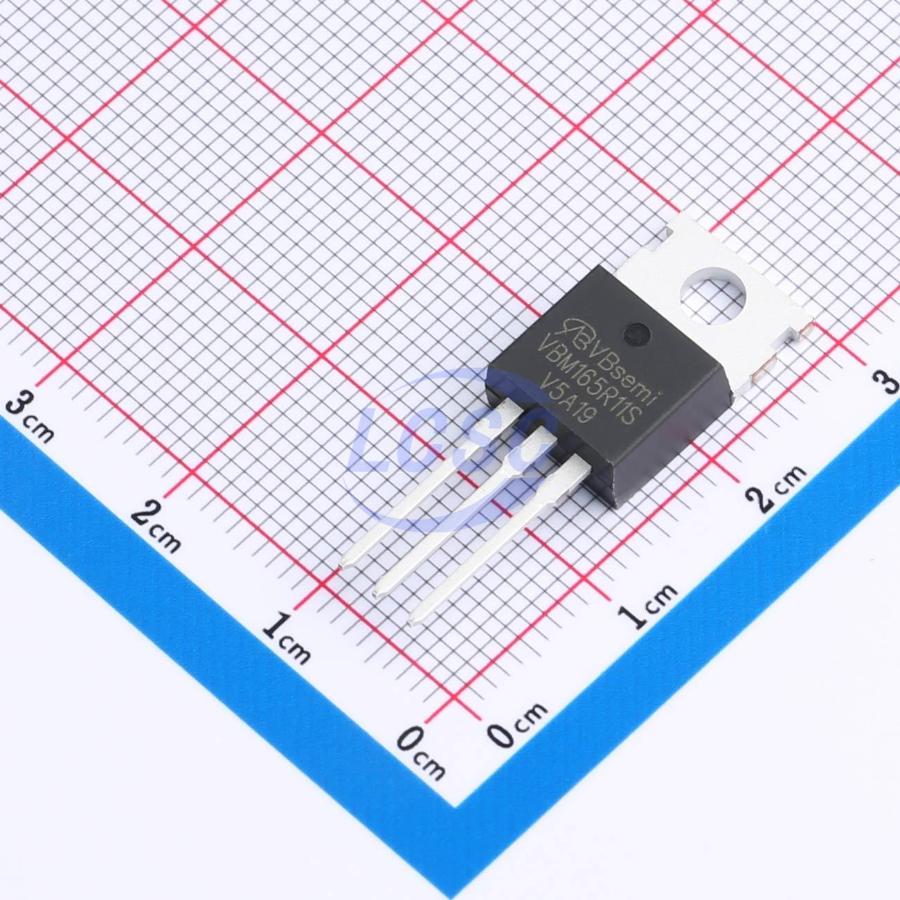

VBM165R11S
N-Channel 650V 11A 83W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 11A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM165R11S
- Store part #
- C42412848
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412848
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.72 | ₹264.72 |
| 10+ | ₹231.42 | ₹2,314.20 |
| 50+ | ₹149.34 | ₹7,467.00 |
| 100+ | ₹128.89 | ₹12,889.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.38 | ₹1,15,380.00 |
1 × ₹264.72
₹264.72
excl. GST
₹312.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM165R11S
₹264.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 11A
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 420mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.08 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HMS8N70-VB#C20754997VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹171.58 · 7 in stock | View |
 | APT11N80KC3-VB#C22389908VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹378.10 · 5 in stock | View |
 | STP9N60M2-VB#C18212539VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 19 | ₹143.45 · 19 in stock | View |
 | IRFB9N60APBF-VB#C19711254VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹164.37 · 18 in stock | View |
 | FQP10N60C-VB#C19711299VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹164.28 · 20 in stock | View |
