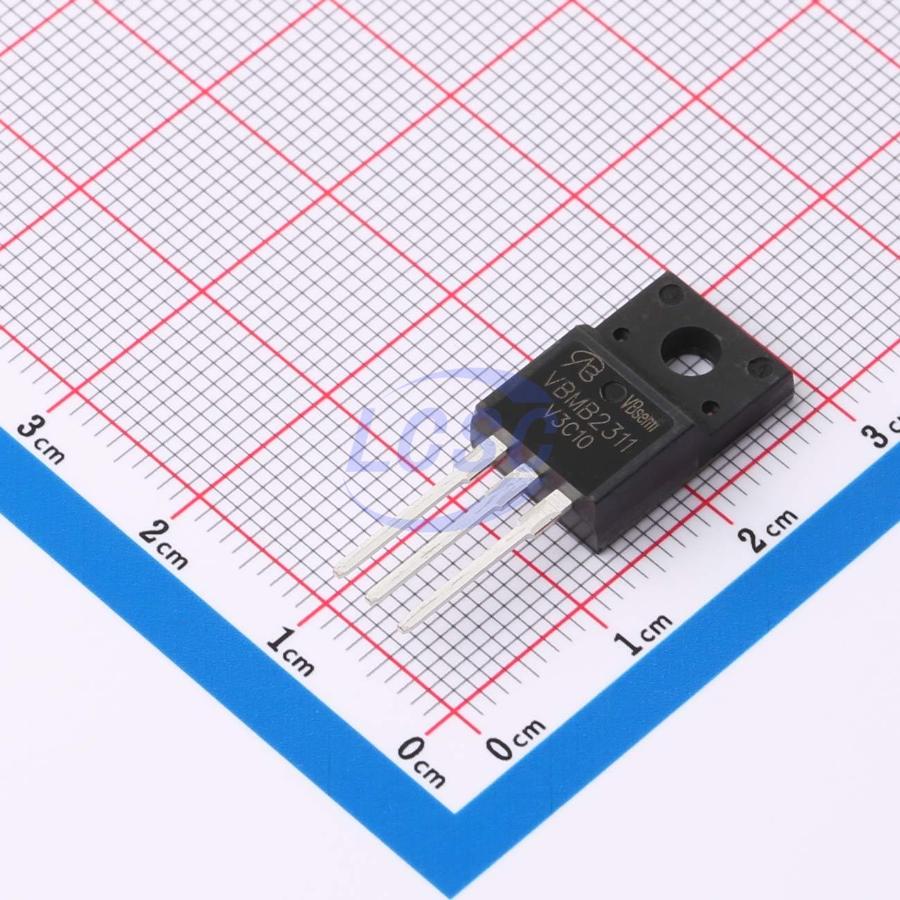

VBMB2311
30V 55A 45W 13mΩ@10V 1 P-Channel P-Channel TO-220F Single FETs, MOSFETs RoHS
TO-220FROHS CompliantActive
MOSFET P-CH 30V 55A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB2311
- Store part #
- C7541198
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C7541198
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.64 | ₹92.64 |
| 10+ | ₹75.41 | ₹754.10 |
| 50+ | ₹66.59 | ₹3,329.50 |
| 100+ | ₹57.99 | ₹5,799.00 |
| 500+ | ₹52.93 | ₹26,465.00 |
| 1,000+ | ₹50.21 | ₹50,210.00 |
1 × ₹92.64
₹92.64
excl. GST
₹109.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB2311
₹92.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 765pF
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 4.5nF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 315pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
Key features
- Compliant with RoHS Directive 2002/95/EC
- Available in RoHS-compliant TO-220 FULLPAK P-channel MOSFET
