VISHAYDatasheet (PDF)

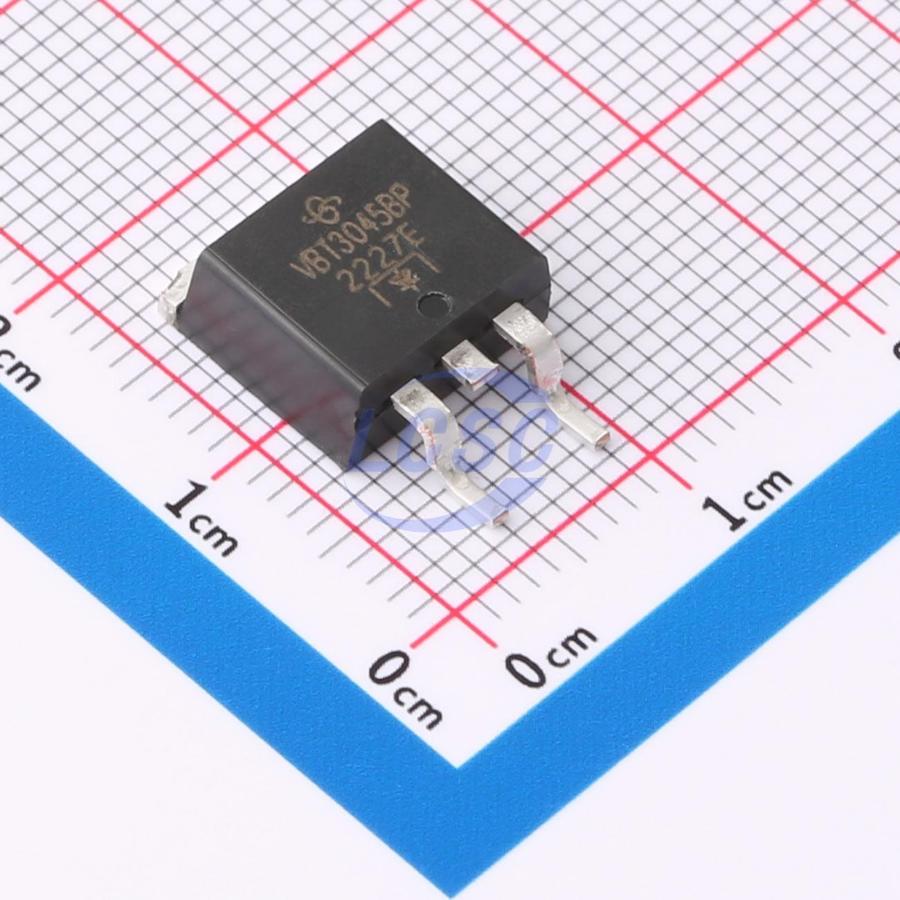

VBT3045BP-E3/8W
Diode 1 Independent 45V 30A Surface Mount TO-263AB(D2PAK)
TO-263AB(D2PAK)ROHS3 CompliantActive
DIODE SCHOTTKY 45V TO-263AB(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- VBT3045BP-E3/8W
- Store part #
- C3758762
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,016 in stock
#C3758762
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.81 | ₹193.81 |
| 10+ | ₹159.14 | ₹1,591.40 |
| 30+ | ₹140.19 | ₹4,205.70 |
| 100+ | ₹118.82 | ₹11,882.00 |
| 500+ | ₹109.23 | ₹54,615.00 |
| 800+ | ₹104.86 | ₹83,888.00 |
1 × ₹193.81
₹193.81
excl. GST
₹228.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
VBT3045BP-E3/8W
₹193.81 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 700mV@30A
- Reverse Leakage Current (Ir)
- 2mA@45V
- Current - Rectified
- 30A
- Non-Repetitive Peak Forward Surge Current
- 200A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.936 g
Overview
Applications
- For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias.
Key features
- Trench MOS Schottky technology
- Low forward voltage drop, low power losses
- High efficiency operation
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245℃
- TJ = 200℃ max. in solar bypass application
- RoHS COMPLIANT
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBT3045BP-E3/4W#C222520VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 1 | ₹219.26 · 1 in stock | View |
| VBT4045BP-E3/4W#C5989943VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 58 | ₹321.77 · 58 in stock | View | |
| V40DL45BP-M3/I#C6737392VISHAY · TO-263AC | VISHAY | TO-263AC | On request | ₹179.65 · 0 in stock | View | |
 | VB30100S-E3/8W#C2983560VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 735 | ₹231.96 · 735 in stock | View |
 | HBR30L150YD#C7428013NH · TO-263 | NH | TO-263 | 635 | ₹43.06 · 635 in stock | View |
