VBsemi ElecDatasheet (PDF)

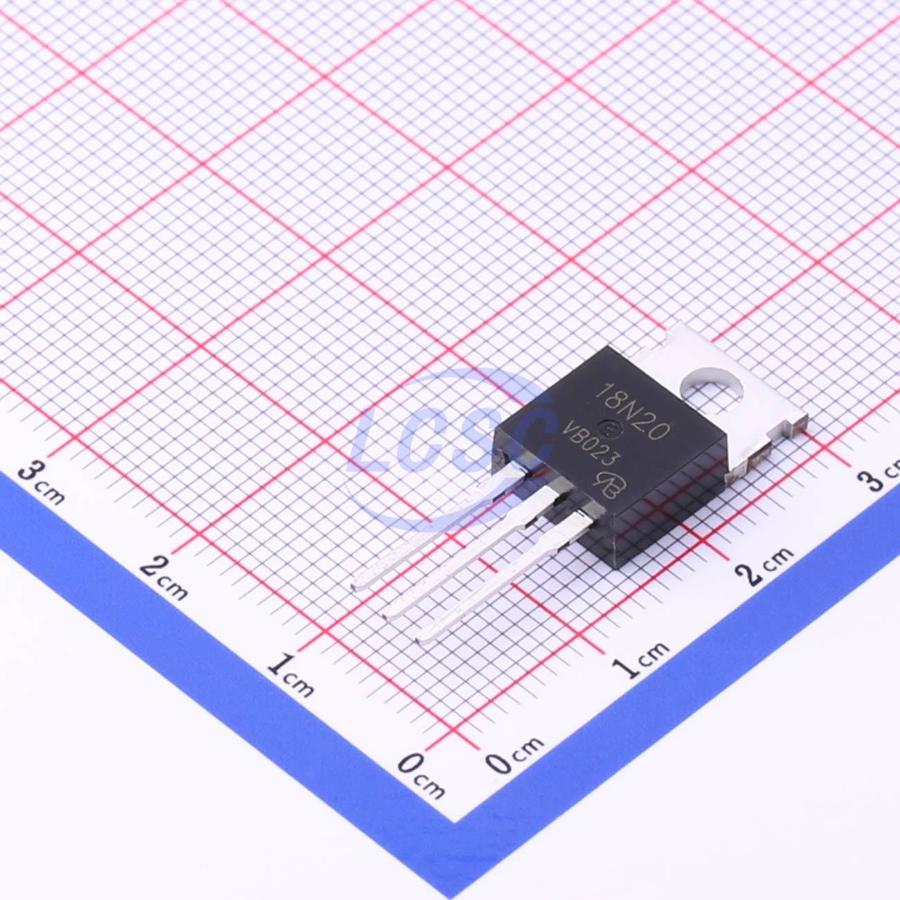

VBZM18N20
N-Channel 200V 20A 125W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 200V 20A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM18N20
- Store part #
- C700705
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C700705
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.09 | ₹135.09 |
| 10+ | ₹109.76 | ₹1,097.60 |
| 50+ | ₹97.19 | ₹4,859.50 |
| 100+ | ₹84.62 | ₹8,462.00 |
| 500+ | ₹77.08 | ₹38,540.00 |
| 1,000+ | ₹73.31 | ₹73,310.00 |
1 × ₹135.09
₹135.09
excl. GST
₹159.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM18N20
₹135.09 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 110mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
Applications
- Primary-side switch - N-channel MOSFET
Key features
- Trench power MOSFET
- Junction temperature 175°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
