VBsemi ElecDatasheet (PDF)

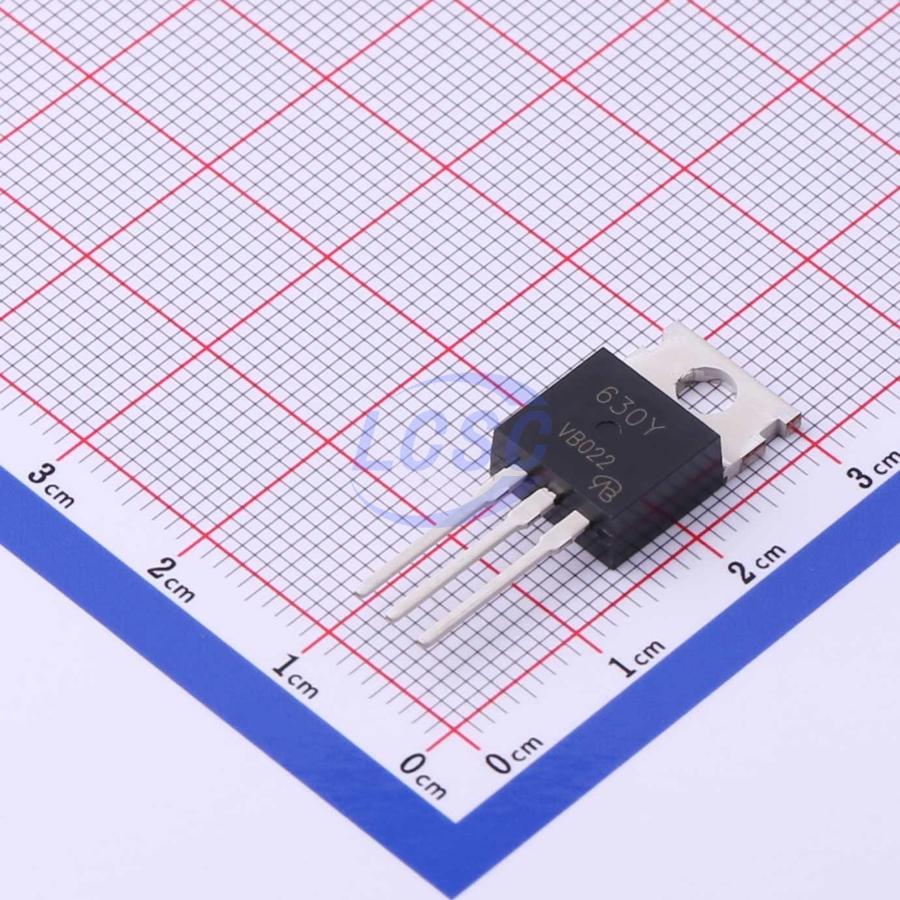

VBZM630Y
N-Channel 200V 10A 110W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 200V 10A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM630Y
- Store part #
- C700719
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C700719
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.90 | ₹90.90 |
| 10+ | ₹74.02 | ₹740.20 |
| 50+ | ₹61.22 | ₹3,061.00 |
| 100+ | ₹52.88 | ₹5,288.00 |
| 500+ | ₹47.80 | ₹23,900.00 |
| 1,000+ | ₹45.15 | ₹45,150.00 |
1 × ₹90.90
₹90.90
excl. GST
₹107.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM630Y
₹90.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 110W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
Key features
- Surface mount
- Low-profile through-hole
- Available in tape and reel
- Dynamic dV/dt rating
- 150 °C operating temperature
- Fast switching
- Fully avalanche rated
