AnaSemDatasheet (PDF)

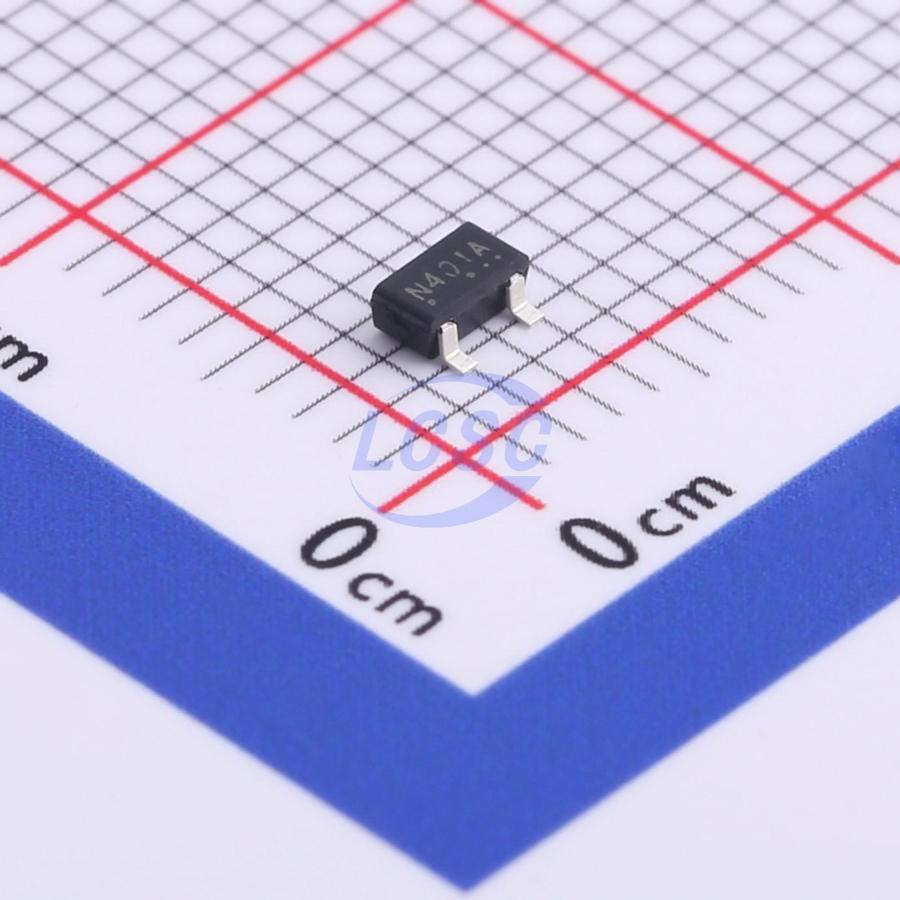

VDA4010NTA
200us 700mV~6V 1 SOT-23 Supervisors RoHS
SOT-23ROHS CompliantActive
Low voltage, Low power, High detect accuracy CMOS Voltage Detector
- Manufacturer
- AnaSem
- Manufacturer part #
- VDA4010NTA
- Store part #
- C697849
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,230 in stock
#C697849
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.55 | ₹85.50 |
| 100+ | ₹6.83 | ₹683.00 |
| 300+ | ₹5.97 | ₹1,791.00 |
| 3,000+ | ₹5.32 | ₹15,960.00 |
| 6,000+ | ₹4.80 | ₹28,800.00 |
| 9,000+ | ₹4.54 | ₹40,860.00 |
10 × ₹8.55
₹85.50
excl. GST
₹100.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VDA4010NTA
₹85.50 for 10 + GST
Specifications
- output type
- Open-drain
- Reset Timeout
- 200us
- Operating Temperature
- -40℃~+85℃
- standby current
- 600nA
- Voltage - Supply
- 700mV~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The VDA series are voltage detectors with low voltage, low power consumption and high accuracy. The accuracy of the detection voltage is detected based on a voltage reference of high accuracy that the temperature coefficient is controlled. The detection voltage is made in high accuracy by using the laser trimming technology.
Applications
- Reset of microprocessor
- Power - on reset of system
- Charge detection of battery
- Battery back - up of memory
- Monitoring of battery life time
Key features
- Detection voltage range: 0.8V ~ 6.0V (selectable with a step of 0.1V)
- Operating voltage range: 0.7V ~ 6.0V
- High accuracy detection voltage: ±1% (VDET = 1.8V ~ 6.0V) / ±2% (VDET = 0.8V ~ 1.7V)
- Detection voltage temperature characteristics: Typ. ±20ppm/°C (VDET = 1.8V ~ 6.0V)
- Output types: CMOS or N-channel open drain
- Low current consumption: Typ. 0.6μA (VIN = 1.5V)
- Operating temperature range: -40°C ~ +85°C
- Small package: SOT - 23 (2.9×2.8×1.1mm)
